Standard Flat Spray Nozzles
Standard flat spray nozzles offer a tapered-edge spray pattern up to 110° that provides even coverage when multiple nozzles are used side-by-side in a header or manifold. Some varieties are available with an integral strainer.
Based on your current criteria, all products belong to this model
Model

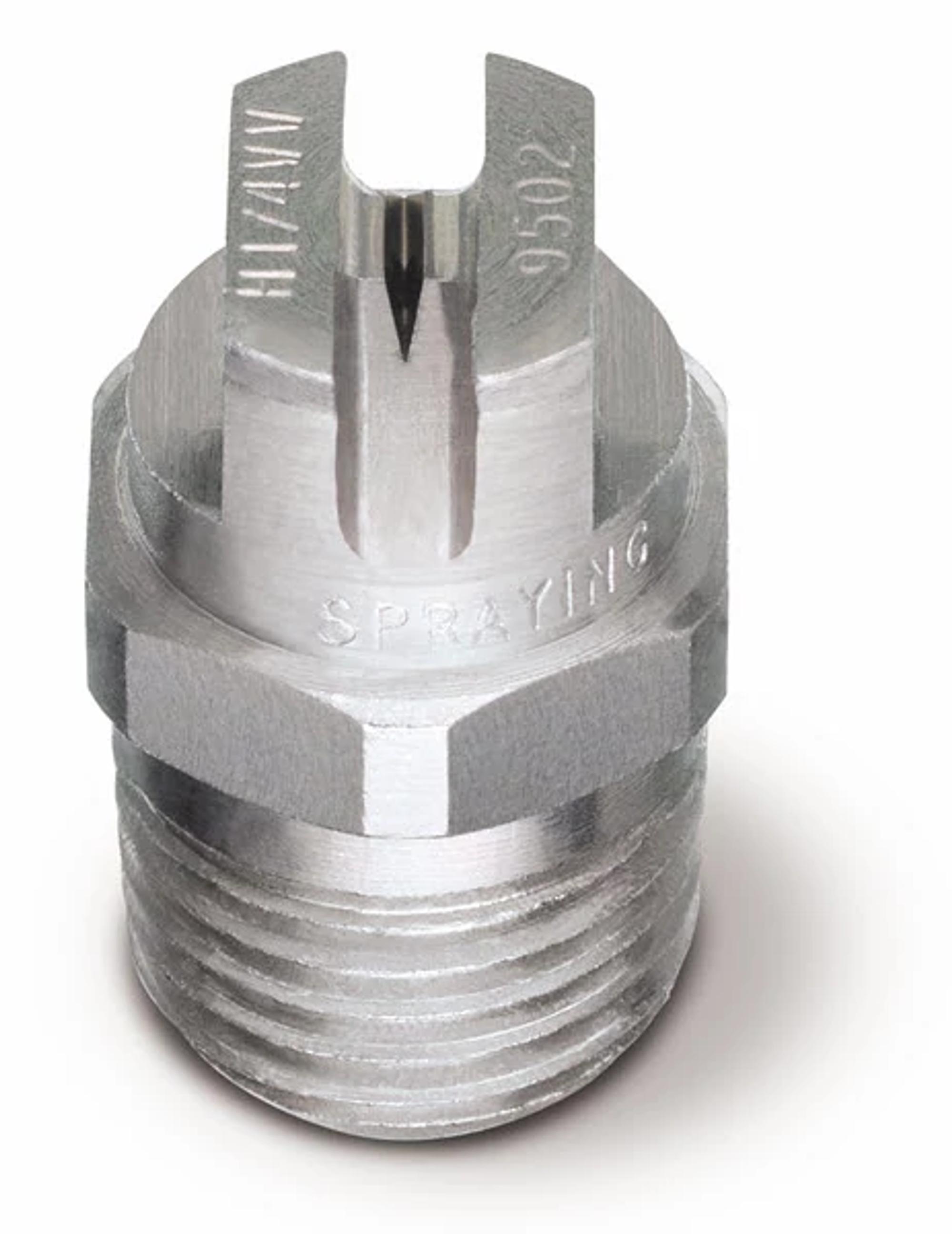

H-VV, H-DT
VeeJet® Flat Spray Nozzles - Low Flow
General information
- Flat spray nozzles are ideal for use in spray headers or manifolds. They produce a fan-type, tapered-edge spray pattern to ensure even coverage when multiple nozzles are used in a series
- Solid stream (0° spray angle) available to achieve highest impact of any nozzle type
- Consistent performance over the industry's largest range of flow rates and pressures
- Some models feature an integral strainer
- High pressure/high impact versions available
- Quick-connect versions available to speed maintenance and installation
H1/4VV-SS11001VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|01|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|110°
H1/8VV-SS11001VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/8 in|01|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|110°
H1/4VV-SS11002VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|02|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|110°
H1/4VV-SS11003VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|03|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|110°
H1/4VV-SS11004VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|04|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|110°
H1/4VV-SS11010VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|10|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|110°
H1/4VV-SS8005VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|05|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|80°
H1/4VV-SS11005VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|05|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|110°
H1/8VV-11001VeeJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/8 in|01|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 7 and 14 days|110°
H1/4VV-SS6502VeeJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|02|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain)|Between 5 and 7 days|65°
