The volume of liquid passing through a nozzle (also called the nozzle’s capacity) is typically measured in gallons per minute or liters per minute. Flow rate is affected by liquid pressure and other factors, including the specific gravity and viscosity of the liquid being sprayed.
> _For more information on liquid flow rate or nozzle capacity, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Flow Rate

Estimated Ready to Ship

The operating pressure as published in our catalog.

> _For more information on how liquid pressure affects spray performance, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Pressure

Many hydraulic spray nozzles include a numeric capacity size in the part number. Capacity size is often related to the flow rate of the nozzle at the rated spray pressure for that nozzle. For example, the capacity size for a 1/4HH10 FullJet® nozzle is “10”, which reflects a 1.0 gpm flow rate at 10 psi.

Capacity Size

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

Specific gravity is the ratio of the density of a fluid compared to the density of water. It must be considered to properly calculate flow rate.

 **Alternatively**, if you don't know the specific gravity you may select the **Liquid Type** from a list of commonly-sprayed liquids and temperatures.

### Liquid Type

 The type of liquid sprayed and its temperature affects the specific gravity of the liquid and in turn affects the flow rate. The default liquid is water, with a specific gravity of 1.

> _For more information on how specific gravity and other characteristics such as temperature, viscosity and surface tension affect spray performance, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Specific Gravity

The angle of the spray pattern as it emerges from the nozzle orifice, measured in degrees. Narrower spray angles provide less coverage of the sprayed surface. Wider spray angles provide greater coverage of the sprayed surface. Solid stream nozzles have a 0° spray angle.
> _For more information on spray performance characteristics including spray angle and spray coverage, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Spray Angle

Different nozzle types are _**“rated”**_ at various pressures, depending on the function of the nozzle and the pressure at which a spray pattern is fully formed. The angle of the spray pattern as it emerges from the nozzle, when spraying at the rated pressure orifice, can serve as a reference point for comparing different nozzles.

Spray Angle at Rated Pressure

Model

Anti-Bearding Robotic Tungsten Carbide Tip

https://ssco-portal-aais-usc.search.windows.net/indexes('prod-ind-main-us-en-product-facets')/$metadata#docs(*)

Even Spray, Clog-Resistant Tungsten Carbide Tip

Robotic Tungsten Carbide Tip

Heavy Edge Tungsten Carbide Tip

Even Spray, Clog-Resistant, Anti-Bearding Tungsten Carbide Tip

High Pressure Tungsten Carbide Tip

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

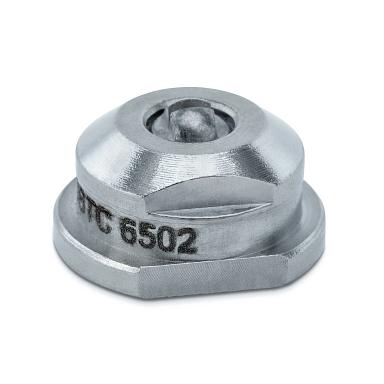

* Special tip design guides spray solution away from the orifice and reduces clogging caused by caking and build-up
* Tips have flats to ensure accurate spray pattern alignment every time
* Designed for use in applications where the spray solution tends to dry quickly, shorter tip holder than ROBTC tips
* Maximum pressure: 4000 psi (276 bar)
* Stainless steel body with tungsten carbide orifice
* Ideal for robotic equipment in precise, repetitive spraying applications and operations where overspray is undesirable

SprayFinder®

Model

Capacity Size

Spray Angle at Rated Pressure

Tungsten Carbide Flat Spray Nozzles
