In-Line Hollow Cone Nozzles
In-line hollow cone nozzles have a hole on the inlet side of the nozzle through which liquid passes into a whirlchamber which spins the liquid at high speed. The rotation causes the liquid to exit the orifice in a hollow cone pattern. The direction of the spray is the same as the liquid inlet.
Based on your current criteria, all products belong to this model
Model
BA

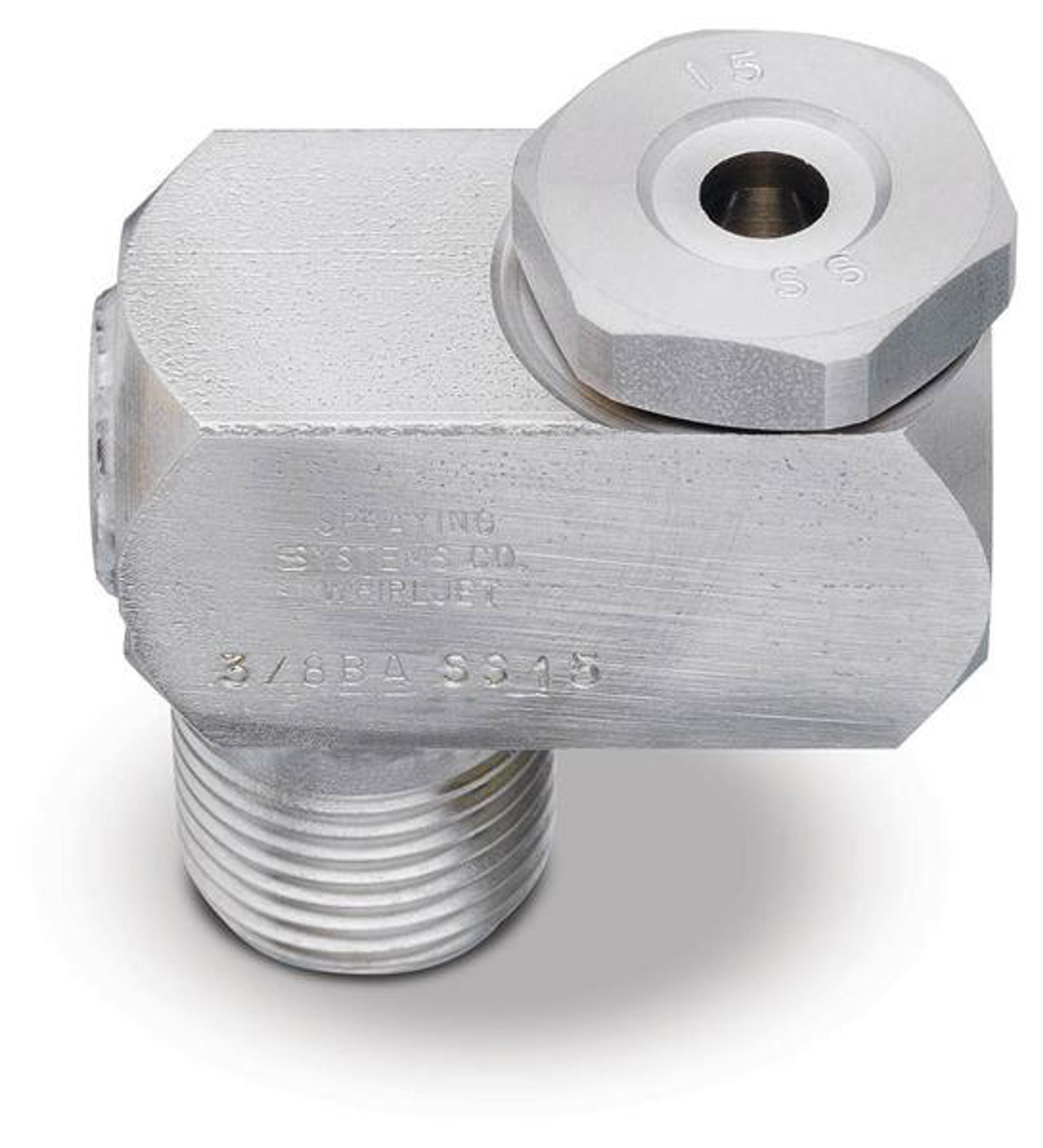

WhirlJet® Hollow Cone Nozzles - Offset Style
General information
- Hollow cone spray pattern
- In-line versions ideal for dust control in mining operations
- BD versions have a lower profile projection for installation in a tee or pipe header
- In-line BDM features recessed orifice area to protect from damage; self-locking cap to prevent loss due to vibration; fiberglass-reinforced nylon inlet body
- BA offset style ideal for installations with physical space limitations
- Spray angles: Standard – 43° to 94°, Wide – 102° to 125°
- Deflected spray versions available with 120°, 150° and 180°included angle of spray at 10 psi (0.7 bar)
- Uniform spray distribution from .11 to 38 gpm (.41 to 145 lpm)
- Operating pressures up to 500 psi (35 bar)
1/2BA-309SS60WhirlJet® Nozzle, 309 Stainless Steel
309 Stainless Steel|Threaded (Male NPT)|1/2 in|60|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days
1/2BA-309SS50WhirlJet® Nozzle, 309 Stainless Steel
309 Stainless Steel|Threaded (Male NPT)|1/2 in|50|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days
1/2BA-309SS40WhirlJet® Nozzle, 309 Stainless Steel
309 Stainless Steel|Threaded (Male NPT)|1/2 in|40|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days
1/2BA-309SS30WhirlJet® Nozzle, 309 Stainless Steel
309 Stainless Steel|Threaded (Male NPT)|1/2 in|30|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days
1/2BA-309SS25WhirlJet® Nozzle, 309 Stainless Steel
309 Stainless Steel|Threaded (Male NPT)|1/2 in|25|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days
3/8BA-309SS15WhirlJet® Nozzle, 309 Stainless Steel
309 Stainless Steel|Threaded (Male NPT)|3/8 in|15|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days
1/2BA-SS40WhirlJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/2 in|40|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/2BA-SS50WhirlJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/2 in|50|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/2BA-SS30WhirlJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/2 in|30|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
3/8BA-309SS5WhirlJet® Nozzle, 309 Stainless Steel
309 Stainless Steel|Threaded (Male NPT)|3/8 in|5|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days
