In-Line Hollow Cone Nozzles
In-line hollow cone nozzles have a hole on the inlet side of the nozzle through which liquid passes into a whirlchamber which spins the liquid at high speed. The rotation causes the liquid to exit the orifice in a hollow cone pattern. The direction of the spray is the same as the liquid inlet.
Based on your current criteria, all products belong to this model
Model
8686
DeflectoJet® Deflected Hollow Cone Nozzles - Wide Angle Spray
General information
- Hollow cone spray pattern
- Spray angles: Standard – 43° to 94°, Wide – 102° to 125°
- Deflected spray versions available with 120°, 150° and 180°, included angle of spray at 0.7 bar
- Uniform spray distribution from .41 to 145 lpm
- Operating pressures up to 7 bar
8686-3/8-SS4-180DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|3/8 in|4|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|180°
8686-1/8-SS.37-180DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/8 in|.37|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|180°
8686-1/4-SS1-120DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|1|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|120°
8686-1/4-SS1-180DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|1|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|180°
8686-3/8-SS3-180DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|3/8 in|3|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|180°
8686-1/8-SS.37-120DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/8 in|.37|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|120°
8686-3/8-SS5-180DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|3/8 in|5|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|180°
8686-1/4-SS2.5-180DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|2.5|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|180°

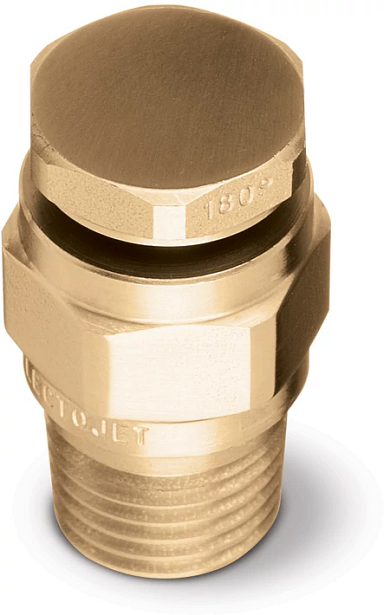

8686-1/8-.37-180DeflectoJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/8 in|.37|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 3 and 5 days|180°
8686-3/8-SS5-120DeflectoJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|3/8 in|5|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|2 days or less|120°
