The volume of liquid passing through a nozzle (also called the nozzle’s capacity) is typically measured in gallons per minute or liters per minute. Flow rate is affected by liquid pressure and other factors, including the specific gravity and viscosity of the liquid being sprayed.
> _For more information on liquid flow rate or nozzle capacity, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Flow Rate

Inlet Connection Size

The operating pressure as published in our catalog.

> _For more information on how liquid pressure affects spray performance, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Pressure

Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
> _For more information on nozzle materials, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Materials

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

Specific gravity is the ratio of the density of a fluid compared to the density of water. It must be considered to properly calculate flow rate.

 **Alternatively**, if you don't know the specific gravity you may select the **Liquid Type** from a list of commonly-sprayed liquids and temperatures.

### Liquid Type

 The type of liquid sprayed and its temperature affects the specific gravity of the liquid and in turn affects the flow rate. The default liquid is water, with a specific gravity of 1.

> _For more information on how specific gravity and other characteristics such as temperature, viscosity and surface tension affect spray performance, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Specific Gravity

The angle of the spray pattern as it emerges from the nozzle orifice, measured in degrees. Narrower spray angles provide less coverage of the sprayed surface. Wider spray angles provide greater coverage of the sprayed surface. Solid stream nozzles have a 0° spray angle.
> _For more information on spray performance characteristics including spray angle and spray coverage, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Spray Angle

Most nozzles are available with NPT or BSPT connections. Other threaded connections are available on select nozzles and additional connection types, such as flange and quick-connect, are also common. Some nozzles are also available with sanitary connections.

Inlet Connection Type

Model

Outlet Connection Size

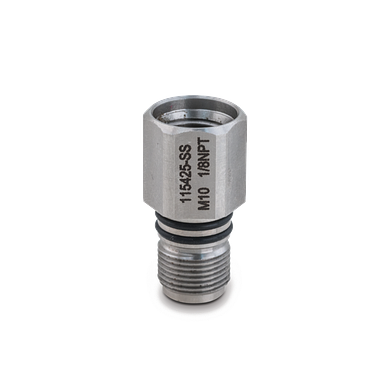

UltraStream® Trimming Feed Converter

https://ssco-portal-aais-usc.search.windows.net/indexes('prod-ind-main-au-en-product-facets')/$metadata#docs(*)

38171 Single Orifice

38170 Single Orifice with Strainer

UltraStream® Single-Orifice Nozzle

48461 Single Ruby Orifice

72242 Single Ruby Orifice

39610 Single Ruby Orifice Swivel

56795-2 Dual Ruby Orifice

58035-2 Dual Ruby Orifice

UltraStream® Dual Orifice Nozzle

UltraStream® Air Barrier Adapter

UltraStream® Swivel Adapter

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Converts trimming feed base with 1/8" base for nozzle with M10x0.75 threads
* 303 stainless steel body

SprayFinder®

Operating Conditions

Model

Web Trimming
