QuickJet® Full Cone Nozzles
QuickJet full cone spray nozzles offer ¼-turn convenience for spray tip installation and removal, making maintenance quick and easy. Metal or chemically-resistant ProMax® polypropylene nozzles are available in a wide variety of spray angles and flow rates.
Based on your current criteria, all products belong to this model
Model

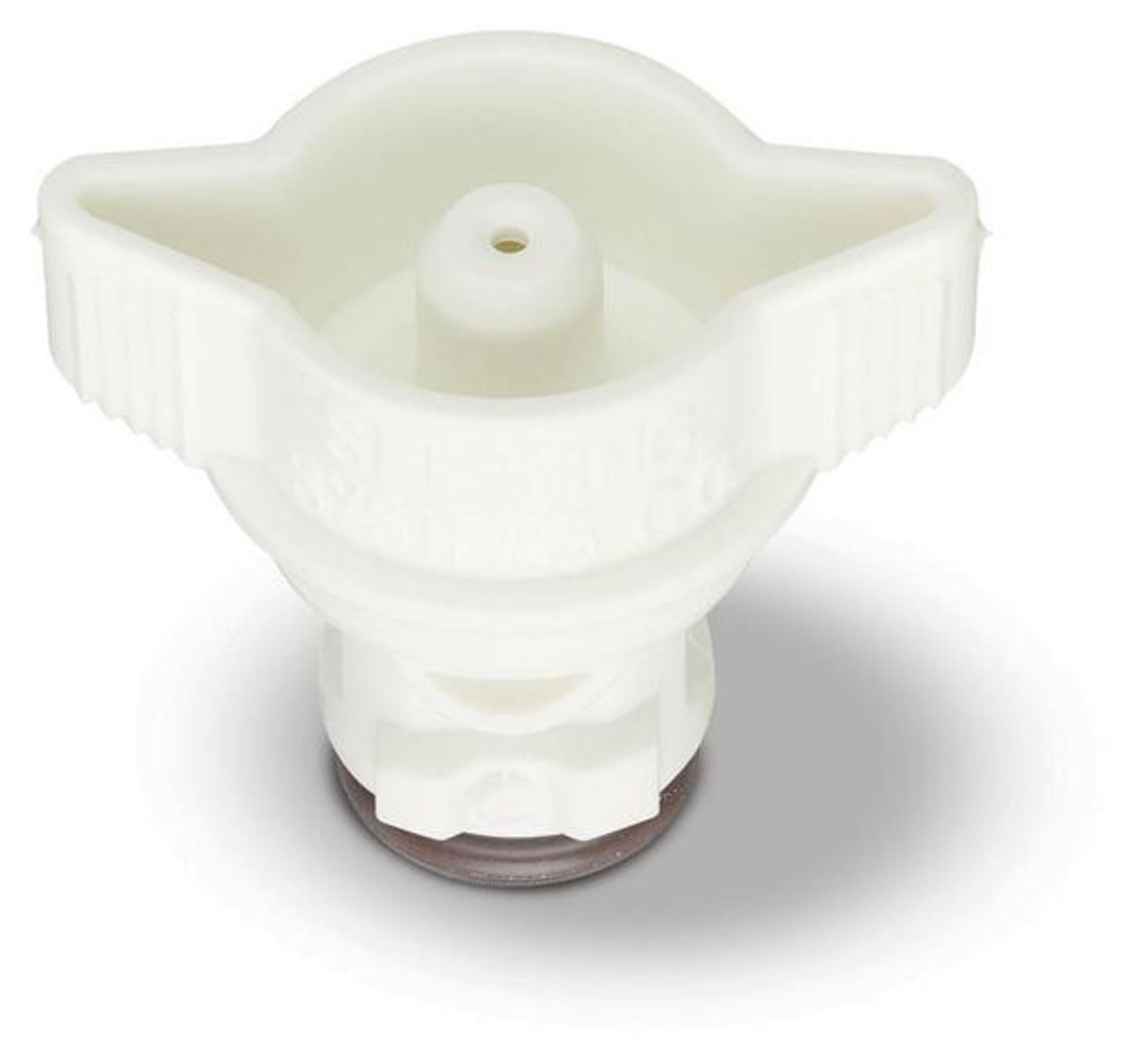

QPHA-W
ProMax® Quick FullJet® Quick-Connect Nozzle Systems - Wide Angle Spray
General information
- Reduce maintenance time – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips with automatic alignment
- Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced
- Spray angles: Standard – 43° to 91°, Narrow – 15° or 30°, Wide – 102° to 120°
- Uniform spray distribution from .10 to 19.4 gpm (.38 to 72 lpm)
- Operating pressures up to 300 psi (20 bar)
- Choice of metal or ProMax materials. ProMax features:
- ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 150 psi (10 bar)
- Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
- Optional external O-ring protects nozzle from contaminants
- Tips are color-coded for easy flow rate identification
QPHA-2.8WQuick FullJet® Nozzle, ProMax® Polypropylene
Tip|Quick-connect|ProMax® Quick FullJet®, ProMax® QuickJet®|2.8W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
QPHA-5.6WQuick FullJet® Nozzle, ProMax® Polypropylene
Tip|Quick-connect|ProMax® Quick FullJet®, ProMax® QuickJet®|5.6W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
QPHA-10WQuick FullJet® Nozzle, ProMax® Polypropylene
Tip|Quick-connect|ProMax® Quick FullJet®, ProMax® QuickJet®|10W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
QPHA-4.3WQuick FullJet® Nozzle, ProMax® Polypropylene
Tip|Quick-connect|ProMax® Quick FullJet®, ProMax® QuickJet®|4.3W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
QPHA-14WQuick FullJet® Nozzle, ProMax® Polypropylene
Tip|Quick-connect|ProMax® Quick FullJet®, ProMax® QuickJet®|14W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
QPHA-8WQuick FullJet® Nozzle, ProMax® Polypropylene
Tip|Quick-connect|ProMax® Quick FullJet®, ProMax® QuickJet®|8W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
QPHA-12WQuick FullJet® Nozzle, ProMax® Polypropylene
Tip|Quick-connect|ProMax® Quick FullJet®, ProMax® QuickJet®|12W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4QPPA+QPHA-2.8WQuick FullJet® Nozzle, ProMax® Polypropylene
Nozzle Assembly|Threaded (Male NPT) + Quick-Connect|1/4 in|ProMax® Quick FullJet®, ProMax® QuickJet®|2.8W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4QPPA+QPHA-5.6WQuick FullJet® Nozzle, ProMax® Polypropylene
Nozzle Assembly|Threaded (Male NPT) + Quick-Connect|1/4 in|ProMax® Quick FullJet®, ProMax® QuickJet®|5.6W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4QPPA+QPHA-4.3WQuick FullJet® Nozzle, ProMax® Polypropylene
Nozzle Assembly|Threaded (Male NPT) + Quick-Connect|1/4 in|ProMax® Quick FullJet®, ProMax® QuickJet®|4.3W|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
