Ideal for: edge trimming, cutting and slitting
* Single orifice suitable with most paper grades
* Powerful, needle-like solid stream spray from .04 to 1.3 gpm (.17 to 4.9 lpm)
* Features a shrouded orifice for protection, ease of alignment and help in guiding buildup away from the moving web
* Operating pressures up to 1000 psi (70 bar)

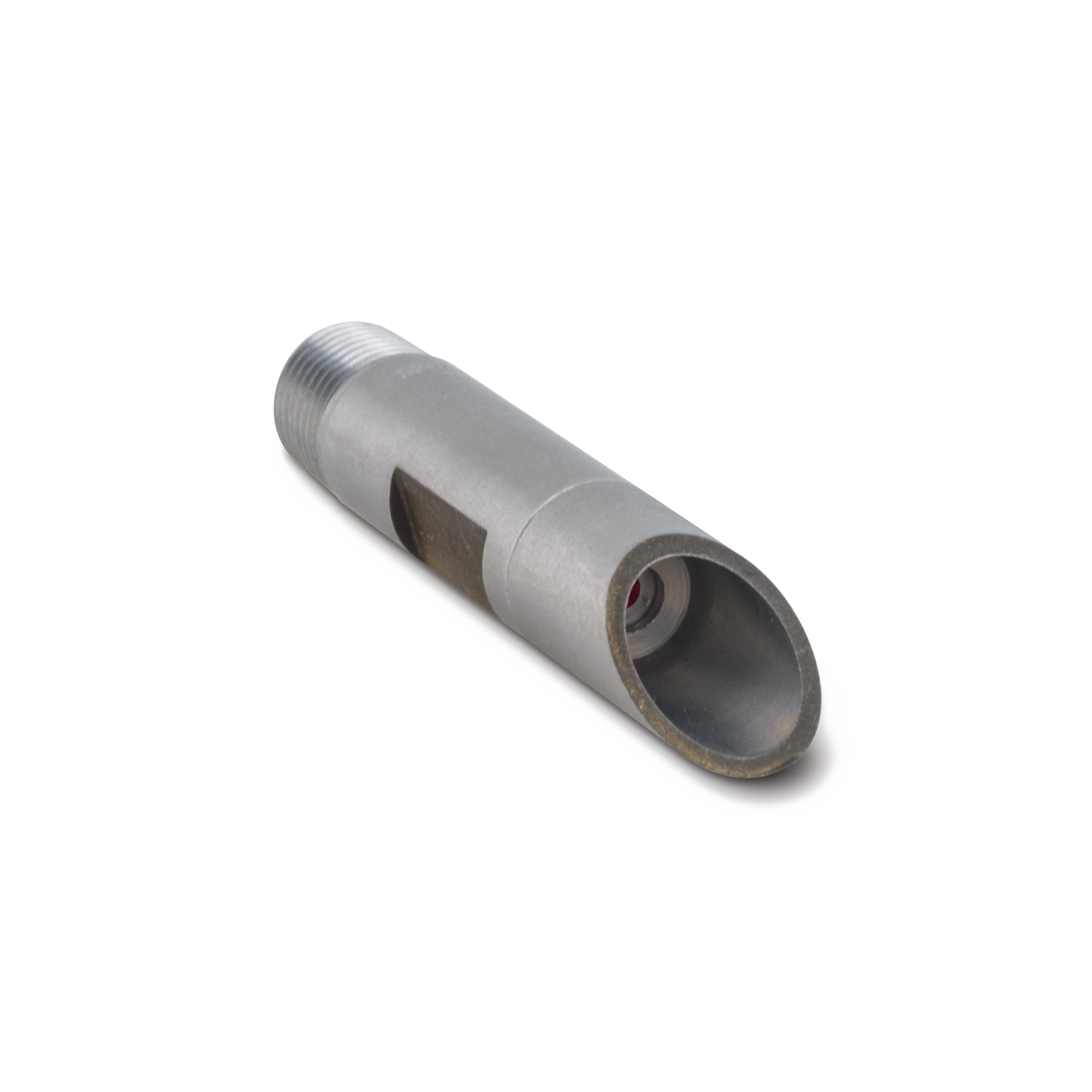

72242 Single Ruby Orifice

Web Trimming

72242 Single Ruby Orifice, 72242
