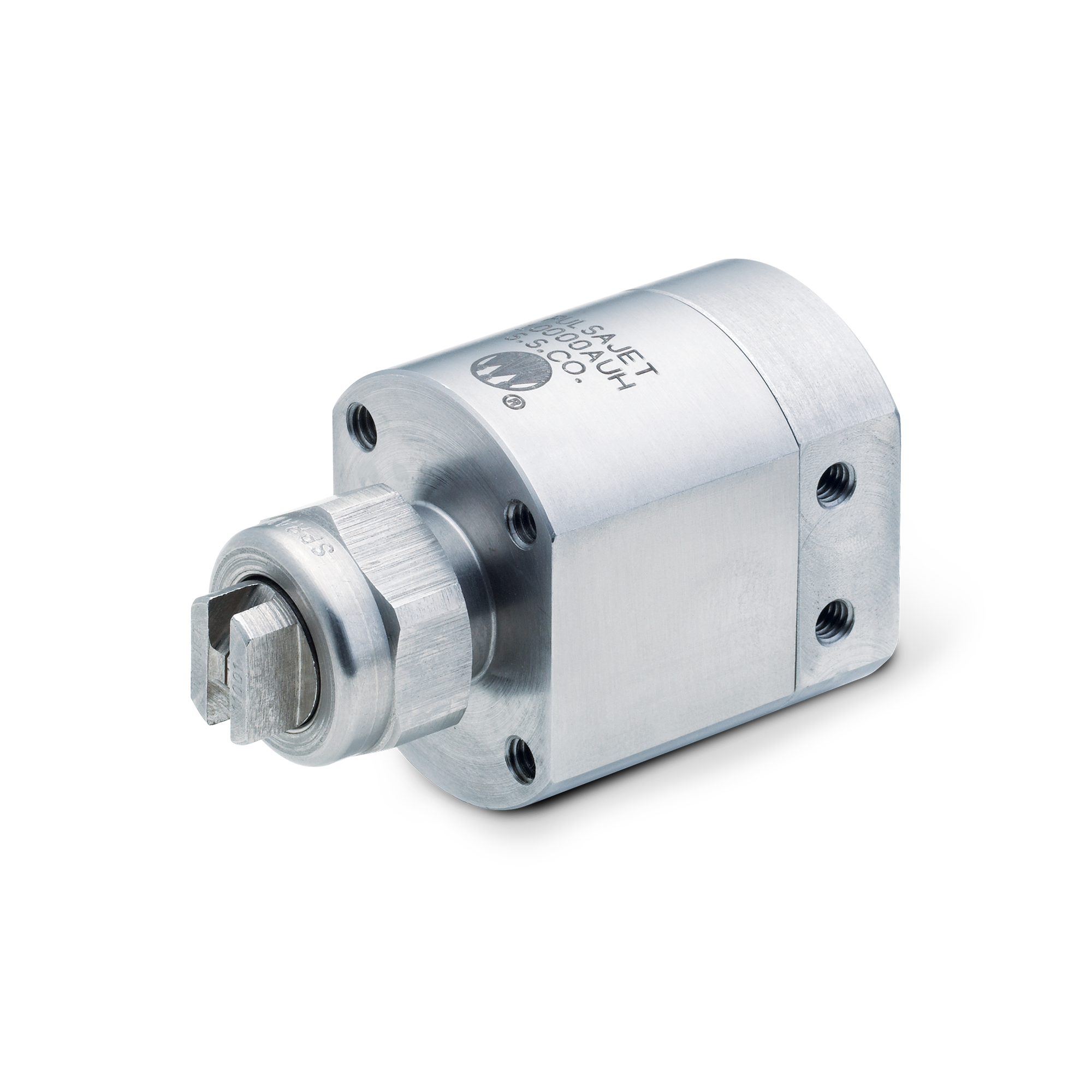

PulsaJet® Electrically-Actuated Hydraulic Nozzle with Flow up to 0.47 gpm, Max Speed 15,000 cpm, AA10000AUH-03
Model
AA10000AUH-03
PulsaJet® Electrically-Actuated Hydraulic Nozzle with Flow up to 0.47 gpm, Max Speed 15,000 cpm
Model Specifications
Maximum Operating Speed10,000 cpm
Product TypeNozzle
Voltage24 V
Maximum Pressure With Advanced AutoJet Controllers17 bar
Maximum Pressure7 bar
Material CompositionStainless Steel, Viton® or EPDM seals, PPS and PEEK
Maximum Operating Speed With Advanced AutoJet Controllers15,000 cpm
Maximum Flow1.8 l/min
Model Configurator
Step 1 of 1
Which inlet connection type fits your system?
Most nozzles are available with NPT or BSPT connections. Other threaded connections are available on select nozzles and additional connection types, such as flange and quick-connect, are also common. Some nozzles are also available with sanitary connections.
Make selections to see matching products
General Information
Description
- Typical flow range: 0.0017 - 0.47 gpm (0.006 - 1.8 lpm)
- Construction: Stainless steel, Viton® or EPDM seals, PPS and PEEK
Specification Summary
Material Composition
Stainless Steel, Viton® or EPDM seals, PPS and PEEK
Maximum Flow
1.8 l/min
Maximum Operating Speed
10,000 cpm
Maximum Operating Speed With Advanced AutoJet Controllers
15,000 cpm
Maximum Pressure
7 bar
Maximum Pressure With Advanced AutoJet Controllers
17 bar
Product Type
Nozzle
Voltage
24 V
