UniJet® Full Cone Nozzle Systems

UniJet® Full And Hollow Cone Nozzle Systems - Disk-Type - Spray Tip

UniJet® Full Cone Nozzle Systems - Wide Angle Spray - One-piece Tip/Retainer

UniJet® Full Cone Nozzle Systems - Wide Angle Spray

UniJet® Full And Hollow Cone Nozzle Systems - Disk-Type - Spray Tip + Body

The range of operating pressures published in our catalog.
> _The catalog offers flow data only for selected operating pressures. Certain nozzles may be able to operate outside the pressure range shown in the catalog. Consult your local Spraying Systems Co. representative to ensure safe operation._

Liquid Pressure Range

A nozzle’s spray pattern is the shape the liquid forms after it emerges from the orifice. Nozzles are precision engineered to produce specific spray patterns such as full cone, flat spray, hollow cone and solid stream patterns. Different spray patterns are useful for different types of spray operations.
> _For more information about typical applications for various spray patterns, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Spray Pattern

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Quick-connect nozzles reduce maintenance time –bodies remain on pipe/header
* Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced; tips fit on male or female bodies
* Solid cone-shaped spray pattern with round impact area or cone-shaped spray pattern with square-like impact area for coverage of rectangular areas or spray zones
* Spray angles: Standard – 43° to 91°, Wide – 112° to 120°
* Uniform spray distribution from .08 to 7.4 gpm (.3 to 28 lpm)
* Operating pressures up to 300 psi (20 bar)

UniJet® Full Cone Nozzle Systems - Square Spray

UniJet® full cone spray tips and nozzle bodies provide the convenience of a nozzle that can be disassembled for maintenance or tip replacement. Standard angle, wide angle and square sprays are available for a variety of cleaning, coating and cooling operations.

UniJet® Full Cone Nozzles

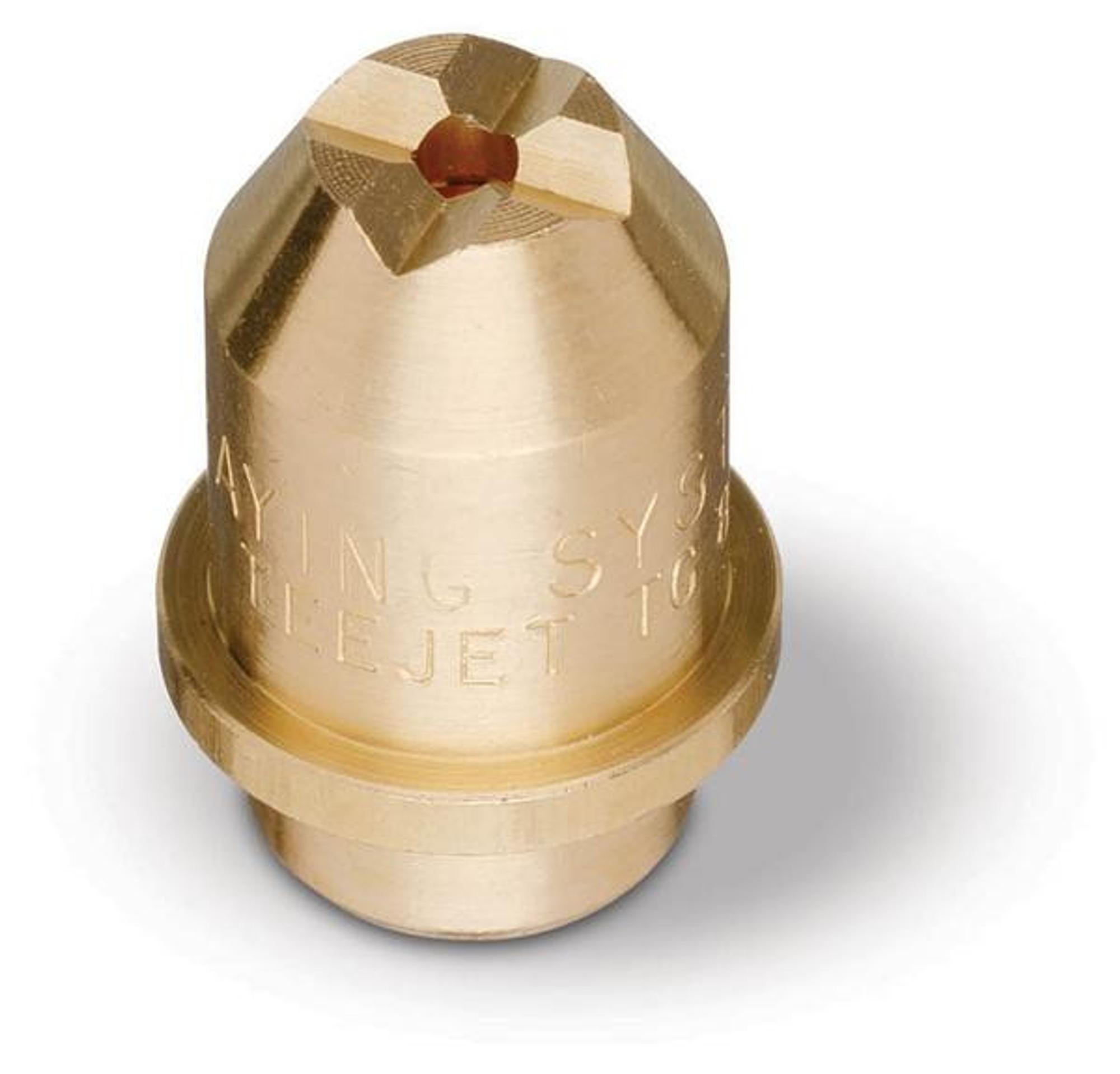

UniJet® Full Cone Nozzle Systems - Square Spray, TG-SQ

Model Specifications

What type of product are you looking for?

General Information

Description

Specification Summary

Downloads

Documents

Alternative Models
