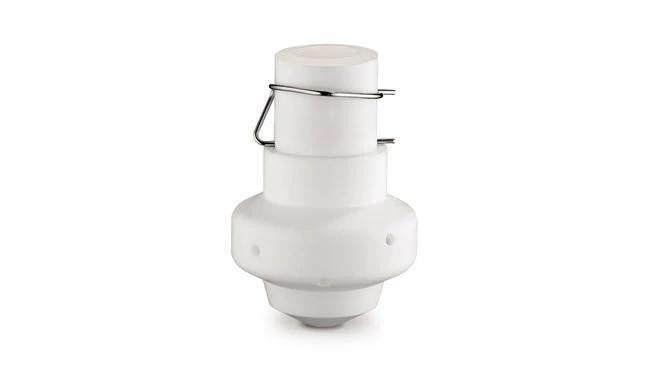

TankJet® Nozzle, 28500E-R-20-32-TEF
+ 2
General Information
Description
These sanitary, rotating nozzles resist harsh chemicals and provide low-pressure cleaning and rinsing of tanks, vessels and containers used for processing food, pharmaceuticals and chemicals.
- Rotating nozzles for use with sanitary tubing resist harsh chemicals and provide excellent cleaning and more impact than static spray balls.
- 28500-R nozzles conform to 3-A Sanitary Standard 78 for spray cleaning devices to remain in place (does not apply to horizontal mounting).
- Well-suited for clean-in-place systems; no motor source is needed as the reactionary force of the cleaning liquid rotates the spray head.
- Threadless, tapered design promotes self-draining to prevent build-up on nozzle.
- 28500-R rotating spray head is easily removable from the body for inspection and maintenance.
Specification Summary
Impact Group
Medium Impact
Medium Impact
Inlet Connection Type
Slip Collar Pin Connection
Slip Collar Pin Connection
Liquid Flow Rate Range
34 - 195 l/min
9 - 51.4 gpm
Material Composition
Body, saucer & spacer – PTFE fluoropolymer resin; Locking pin – 316 stainless steel
Body, saucer & spacer – PTFE fluoropolymer resin; Locking pin – 316 stainless steel
Maximum Recommended Tank Diameter
Up to 5.5 m
Up to 18 ft
Maximum Temperature
93 °C
200 °F
Operating Principle
Fluid-driven Reactionary Force
Fluid-driven Reactionary Force
Product Type
Nozzle
Nozzle
Spray Coverage
360°
360°
Product Downloads
Documents
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Specifications
Configuration
Inlet Connection Type
Slip Collar Pin Connection
Slip Collar Pin Connection
Material Composition
Body, saucer & spacer – PTFE fluoropolymer resin; Locking pin – 316 stainless steel
Body, saucer & spacer – PTFE fluoropolymer resin; Locking pin – 316 stainless steel
Model
28500-R
28500-R
Product Type
Nozzle
Nozzle
Performance
Operating Pressure Range
0.7 - 3.4 bar
10 - 50 psi
Product Category
Brand
TankJet®
TankJet®
Impact Group
Medium Impact
Medium Impact
Standard Feature
Liquid Flow Rate Range
34 - 195 l/min
9 - 51.4 gpm
Maximum Free Passage
150 µm
150 µm
Maximum Recommended Tank Diameter
Up to 5.5 m
Up to 18 ft
Maximum Temperature
93 °C
200 °F
Minimum Tank Opening
64 mm
2.5 in
Operating Principle
Fluid-driven Reactionary Force
Fluid-driven Reactionary Force
Recommended Strainer Mesh
100
100
Spray Coverage
360°
360°
Tank Mounting Options
Vertical/Downward, Vertical/Upward, Horizontal, 45° Upward, 45° Downward
Vertical/Downward, Vertical/Upward, Horizontal, 45° Upward, 45° Downward
