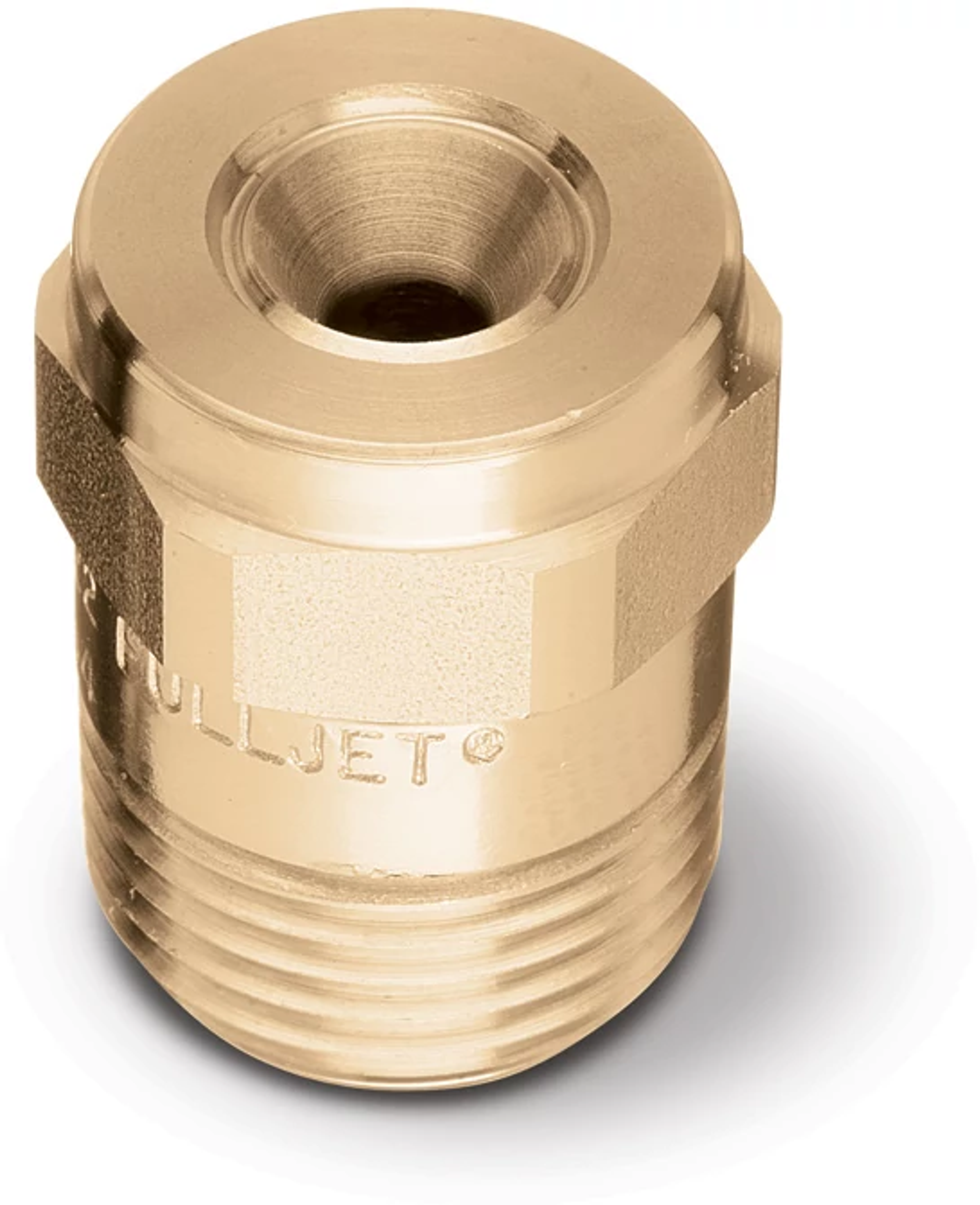

Maximum Free Passage FullJet® Nozzle, Brass, 3/4HHMFP-11584
Images are representative.
Images are representative. Products may differ in material or configuration.
+ 5
Product Configuration
Inlet Connection Thread Type:NPT
Inlet Connection Type:Threaded (Male NPT)
Material Composition:Brass
General Information
Description
- Solid cone-shaped spray pattern
- Patented vane design provides largest free passage of maximum free passage nozzles; ideal for use with fluids with particulates
- More uniform spray distribution than other large free passage nozzles
- Uniform spray distribution from 1.4 to 57 gpm (5.3 to 216 lpm)
- Operating pressures up to 80 psi (6 bar)
- Spray angles: 60°, 90° and 115°
Flow
The liquid comes in contact with the vane as it enters the nozzle. The unique vane design stabilizes the fluid before it enters the swirl region. The swirling liquid passes through the nozzle and breaks up as it exits the nozzle orifice. The spray pattern produced is a well-defined cone shape consisting of uniform drops equally distributed throughout the spray pattern. The large, open passages in the nozzle minimize clogging.
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
3/4 in
3/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate Range
32 - 86 l/min
8.4 - 19.3 gpm
Liquid Pressure Range
0.7 - 6 bar
10 - 80 psi
Material Composition
Brass
Brass
Relative Drop Size Range
500 - 5,000 µm
500 - 5,000 µm
Spray Pattern
Full Cone
Full Cone
Product Type
Nozzle
Nozzle
Product Downloads
Documents
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Configuration
Capacity Size
84
84
Inlet Connection Gender
Male
Male
Inlet Connection Size
3/4 in
3/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate at Rated Pressure
31.797 l/min
8.4 gpm
Material Composition
Brass
Brass
Model
HHMFP
HHMFP
Spray Angle at Rated Pressure
115°
115°
Design Feature
Has guide vane, Is cast
Has guide vane, Is cast
Product Type
Nozzle
Nozzle
Drop Sizes
Relative Drop Size Group
500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
Performance
Spray Angle Range
100 - 115°
100 - 115°
Spray Angle
100° @ 3 bar, 115° @ 0.7 bar
100° @ 40 psi, 115° @ 10 psi
Product Category
Brand
FullJet®
FullJet®
Spray Angle Catalog Code
Standard
Standard
Standard Feature
Approximate Free Passage Diameter
7.95 mm
0.313 in
Body Hex Size
1-1/8 in
1-1/8 in
Length
4.597 cm
1.81 in
Liquid Flow Rate Range
32 - 86 l/min
8.4 - 19.3 gpm
Liquid Pressure Range
0.7 - 6 bar
10 - 80 psi
Rated Pressure
0.689 bar
10 psi
Relative Drop Size Range
500 - 5,000 µm
500 - 5,000 µm
Spray Pattern
Full Cone
Full Cone
Weight
0.33 kg
11.5 oz
