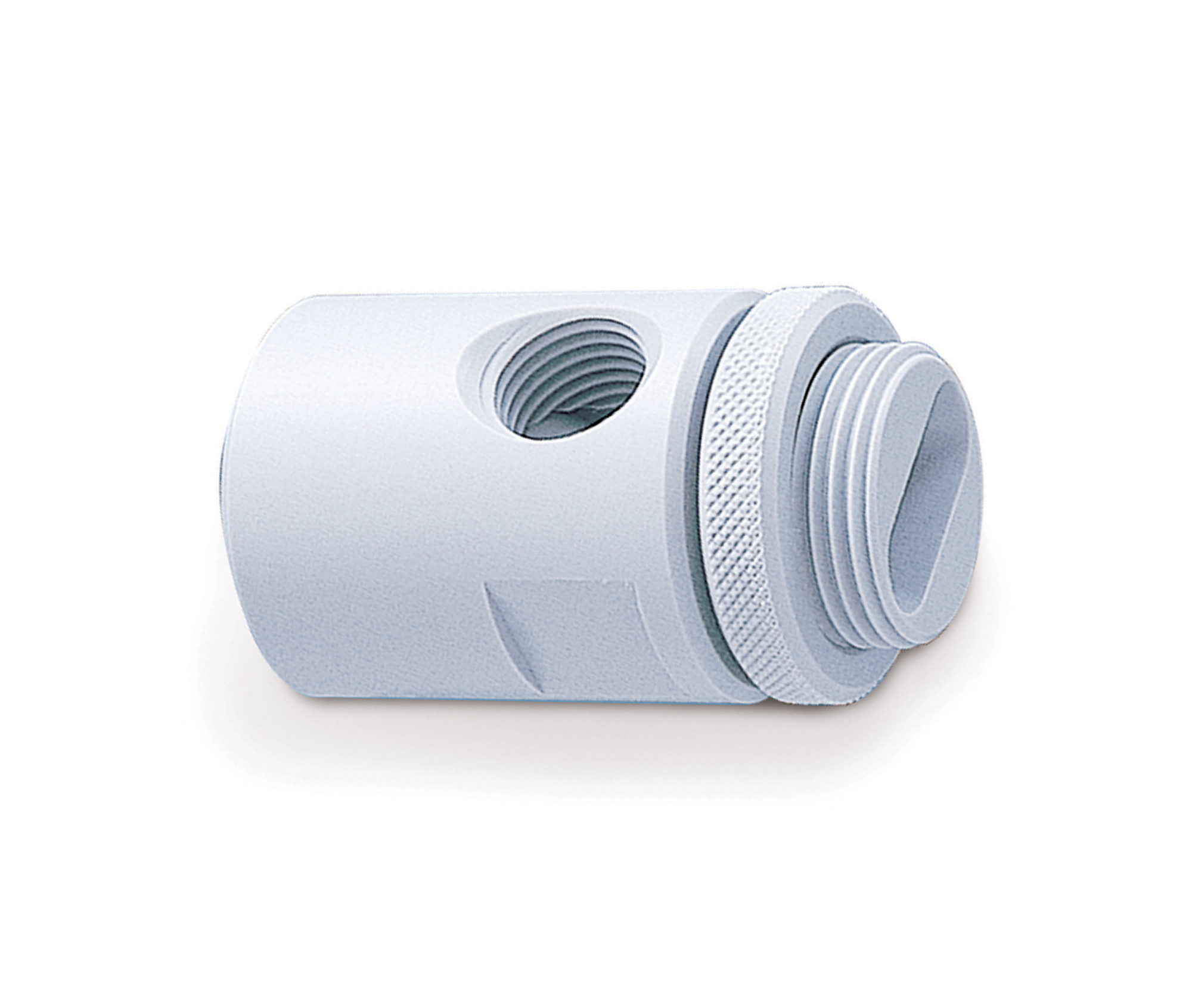

46550-AIE Air Induced Tank Mixing Eductor, PVC, 46550-1/2-AIET-10-PVC
Images are representative.
Images are representative. Products may differ in material or configuration.
General Information
Description
- Circulated liquid flow is combined with induced air to generate small air bubbles that improve operational efficiency
- Air bubbles provide added scrubbing action when used for parts cleaning
- Air bubbles elevate tank particulate and encapsulate debris for easier filtration of tank solution when used for mixing and agitation
- Unique injector design creates a wide 30° to 50° angle for added coverage and capture of particulates
- Easily change flow rates using interchangeable orifice plates (stainless steel models only)
- Ideal for use in dip cleaning, metal particulate carry-off and liquid agitation
Specification Summary
Inlet Connection Thread Type
NPT
NPT
Material Composition
PVC
PVC
Product Type
Eductor
Eductor
Inlet Connection Size
1/2 in @ Liquid Line, 1/4 in @ Air Line
1/2 in @ Liquid Line, 1/4 in @ Air Line
Product Performance
Liquid Flow Rate
Air Flow Rate
Specifications
Configuration
Capacity Size
10
10
Inlet Connection Thread Type
NPT
NPT
Material Code
PVC
PVC
Material Composition
PVC
PVC
Product Type
Eductor
Eductor
Design Feature
Wall Mount
Wall Mount
Inlet Connection Size
1/2 in @ Liquid Line, 1/4 in @ Air Line
1/2 in @ Liquid Line, 1/4 in @ Air Line
Standard Feature
Diameter
2.7 cm
1.063 in
Length
5 cm
1.969 in
Width
3.02 cm
1.188 in
