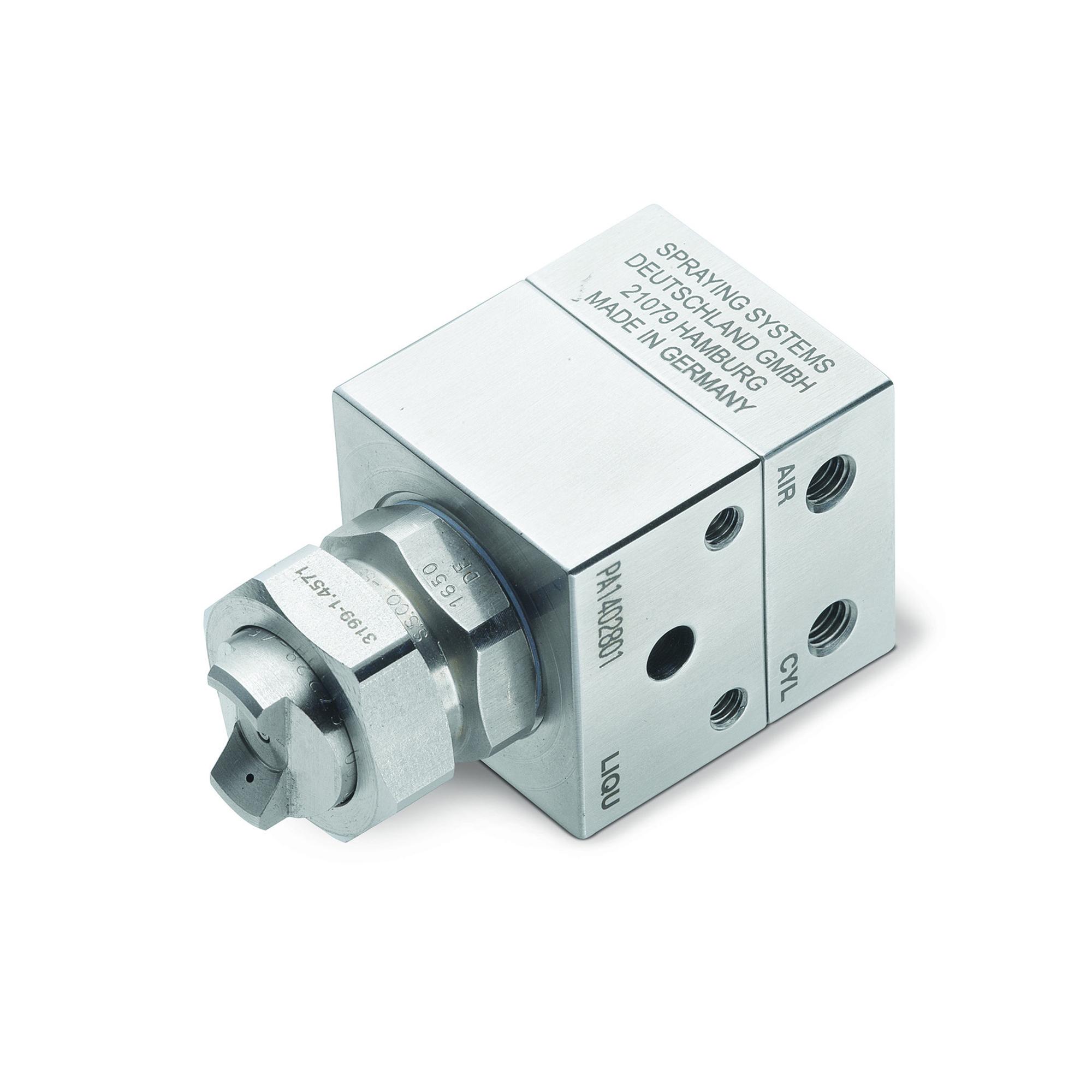

Automatic Air-Actuated Air Atomizing Nozzle, D55500-P18JAU28-A4V

Model:

Images are representative.

General Information

Description

  • Block design 30% smaller than standard 1/4JAU
  • Flow rates up to 0.42 gpm (1.6 lpm)
  • Available with plate mount and wall mount options
  • Drip Free™ spray set-ups provide complete shut-off
  • Stainless steel construction

Specification Summary

Inlet Connection Gender
Female
Inlet Connection Thread Type
BSPT
Material Composition
Stainless Steel construction with Viton® or EPDM seals
Maximum Flow
1.6 l/min
Maximum Operating Speed
600 cpm
Maximum Pressure
3 bar
Maximum Temperature
70 °C
Product Type
Nozzle
Inlet Connection Size
1/8 in @ Air Line, 1/8 in @ Liquid Line
Inlet Connection Type
Threaded (Female BSPT) @ Liquid Line, Threaded (Female BSPT) @ Air Line

Product Downloads

Documents

Catalog76A-AA Metric Automatic Nozzles Air-Actuated Air-Atomizing
Catalog DetailCatalog76A-AA Metric Automatic Nozzles Air-Actuated Air-Atomizing

Other

Specifications

Configuration

Inlet Connection Gender
Female
Inlet Connection Thread Type
BSPT
Material Composition
Stainless Steel construction with Viton® or EPDM seals
Model
D55500-JAU
Product Type
Nozzle
Design Feature
Has shutoff needle
Inlet Connection Size
1/8 in @ Air Line, 1/8 in @ Liquid Line
Inlet Connection Type
Threaded (Female BSPT) @ Liquid Line, Threaded (Female BSPT) @ Air Line

Standard Feature

Cap Hex Size
22.5 mm
Height
30 mm
Length
77.6 mm
Maximum Air Pressure
5 bar
Maximum Flow
1.6 l/min
Maximum Operating Speed
600 cpm
Maximum Pressure
3 bar
Maximum Temperature
70 °C
Spray Tips
Contact Spraying Systems Co.
Width
30 mm
