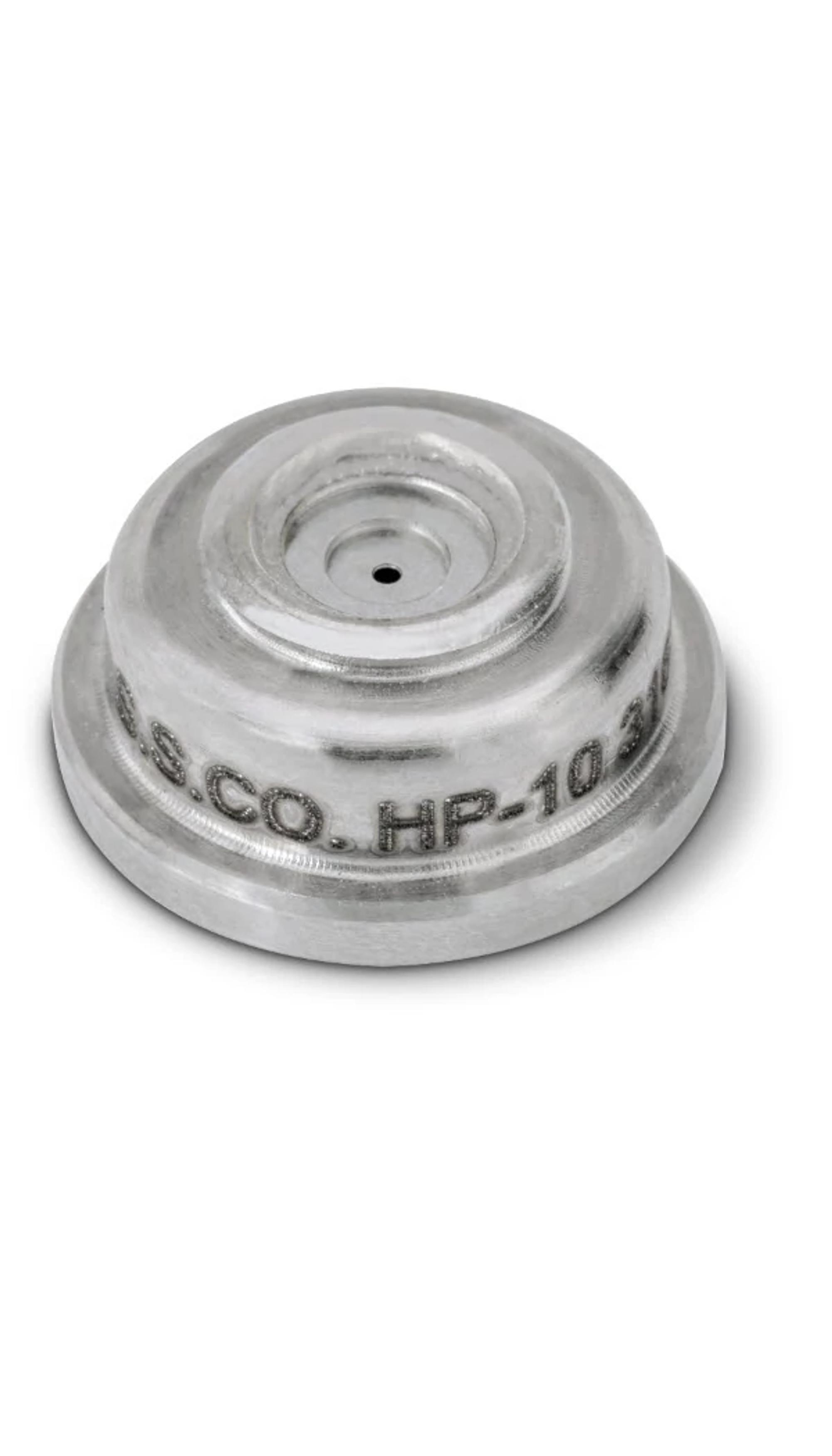

HP Spray Tip, Single-orifice, HP FogJet® Spray Tip and UniJet® Nozzle Assembly, HP-316SS1.5
Product Configuration
Capacity Size:1.5
General Information
Description
- Streak-free, uniform hollow cone spray pattern
- Better atomization at lower operating pressures
- Easy tip change out in place on pipe and header – simply remove tips by unscrewing retainer cap
- Spray angles: 35° to 85°
- Assembly provided with a 200 or 325 mesh strainer (depending upon capacity) and a 40 micron filter integrated in the spray tip
- Uniform spray distribution from 0.47 to 12.6 gph (1.78 to 47.7 lpm)
- Operating pressures up to 400 psi ( 27.6 bar)
- Ideal for applications including humidification, gas cooling/conditioning, evaporative cooling, NOx control, sanitation, moisturizing, livestock cooling, desuperheating, pest control, air washing and dust control
Specification Summary
Material Composition
316 Stainless Steel
316 Stainless Steel
Maximum Pressure
27.6 bar
400 psi
Product Type
Tip
Tip
Product Downloads
Documents
Product Performance
Liquid Flow Rate
Specifications
Configuration
Capacity Size
1.5
1.5
Material Composition
316 Stainless Steel
316 Stainless Steel
Product Type
Tip
Tip
Performance
Spray Angle
35° @ 7 bar
35° @ 100 psi
Standard Feature
Maximum Pressure
27.6 bar
400 psi
