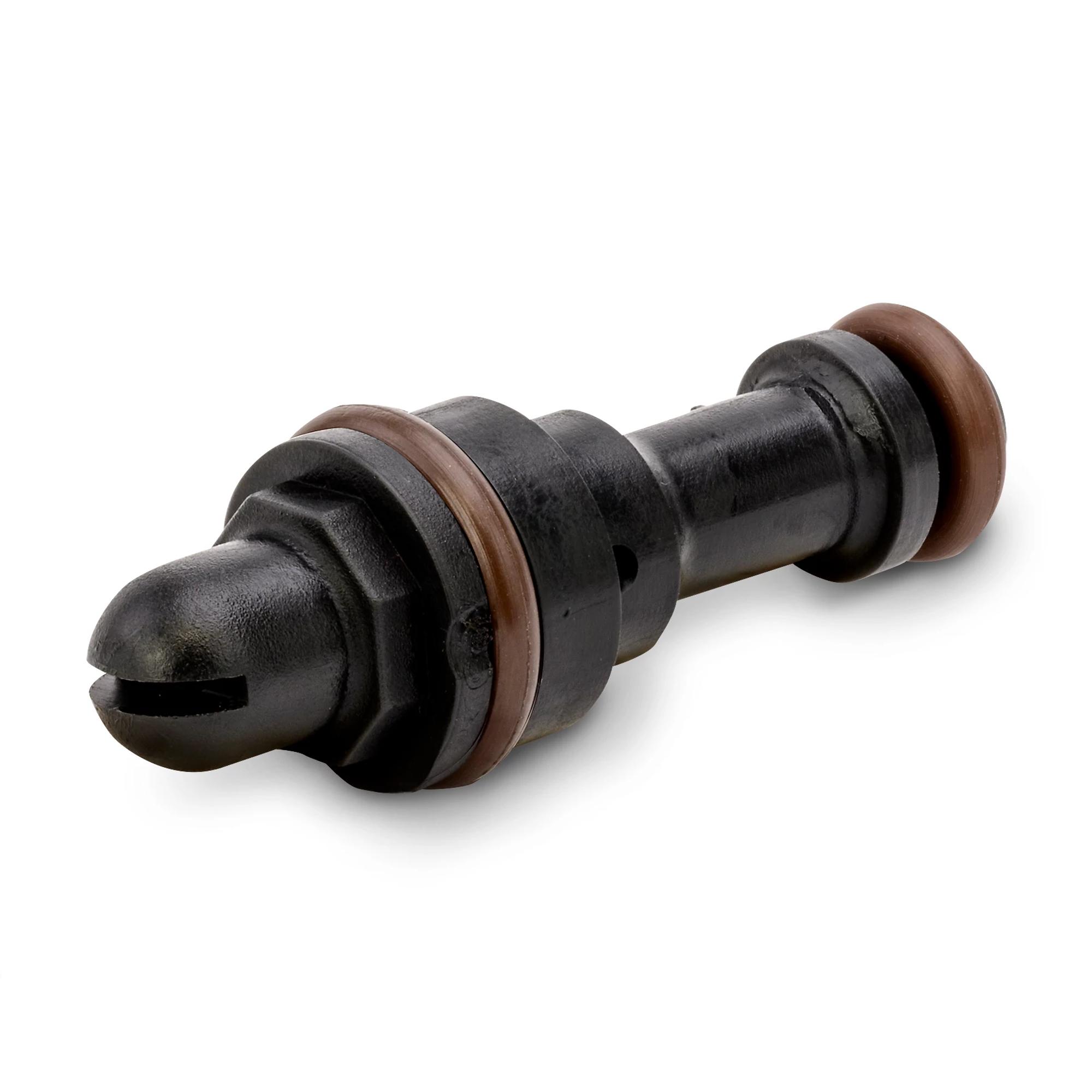

Air Atomizing Setup, SUQF-230

Name: Air Atomizing Setup
SKU: SUQF-230

Model:

Images are representative.

Compare

General Information

Description

Air Atomizing Setup

Specification Summary

Liquid Flow Rate Range

5.68 - 41.56 l/h

Material Composition

PVDF

Spray Pattern

Flat Spray

Product Type

Set-up

Product Downloads

Documents

Catalog DetailCatalog76 Air Atomizing Spray Nozzles Metric Units Pressure Spray Set-ups Internal Flat Spray

Product Performance

Liquid Flow Rate

for 1.38 bar (Liquid Pressure)

for 2.07 bar (Liquid Pressure)

for 2.76 bar (Liquid Pressure)

for 3.45 bar (Liquid Pressure)

for 4.14 bar (Liquid Pressure)

for 4.83 bar (Liquid Pressure)

Air Flow Rate

for 1.38 bar (Liquid Pressure)

for 2.07 bar (Liquid Pressure)

for 2.76 bar (Liquid Pressure)

for 3.45 bar (Liquid Pressure)

for 4.14 bar (Liquid Pressure)

for 4.83 bar (Liquid Pressure)

Specifications

Configuration

Air Cap Component

PAQF40

Fluid Cap Component

PFQ40

Material Composition

PVDF

Model

QMJ Air Atomizing Setups

Setup Mix Type

Internal Mix

Setup Type

Pressure Spray Product

Product Type

Set-up

Sales Part Numbers

Air Cap Part Number
