DistriboJet®

DistriboJet® nozzles provide a solid cone-shaped pattern with a round impact area. Extra large flow passages and a large, open orifice eliminate clogging. These high-flow nozzles produce a deluge-like cone pattern.

Based on your current criteria, all products belong to this model

Model

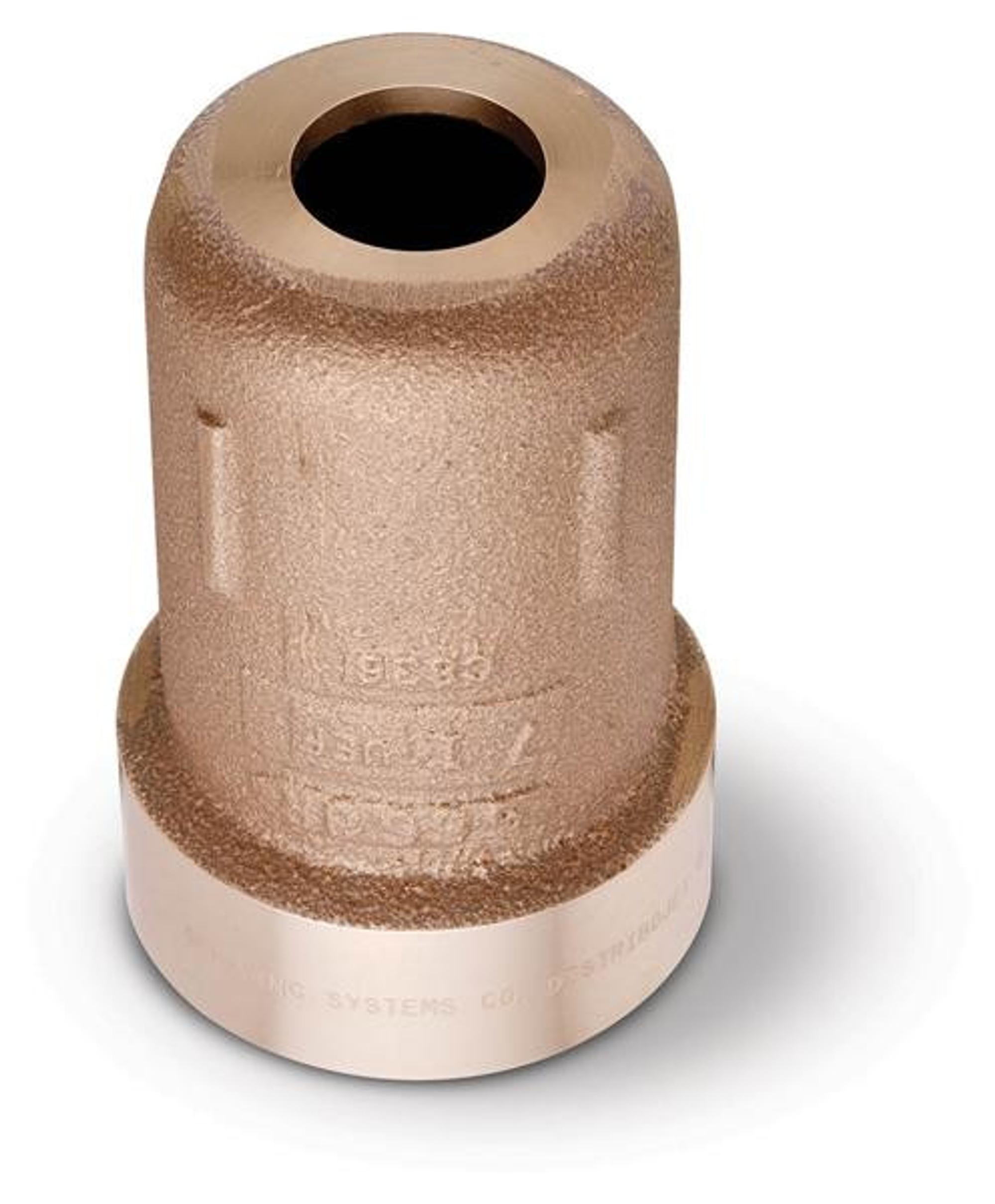

R, RR, RF

DistriboJet® Full Cone Nozzles - Extra Large Free Passage

General information

Solid cone-shaped spray pattern with round impact area
Extra large flow passages and large open orifice eliminate clogging
Internal vane is cast as part of the nozzle
Uniform spray distribution from 122 to 32530 lpm
Operating pressures up to 4 bar; full cone pattern develops at 0.07 bar
50°, 60°, 80° and 95° spray angles; 50° and 65° styles feature specially designed grooved orifices for accurate flow rates and spray angle control

Configure this model

SprayFinder®

Materials

Inlet Connection Type

Inlet Connection Size

Design Feature

Capacity Size

Spray Angle at Rated Pressure

DistriboJet®
