FlatJet®
FlatJet® nozzles produce a narrow angle flat spray pattern with high impact. As liquid passes through the nozzle, it hits the deflector surface and spreads out to form a flat spray pattern.
Based on your current criteria, all products belong to this model
Model
P

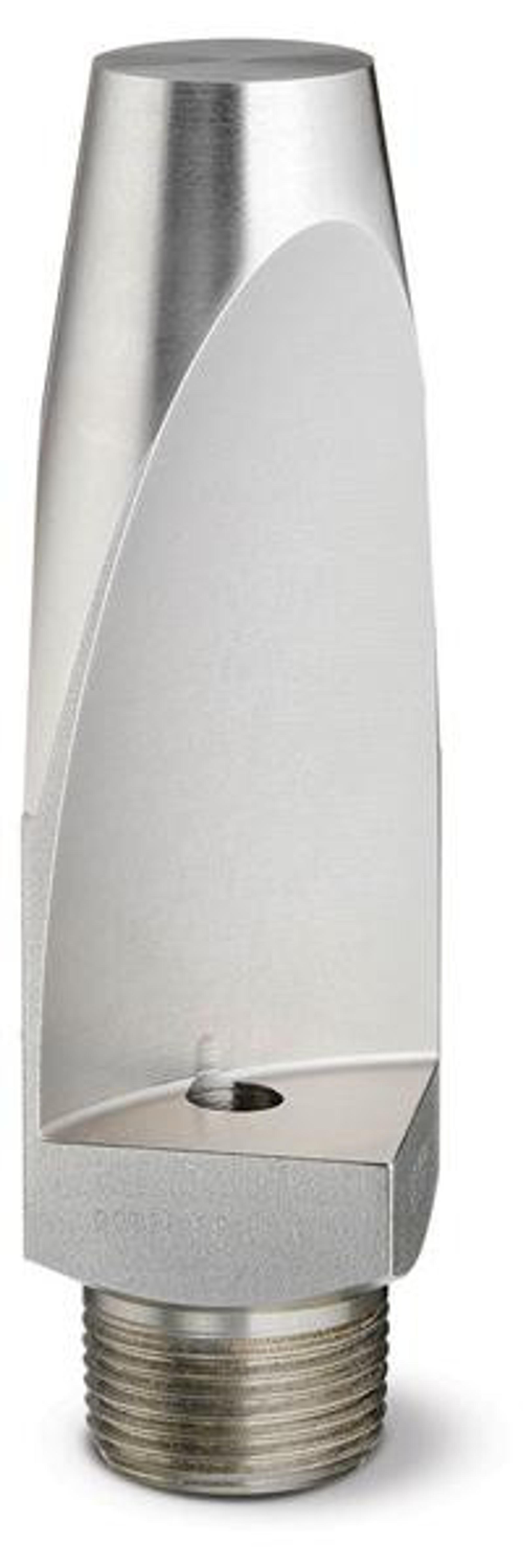

FlatJet® Deflected Flat Spray Nozzles - Narrow Angle Spray - High Impact
General information
- Provides higher impact than other narrow angle nozzles
- Deflected type flat fan spray pattern
- Ideal for conveyor cleaning
- Spray angles from 15° to 50°
- Uniform spray distribution from .91 to 144 lpm
- Operating pressures up to 10 bar
1/4P-SS5010FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|10|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
1/4P-SS5025FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|25|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
3/8P-SS5060FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|3/8 in|60|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
3/8P-SS5025FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|3/8 in|25|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
3/8P-SS5040FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|3/8 in|40|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
1/4P-SS5040FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|40|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
1/4P-SS3520FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|20|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|35°
1/4P-5010FlatJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/4 in|10|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
1/4P-SS3510FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|10|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|35°
1/4P-SS5005FlatJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|05|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|50°
