The volume of liquid passing through a nozzle (also called the nozzle’s capacity) is typically measured in liters per minute. Flow rate is affected by liquid pressure and other factors, including the specific gravity and viscosity of the liquid being sprayed.
> _For more information on liquid flow rate or nozzle capacity, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Flow Rate

Inlet Connection Size

The operating pressure as published in our catalog.

> _For more information on how liquid pressure affects spray performance, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Liquid Pressure

Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
> _For more information on nozzle materials, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Materials

Many hydraulic spray nozzles include a numeric capacity size in the part number. Capacity size is often related to the flow rate of the nozzle at the rated spray pressure for that nozzle. For example, the capacity size for a 1/4HH10 FullJet® nozzle is “10”, which reflects a 3,78 lpm flow rate at 0,68 bar.

Capacity Size

Specific gravity is the ratio of the density of a fluid compared to the density of water. It must be considered to properly calculate flow rate.

 **Alternatively**, if you don't know the specific gravity you may select the **Liquid Type** from a list of commonly-sprayed liquids and temperatures.

### Liquid Type

 The type of liquid sprayed and its temperature affects the specific gravity of the liquid and in turn affects the flow rate. The default liquid is water, with a specific gravity of 1.

> _For more information on how specific gravity and other characteristics such as temperature, viscosity and surface tension affect spray performance, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Specific Gravity

The angle of the spray pattern as it emerges from the nozzle orifice, measured in degrees. Narrower spray angles provide less coverage of the sprayed surface. Wider spray angles provide greater coverage of the sprayed surface. Solid stream nozzles have a 0° spray angle.
> _For more information on spray performance characteristics including spray angle and spray coverage, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Angle

Different nozzle types are _**“rated”**_ at various pressures, depending on the function of the nozzle and the pressure at which a spray pattern is fully formed. The angle of the spray pattern as it emerges from the nozzle, when spraying at the rated pressure orifice, can serve as a reference point for comparing different nozzles.

Spray Angle at Rated Pressure

The spray angles produced by nozzles vary from 0° for solid stream nozzles up to 180° for select hollow cone nozzles. For ease of product searching, our catalog groups spray angles into “narrow” (typically < 50°), “standard” (50°-100°) and “wide” (> 100°).
> _**Important Note:** Spray angle range for each of the basic spray patterns (flat spray, full cone, hollow cone) varies, so Spray Angle Catalog Group is most useful when searching for nozzles within a single spray pattern._

Spray Angle Range

Most nozzles are available with NPT or BSPT connections. Other threaded connections are available on select nozzles and additional connection types, such as flange and quick-connect, are also common. Some nozzles are also available with sanitary connections.

Inlet Connection Type

Model

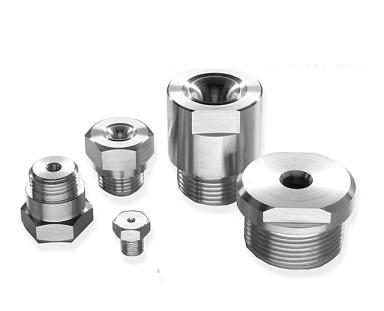

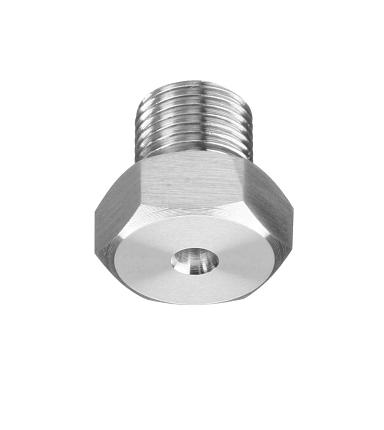

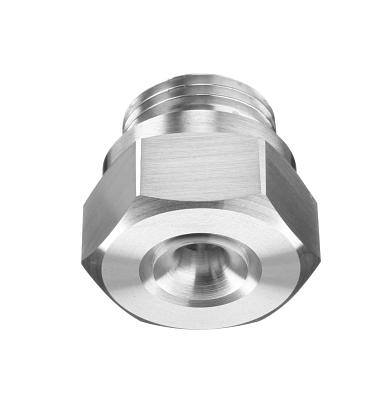

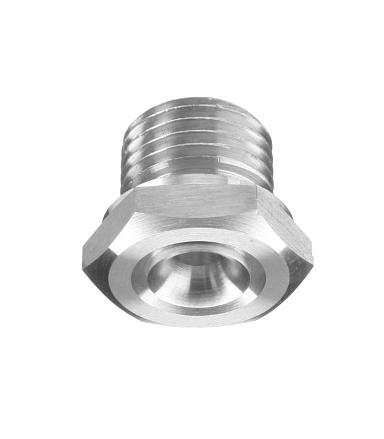

FULL CONE NOZZLE, 1/4" BSPP, MAT: 1.4571 (316Ti)

FULL CONE NOZZLE, 3/4" BSPT, MAT: 1.4571 (316Ti)

FULL CONE NOZZLE, 1/2" BSPP, MAT: 1.4571 (316Ti)

FULL CONE NOZZLE, 3/8" BSPP, MAT: SS

FULL CONE NOZZLE, 1/4" BSPT, MAT: BRASS

FULL CONE NOZZLE, 1/2" BSPP, MAT: BRASS

FULL CONE NOZZLE, 3/8" BSPP FEMALE THREAD, MAT: BRASS

FULL CONE NOZZLE, 1/4" BSPT, MAT: SS
