SpiralJet®
SpiralJet® offer full cone and hollow cone spray patterns suitable for a wide range of applications. The large open passages are ideal for use with fluids containing particulates. The nozzles provide maximum liquid throughput for a given pipe size.
Based on your current criteria, all products belong to this model
Model

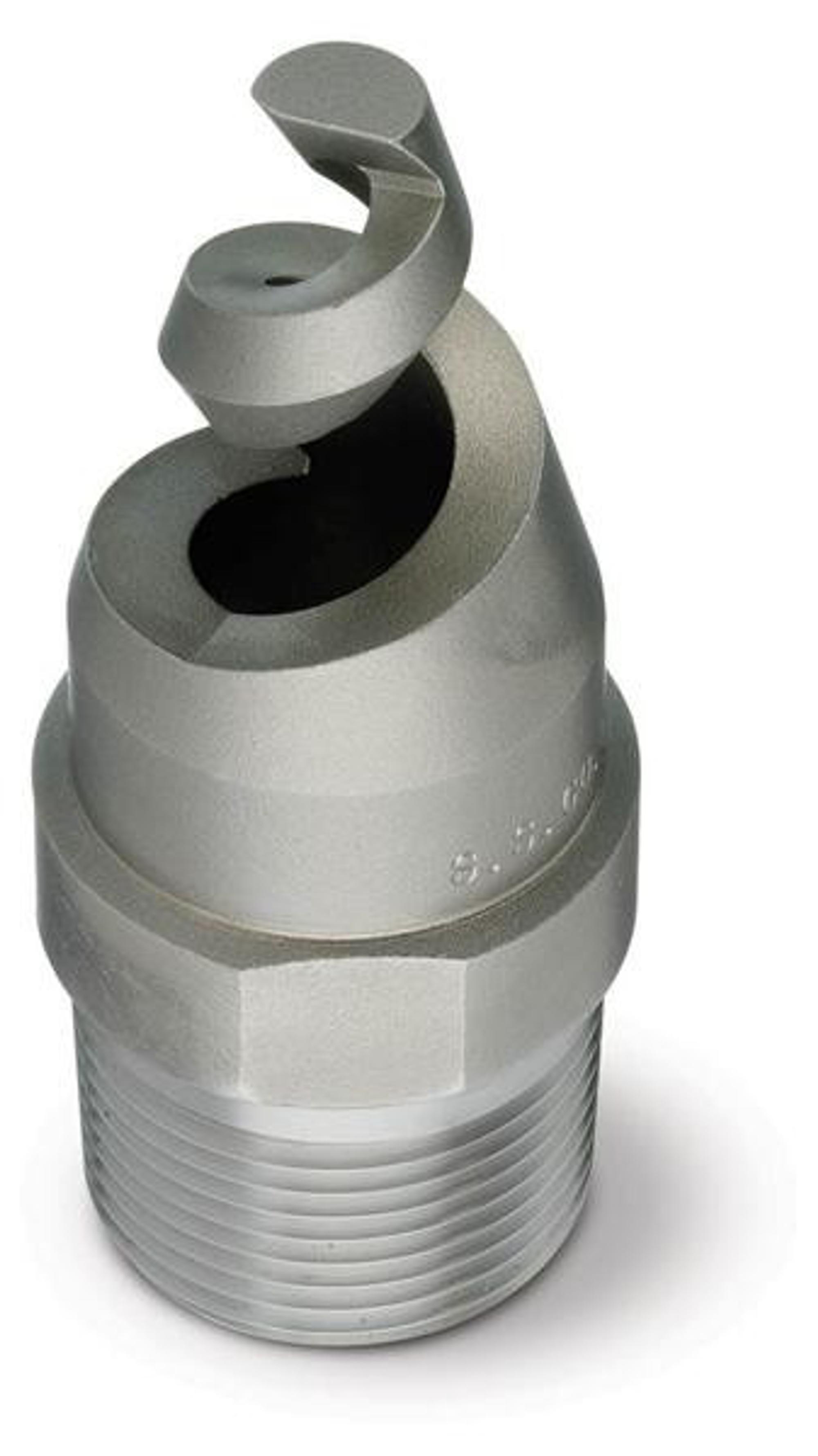

BSJ
SpiralJet® Hollow Cone Spiral Nozzles - Extra Large Free Passage
General information
- Spiral nozzles (also referred to as helix nozzles, corkscrew nozzles and pigtail nozzles) produce hollow cone spray patterns with a circular impact area
- Minimal clogging – maximum flow through passages of any nozzle of comparable size
- Spray angles: Standard – 50° to 180°
- Uniform spray distribution from 2 to 11967 lpm
- Operating pressures up to 25 bar
- Precision impact blade angles distribute drops and provide excellent coverage – ideal for washing, rinsing and cooling
- Compact size
- BSFJ flange-type nozzles available with reaction-bonded silicon carbide tips on FRP flanges available upon request
1/4BSJ-SS12007SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1/4 in|Is Cast|07|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/4BSJ-9007SpiralJet® Spiral Nozzle, Brass
Brass|Threaded (Male NPT)|1/4 in|07|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|90°
1/2BSJ-SS120120SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1/2 in|Is Cast|120|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/4BSJ-SS9007SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1/4 in|Is Cast|07|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|90°
1BSJ-SS120340SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1 in|Is Cast|340|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/4BSJ-SS9013SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1/4 in|Is Cast|13|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|90°
1/4BSJ-SS6007SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1/4 in|Is Cast|07|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|60°
3/8BSJ-SS12030SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|3/8 in|Is Cast|30|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/4BSJ-12013SpiralJet® Spiral Nozzle, Brass
Brass|Threaded (Male NPT)|1/4 in|13|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/4BSJ-SS12013SpiralJet® Spiral Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1/4 in|Is Cast|13|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
