Threaded nozzles are typically offered with tapered pipe threads. NPT and BSPT threads are the most common. Other thread types are available for selected nozzles.

Inlet Connection Thread Type

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Ultra-high pressure, high impact flat spray or solid streamZZZZZ* Operating pressures are up to 10 times higher than other high pressure nozzles – up to 4000 barZZZZZ* Traditional and quick-connect options; ZZZZZ* Save on nozzle replacement costs – nozzle bodies can be reused – only spray tips are replacedZZZZZ* Long wear life – nozzles are hardened stainless steel. Spray tips are available with extra hard sapphire inserts for maximum wear resistanceZZZZZ* Spray angles from 0° to 45°ZZZZZ* Uniform spray distribution from 0.11 to 295 lpmZZZZZ* Nozzle bodies include O-ring, gasket (58833 only) and tip retainer

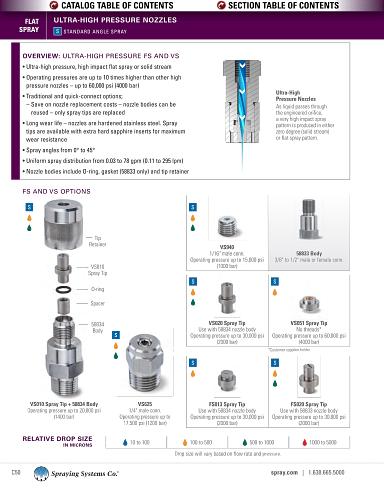

Ultra-High Pressure Nozzle Bodies

QuickJet® and UniJet® nozzle bodies remain in place and can be reused when spray tips need to be replaced, reducing maintenance time. QuickJet spray tips are installed by hand without tools. UniJet spray tips are easily installed with a retainer cap using a wrench. Full cone, flat spray and hollow cone spray tips are available for both the QuickJet and UniJet nozzle systems.

Ultra-High Pressure Nozzle Bodies, 58833, 58834

General Information

Description

Specification Summary
