Minimum Pressure

The range of operating pressures published in our catalog.
> _The catalog offers flow data only for selected operating pressures. Certain nozzles may be able to operate outside the pressure range shown in the catalog. Consult your local Spraying Systems Co. representative to ensure safe operation._

Liquid Pressure Range

Maximum Pressure

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
> _For more information on nozzle materials, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Material Composition

A nozzle’s spray pattern is the shape the liquid forms after it emerges from the orifice. Nozzles are precision engineered to produce specific spray patterns such as full cone, flat spray, hollow cone and solid stream patterns. Different spray patterns are useful for different types of spray operations.
> _For more information about typical applications for various spray patterns, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Pattern

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Hollow cone spray pattern is ideal for air blast and directed spray applications.
* Larger droplets are produced, compared to the standard TX ConeJet, through the use of a Venturi air aspirator resulting in reduced drift and improved canopy penetration.
* Constructed of polypropylene, ceramic and FKM for excellent chemical and wear resistance.
* Removable pre-orifice for fast and easy cleaning.
* AITXA to be used with 114445A-*-CELR Quick TeeJet® cap.
* AITXB to be used with Albuz® caps or equivalent.
* AITXA and AITXB Compatible with TeeJet cap CP20230 for use on rollovers and threaded nozzle bodies, tighten to a maximum torque of: 11 Nm.

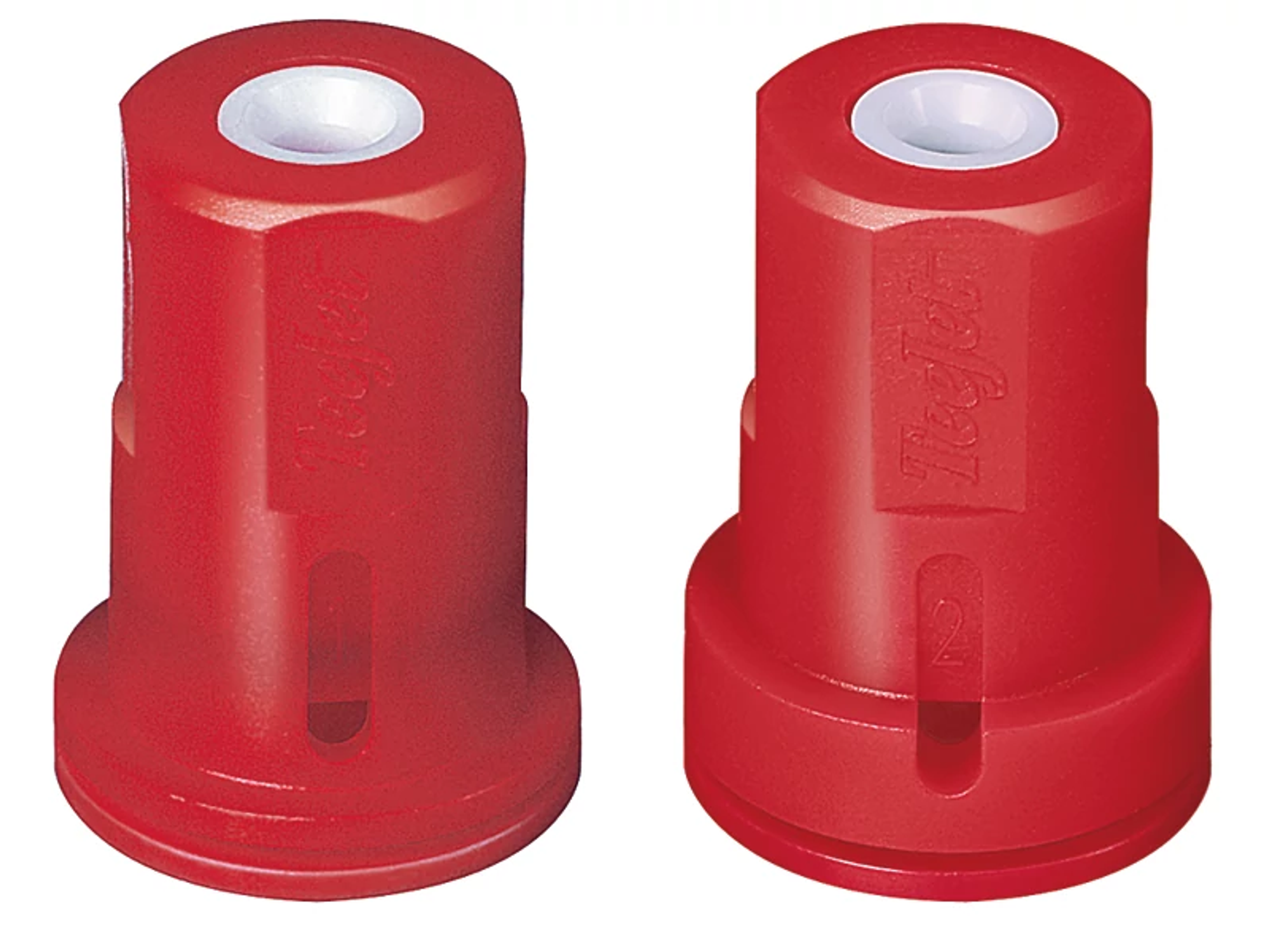

AITXA ConeJet® Air Induction Hollow Cone Spray, AITXA

General Information

Description

Specification Summary

Alternative Models
