FullJet® Full Cone Nozzles - Wide Angle Square Spray

FullJet® Full Cone Nozzles - Square Spray - Removable Cap/Vane

FullJet® Full Cone Nozzles - Square Spray - One-piece Design

The range of operating pressures published in our catalog.
> _The catalog offers flow data only for selected operating pressures. Certain nozzles may be able to operate outside the pressure range shown in the catalog. Consult your local Spraying Systems Co. representative to ensure safe operation._

Liquid Pressure Range

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

A nozzle’s spray pattern is the shape the liquid forms after it emerges from the orifice. Nozzles are precision engineered to produce specific spray patterns such as full cone, flat spray, hollow cone and solid stream patterns. Different spray patterns are useful for different types of spray operations.
> _For more information about typical applications for various spray patterns, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Pattern

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Solid cone-shaped spray pattern with oval impact area; the width of the spray is approximately half its length
* Unique vane design provides superior spray pattern control
* Uniform spray distribution from 2.2 to 11.9 lpm
* Operating pressures up to 10 bar
* Spray angles: Standard – 43° to 94°

FullJet® Full Cone Nozzles - Oval Spray - Removable Cap/Vane

Full cone nozzles with both standard and wide angle spray patterns are available with square and oval impact areas. These nozzles are used for a broad range of applications including low pressure rinsing and washing where a square or oval impact area is preferred.

Square/Oval Spray Full Cone Nozzles

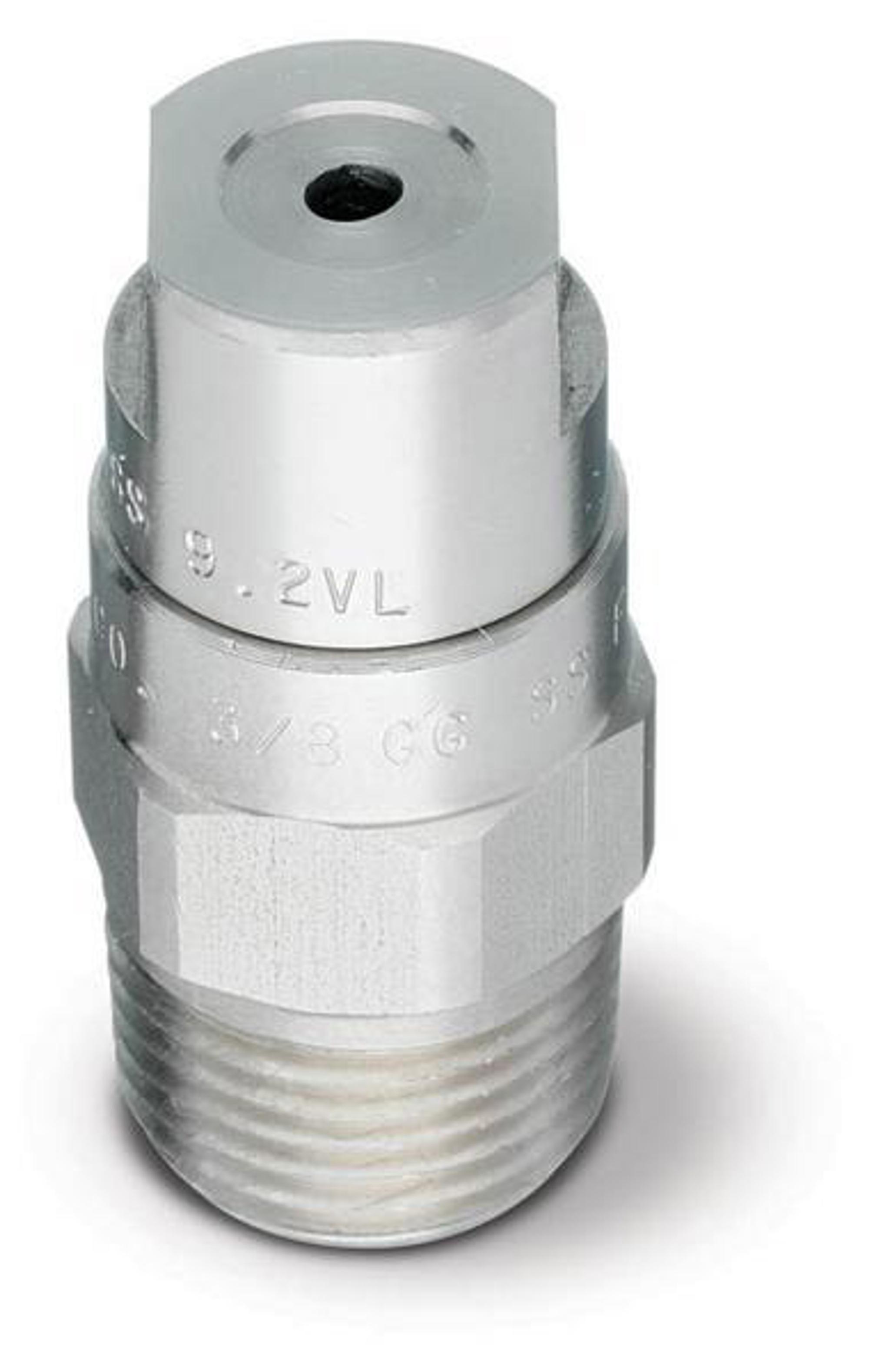

FullJet® Full Cone Nozzles - Oval Spray - Removable Cap/Vane, G-VL, GG-VL
