JKI Drift Reduction Rating

Fertilizer Banding

Steam Inlet Connection Thread Type

The largest interior tank diameter (measured in feet or meters) for which a specific TankJet nozzle should be used.

Maximum Recommended Tank Diameter

Actual drop size (measured in microns) will vary based on flow rate and pressure. The _**“relative”**_ drop size range represents the variation in drop size across typical operating pressures for a particular nozzle.
> _If drop size is critical to your application, contact us for specific information. For basic information on drop size terminology, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Relative Drop Size Range

Maximum Transverse Spray Coverage Width Horizontal Spray

Motor Cables

Nozzle Hub Drive

Actual drop size (measured in microns) will vary based on flow rate and pressure. The _**“relative”**_ drop size range represents the variation in drop size across typical operating pressures for a particular nozzle.

The drop size ranges provided can be characterized as follows:
- 10 to 500 microns: very small drops
(comparable to fog)
- 100 to 500 microns: small drops
(comparable to light rain)
- 500 to 1000 microns: medium drops
(comparable to moderate rain)
- 1000 to 5000 microns: large drops
(comparable to heavy rain)

> _If drop size is critical to your application, contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

> _For basic information on drop size terminology, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Relative Drop Size Group

Formula

Maximum Pressure With Advanced AutoJet Controllers

Provided for flat spray nozzles with elliptical orifices. It is the diameter of a circular orifice that would pass the same flow.

Equivalent Orifice Diameter

Minimum Pressure

Overflow Outlet Connection Size

Mounting Points

Answercode to a specific question

Air Knife Length

Overflow Outlet Connection Thread Type

DSE Volume Median Diameter (Dv 0.5)

Flats

Has Guide Vane

Set-up Sales Part Number

Fluid Cap Part Number

Cap Hex Size

Number Of Trigger Signals

Minimum Cylinder Air Pressure

Steam Capacity Range

The volume of liquid passing through a nozzle (also called the nozzle’s capacity) is typically measured in liters per minute. Flow rate is affected by liquid pressure and other factors, including the specific gravity and viscosity of the liquid being sprayed.
> _For more information on liquid flow rate or nozzle capacity, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Flow Rate

Mounting Type

Length At Maximum Opening Height

Sanitary Standard

Descriptive Product Type

Siphon Inlet Connection Size

Maximum Liquid Discharge Pressure Range

Number Of Spray Outlets

Electrical Side Spare Part Kit

Motor Version

A Dimension

Finish Coating

Anti-Bearding Set-Up

Maximum Temperature

Spray products that are recirculating allow the sprayed liquid to flow back to the liquid source

Is Recirculating

Front Spray Angle at Rated Pressure

Products that are designated as "Food Contact" are constructed from materials that are compliant for food contact

Is Food Contact

Clamp Sales Part Number

Check Valve Mount Side

GunJet spray guns and accessories are available with various outlets, including NPT or BSPT threaded outlets, UniJet threaded outlets (11/16-16) and quick-connect outlets.

Outlet Connection Type

Cylinder Behavior

Orifice discs and cores are used in some UniJet® full cone and hollow cone nozzles to control spray characteristics. Each disc and core pairing provides an unique and different combination of flow rate, spray angle and spray pattern.

Orifice Disc Number And Core Number

Is Temperature Controlled

Mesh size relates to the particle size that will be filtered by a strainer. Because the purpose of a liquid strainer is to prevent nozzle plugging it’s important to choose a mesh size that will screen out particulates larger than the nozzle’s orifice will allow to pass.
> _For help selecting the right strainer mesh size for your application, contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Mesh Size

Maximum Pump Head

Operating Pressure Range

PWM Voltage

Number Of Speed Control Channels

Outlet Connection Thread Type

Orifice Number

Orifice Type

Amperage

The nozzle height is set to ensure the optimal spray pattern overlap, which is necessary for uniform coverage based on the spacing of the nozzles across the spray boom.

Optimum Spray Height (Height @ Spacing)

Max Horizontal Throw For Straight Stream Spray Pattern

Approximate Spray Pattern Diameter

Inner Clamp Sales Part Number

Boom Diameter

Navigation Configuration

Minimum Tank Opening

Maximum Free Passage

C Dimension

Pipe Size To Clamp On

Motor Specifications

JKI Certification Number

Inlet Type

Application Rate For Three Tips

Air Volume at Outlet

Cycle Time

Extension Length

Mesh Opening

Weight

The QuickJet® and UniJet® Nozzle Systems provide nozzle bodies with interchangeable spray tips. QuickJet bodies and tips are designated with “Q” as the first letter in the part number and offer quick-connect convenience with automatic spray pattern alignment. UniJet bodies and tips use a threaded retaining cap to complete the assembly. Both QuickJet and UniJet nozzles are available in a wide variety of spray patterns, flow rates and materials of construction.

Tip Type

Gearbox Type

Other Metallurgy

Has Cleanout Needle

Horizontal Spray Coverage Length Horizontal Spray

Antenna Type

LERAPS Drift Reduction Rating

DSE Spread Parameter

Drop Size

Application

DSE Calculation Enabled

Application Rate

Air Flow Rate

Dense Spray Coverage Diameter

Spray Coverage refers to the portion of the vessel to be cleaned. TankJet nozzles offering full 360° coverage clean all interior tank surfaces. For vessels with an open top, TankJet nozzles with 180° downward coverage are available. Other coverage patterns are also available.

Spray Coverage

Circulation Rate

Nozzle Count

Atomizing Air Flow Rate

Extension Options

Tip Style Or Setup

Core Number

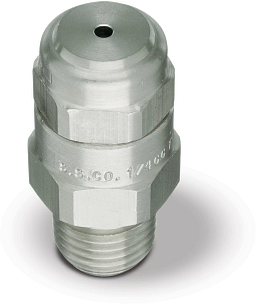

FullJet® Full Cone Nozzles - Removable Cap/Vane

FullJet® Full Cone Nozzles - One-piece Design

FullJet® Full Cone Nozzles - Right Angle Type

FullJet® Full Cone Nozzles - Wall-Mount - Removable Cap/Vane

FullJet® Full Cone Nozzles - Plastic - One-piece Design - Standard Angle

FullJet® Full Cone Nozzles - Wall-Mount - One-piece Design

FullJet® Full Cone Nozzles - Cast - Flanged

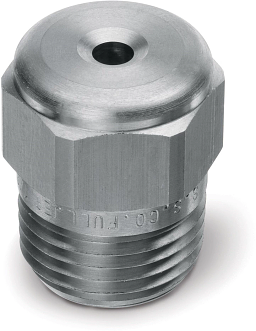

HX, HHX FullJet® Staked-Vane Full Cone Nozzle

The range of operating pressures published in our catalog.
> _The catalog offers flow data only for selected operating pressures. Certain nozzles may be able to operate outside the pressure range shown in the catalog. Consult your local Spraying Systems Co. representative to ensure safe operation._

Liquid Pressure Range

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
> _For more information on nozzle materials, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Material Composition

Threaded nozzles are available with male (external) threads or female (internal) threads.

Inlet Connection Gender

A nozzle’s spray pattern is the shape the liquid forms after it emerges from the orifice. Nozzles are precision engineered to produce specific spray patterns such as full cone, flat spray, hollow cone and solid stream patterns. Different spray patterns are useful for different types of spray operations.
> _For more information about typical applications for various spray patterns, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Pattern

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

The nozzles are constructed of natural PVDF - a super-tough, chemical-resistant fluoropolymer. Because no colorants or fillings have been added to the PVDF spray nozzles, they are especially suitable for such ultra-pure processing environments as electronics. Capable of spraying a variety of chloride, acid, alkali, and ammonia-based etchants, the nozzles can withstand temperatures up to 149°C at 7 bar. Models of the FullJet® and VeeJet® spray nozzles are also available with a removable strainer. The strainer guards against wear of the nozzle caused by liquid-carried foreign matter. This makes the nozzle a particularly good choice for a variety of general industrial applications.

FullJet® Full Cone Nozzles - PVDF

Standard full cone nozzles generally produce spray angles of 40° to 95° and are commonly used for a broad range of applications including low pressure rinsing and washing, cooling solids and gases, evaporative cooling of liquids and humidifying.

Standard Full Cone Nozzles

FullJet® Full Cone Nozzles - PVDF, HH-KY

Model Specifications

Which inlet connection type fits your system?

General Information

Description

Specification Summary

Alternative Models
