Quick FloodJet® Deflected Flat Spray Nozzle Systems - Wide Angle Spray

Mini Quick FloodJet® Flat Spray Nozzle Systems - Wide Angle Spray

Mini ProMax® Quick VeeJet® Flat Spray Nozzle Systems - Low Flow

Mini Quick VeeJet® Nozzle Systems - Low Flow

Quick VeeJet® Nozzle Systems

Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
> _For more information on nozzle materials, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Material Composition

A nozzle’s spray pattern is the shape the liquid forms after it emerges from the orifice. Nozzles are precision engineered to produce specific spray patterns such as full cone, flat spray, hollow cone and solid stream patterns. Different spray patterns are useful for different types of spray operations.
> _For more information about typical applications for various spray patterns, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Pattern

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Ideal for high-maintenance operations – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips in seconds
* Automatic alignment feature saves time
* Miniature versions are ideal when smaller physical size and lower weight are important
* Flat fan type, tapered edge spray pattern
* Spray angles from 0° to 110°
* Uniform spray distribution with flow rates from 0.14 to 255 lpm
* Operating pressures up to 20 bar
* Choice of metal or ProMax. ProMax features:
* ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 10 bar
* Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
* Optional external O-ring protects nozzle from contaminants
* Tips are color-coded for easy flow rate identification

ProMax® Quick VeeJet® Flat Spray Nozzle Systems - Medium Flow

QuickJet flat spray nozzles offer ¼-turn convenience for spray tip installation and removal, making maintenance quick and easy. Metal or chemically-resistant ProMax® polypropylene nozzles are available in a wide variety of spray angles and flow rates.

QuickJet® Flat Spray Nozzles

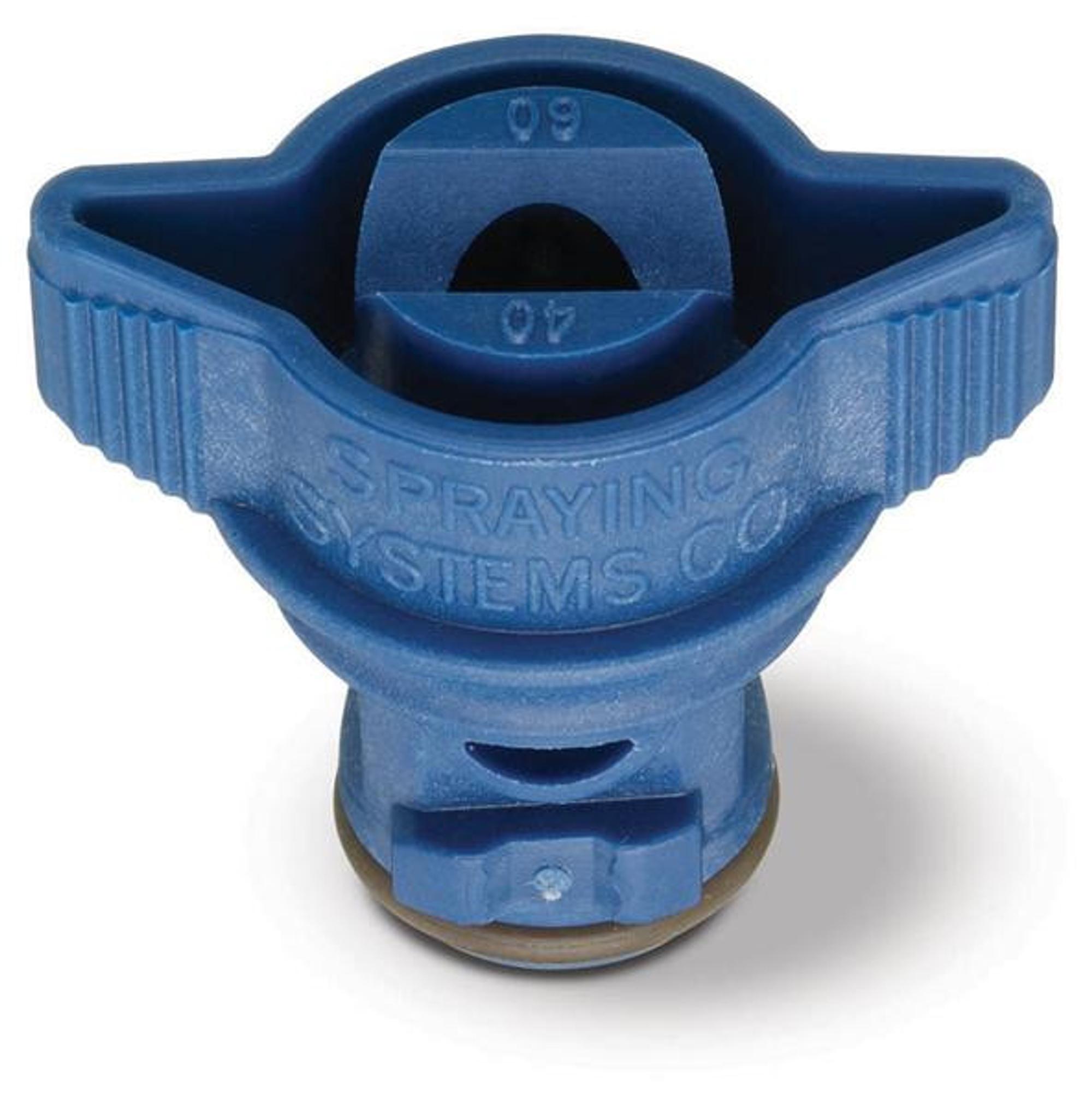

ProMax® Quick VeeJet® Flat Spray Nozzle Systems - Medium Flow, QPTA
