Name: Tank Rinsing Nozzle
SKU: B55270-3/4-18-POM

Performance

Configuration

Standard Feature

The largest interior tank diameter (measured in feet or meters) for which a specific TankJet nozzle should be used.

Maximum Recommended Tank Diameter

The volume of liquid passing through a nozzle (also called the nozzle’s capacity) is typically measured in liters per minute. Flow rate is affected by liquid pressure and other factors, including the specific gravity and viscosity of the liquid being sprayed.
> _For more information on liquid flow rate or nozzle capacity, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Flow Rate

Operating Pressure Range

Threaded nozzles are typically offered with tapered pipe threads. NPT and BSPT threads are the most common. Other thread types are available for selected nozzles.

Inlet Connection Thread Type

Standard hydraulic nozzles range in connection size from 1/8” threaded nozzles up to those with 12” flange connections. Larger connection sizes typically have larger flow rates but a wide variety of configurations are available to meet your application needs.

Inlet Connection Size

Different nozzle types are _**“rated”**_ at various pressures, depending on the function of the nozzle and the pressure at which a spray pattern is fully formed. The flow rate (typically measured in liters per minute) at the rated pressure (measured in bar) is highlighted in catalog performance tables and can serve as a reference point for comparing different nozzles.
> _Keep in mind when comparing nozzles of different types that the rated pressures may vary and will affect flow rate._

Liquid Flow Rate at Rated Pressure

The pressure (measured in bar) at which reference flow rate and spray angle data are taken.

Rated Pressure

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

The angle of the spray pattern as it emerges from the nozzle orifice, measured in degrees. Narrower spray angles provide less coverage of the sprayed surface. Wider spray angles provide greater coverage of the sprayed surface. Solid stream nozzles have a 0° spray angle.
> _For more information on spray performance characteristics including spray angle and spray coverage, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Angle

Threaded nozzles are available with male (external) threads or female (internal) threads.

Inlet Connection Gender

Most nozzles are available with NPT or BSPT connections. Other threaded connections are available on select nozzles and additional connection types, such as flange and quick-connect, are also common. Some nozzles are also available with sanitary connections.

Inlet Connection Type

Liquid Pressure

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

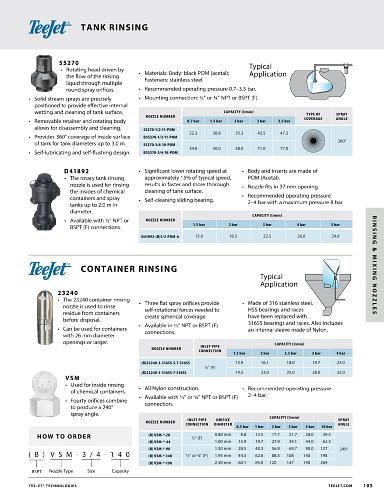

Tank Rinsing 55270

* Rotating head driven by the flow of the rinsing liquid through multiple round spray orifices.
* Solid stream sprays are precisely positioned to provide effective internal wetting and cleaning of tank surface.
* Removable retainer and rotating body allows for disasembly and cleaning.
* Provides 360° coverage of inside surface of tank diameters up to 10'.
* Self-lubricating and self-flushing design.
* Materials: Body = black POM (acetal), Fasteners = stainless steel.
* Recommended operating pressure 10 - 50 PSI.

Tank Rinsing Nozzle, B55270-3/4-18-POM
