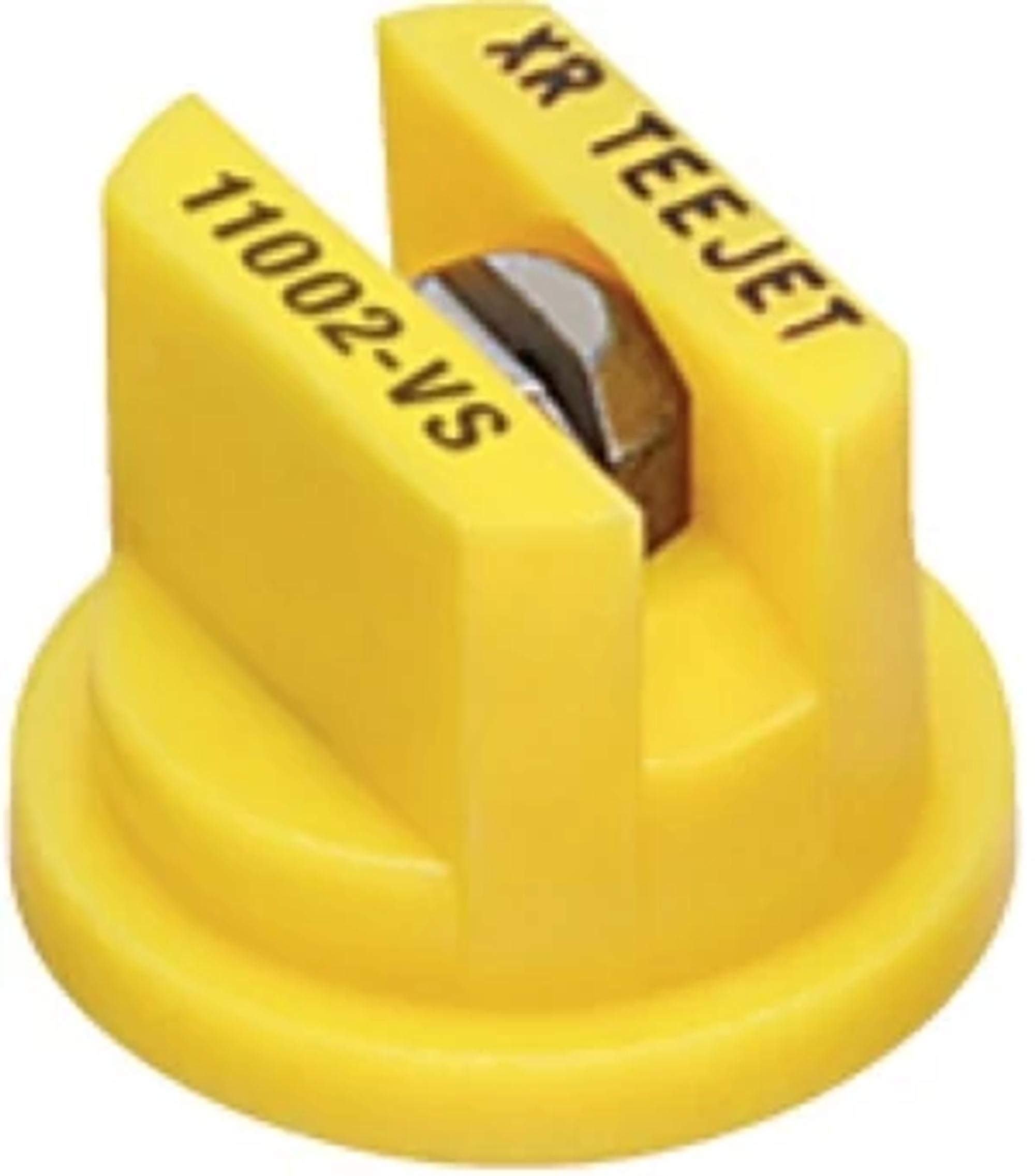

Name: XR TeeJet® Spray Tip - Stainless Steel
SKU: XR11002-VS

Performance

Configuration

Applications

Standard Feature

Minimum Pressure

The volume of liquid passing through a nozzle (also called the nozzle’s capacity) is typically measured in liters per minute. Flow rate is affected by liquid pressure and other factors, including the specific gravity and viscosity of the liquid being sprayed.
> _For more information on liquid flow rate or nozzle capacity, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Flow Rate

The nozzle height is set to ensure the optimal spray pattern overlap, which is necessary for uniform coverage based on the spacing of the nozzles across the spray boom.

Optimum Spray Height (Height @ Spacing)

The QuickJet® and UniJet® Nozzle Systems provide nozzle bodies with interchangeable spray tips. QuickJet bodies and tips are designated with “Q” as the first letter in the part number and offer quick-connect convenience with automatic spray pattern alignment. UniJet bodies and tips use a threaded retaining cap to complete the assembly. Both QuickJet and UniJet nozzles are available in a wide variety of spray patterns, flow rates and materials of construction.

Tip Type

Application Rate

Herbicide Systemic

Insecticide Systemic

The range of operating pressures published in our catalog.
> _The catalog offers flow data only for selected operating pressures. Certain nozzles may be able to operate outside the pressure range shown in the catalog. Consult your local Spraying Systems Co. representative to ensure safe operation._

Liquid Pressure Range

Fungicide Systemic

Turf Application

Many hydraulic spray nozzles include a numeric capacity size in the part number. Capacity size is often related to the flow rate of the nozzle at the rated spray pressure for that nozzle. For example, the capacity size for a 1/4HH10 FullJet® nozzle is “10”, which reflects a 3,78 lpm flow rate at 0,68 bar.

Capacity Size

Maximum Pressure

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

Spray nozzles are available in many different configurations.
> _For more information about how various features might benefit your spray operation, contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Design Feature

The angle of the spray pattern as it emerges from the nozzle orifice, measured in degrees. Narrower spray angles provide less coverage of the sprayed surface. Wider spray angles provide greater coverage of the sprayed surface. Solid stream nozzles have a 0° spray angle.
> _For more information on spray performance characteristics including spray angle and spray coverage, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Angle

Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
> _For more information on nozzle materials, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Material Composition

Drop Size

Insecticide Contact

Fungicide Contact

Material Code

Recommended Strainer Mesh

Herbicide Contact

A nozzle’s spray pattern is the shape the liquid forms after it emerges from the orifice. Nozzles are precision engineered to produce specific spray patterns such as full cone, flat spray, hollow cone and solid stream patterns. Different spray patterns are useful for different types of spray operations.
> _For more information about typical applications for various spray patterns, download our [technical reference document](https://spray.widen.net/s/fhn6dz7tpz/cat75hyd_metric_tech-reference_a) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/en-eu/contact/find-a-representative)._

Spray Pattern

Spacing

Speed

Liquid Pressure

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

XR TeeJet® Extended Range Flat Spray

* Tapered edge flat spray angle pattern for uniform coverage in broadcast spray application.
* Reduces drift at lower pressures, better coverage at higher pressures.
* Ceramic is available with corrosive resistant polypropylene VisiFlo colorcoded tip holder in 80° capacities 03–08 and 110° capacities 02–08.
* XR110025 only available in VK.
* XR80025 and XR80035 only available in VS.
* Brass available in 110° only.
* Automatic spray alignment with 114441A-* -CELR (01 to 08) or 114443A-*-CELR (10 and 15) Quick TeeJet® cap and gasket.

XR TeeJet® Spray Tip - Stainless Steel, XR11002-VS
