QuickJet®

QuickJet® spray nozzles, available in a wide range of spray patterns and materials, are ideal for washing, rinsing, cleaning and many other spray applications. Quarter-turn quick-connect convenience of spray tips keeps production lines running by minimizing maintenance time and ensuring automatic spray pattern alignment.

Based on your current criteria, all products belong to this model

Model

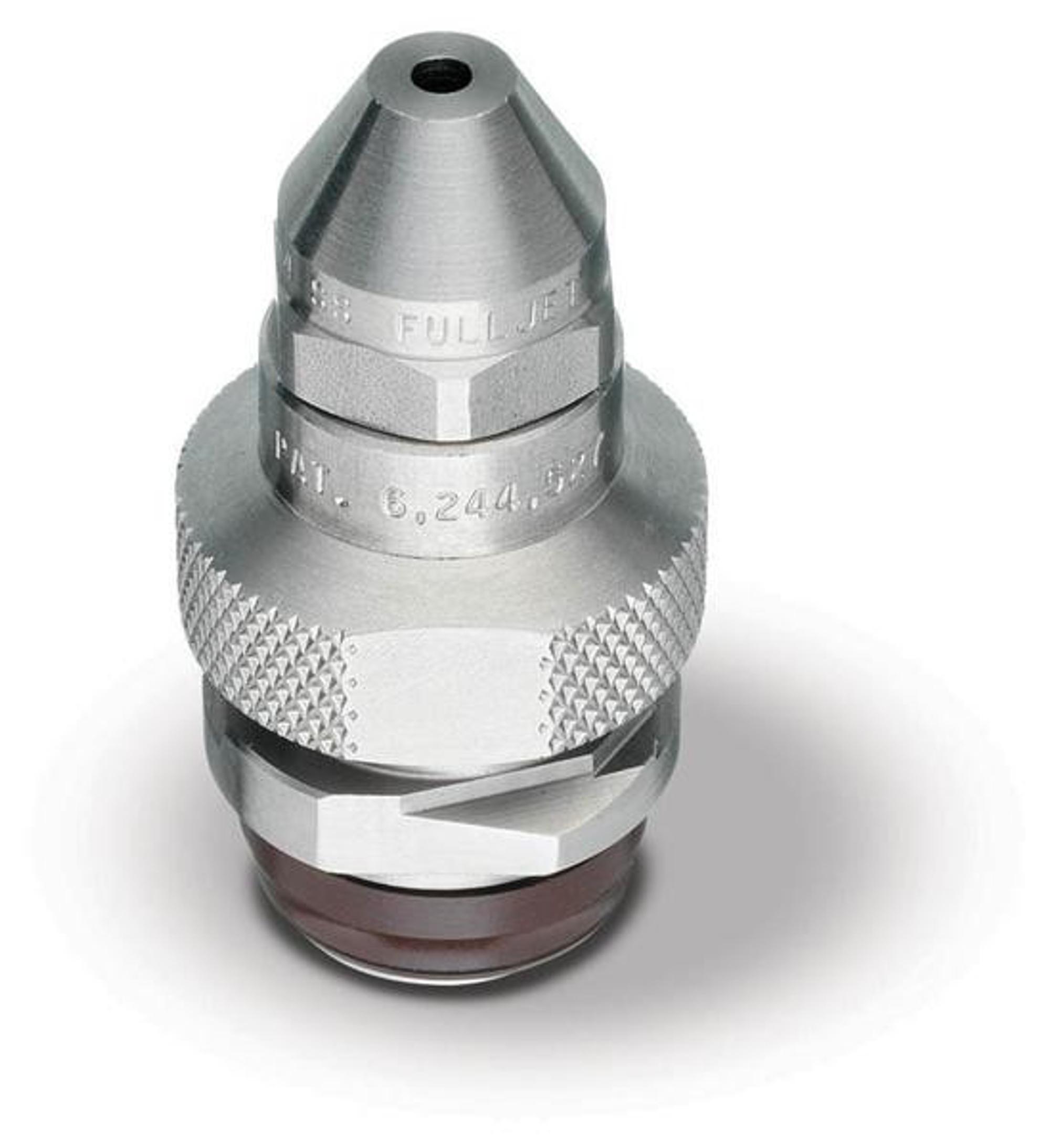

QGA-15, QLGA-15

Quick FullJet® Full Cone Nozzle Systems - 15° Spray Angle - Removable Cap/Vane

General information

Reduce maintenance time – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips with automatic alignment
Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced
Spray angles: Standard – 43° to 91°, Narrow – 15° or 30°, Wide – 102° to 120°
Uniform spray distribution from .10 to 19.4 gpm (.38 to 72 lpm)
Operating pressures up to 300 psi (20 bar)
Choice of metal or ProMax materials. ProMax features:
- ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 150 psi (10 bar)
- Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
- Optional external O-ring protects nozzle from contaminants
- Tips are color-coded for easy flow rate identification
