Found 22 products across 1 model
SprayFinder®
Operating Conditions
Liquid Flow Rate
≈
l/min
Liquid Pressure
=
bar
Specific Gravity
Model
Materials
Mesh Size
Capacity Size
Relative Drop Size Group
UniJet® Hollow Cone Nozzles
UniJet® hollow cone spray tips and nozzle bodies provide the convenience of a nozzle that can be disassembled for maintenance or tip replacement. Standard angle and wide angle sprays are available.
Based on your current criteria, all products belong to this model
Model
TN-SSTC

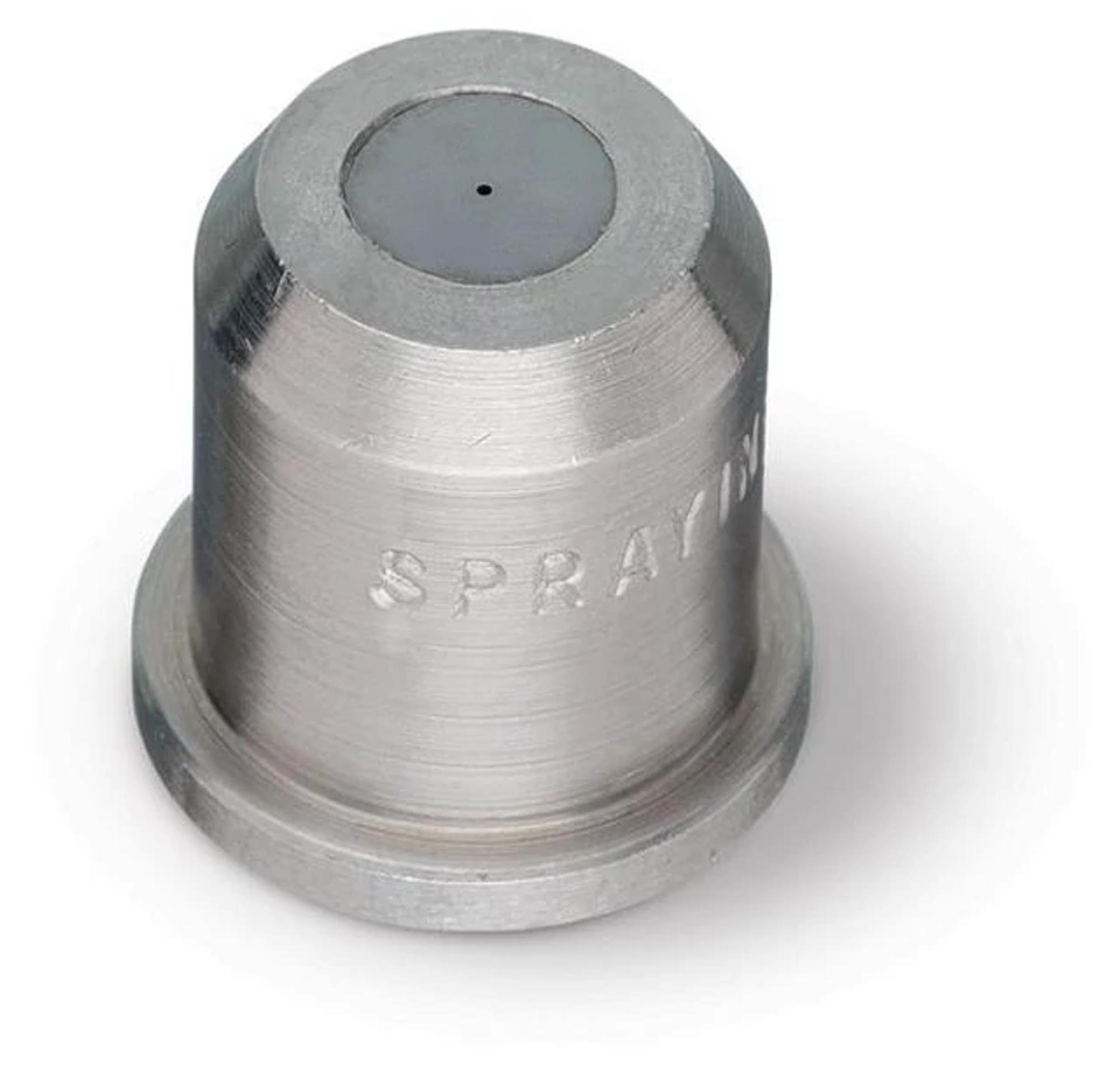

UniJet® Hollow Cone Nozzle Systems - Fine Spray - SSTC Insert
General information
- Quick-connect nozzles reduce maintenance time – bodies remain on pipe/header
- Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced; tips fit on male or female bodies
- Hollow cone spray pattern with a circular impact area
- Excellent atomization at relatively low pressures
- Spray angles: Standard – 13° to 114°, Wide – 130° to 140°
- Uniform spray distribution from 3.6 to 4,920 gph (13.2 to 17,760 lph)
- Operating pressures up to 400 psi (25 bar)
- Orifice inserts, cores and strainers are easily removed for inspection or cleaning
- TN versions provide very fine atomized sprays using liquid pressure alone; compressed air not required
- Spray angles: Standard – 43° to 91°
- Uniform spray distribution from .82 to 184 gph (3.1 to 701 lph)
- Operating pressures up to 2000 psi (140 bar)
TN-SSTC4High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|4|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC3High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|50|3|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC6High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|6|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC2High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|50|2|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC8High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|8|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC1.5High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|50|1.5|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC10High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|10|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC1High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|50|1|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC.80High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|50|.80|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
TN-SSTC12High-Pressure, Hollow Cone, UniJet® Nozzle, 303 Stainless Steel & Tungsten Carbide
303 Stainless Steel, Tungsten Carbide|12|10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
