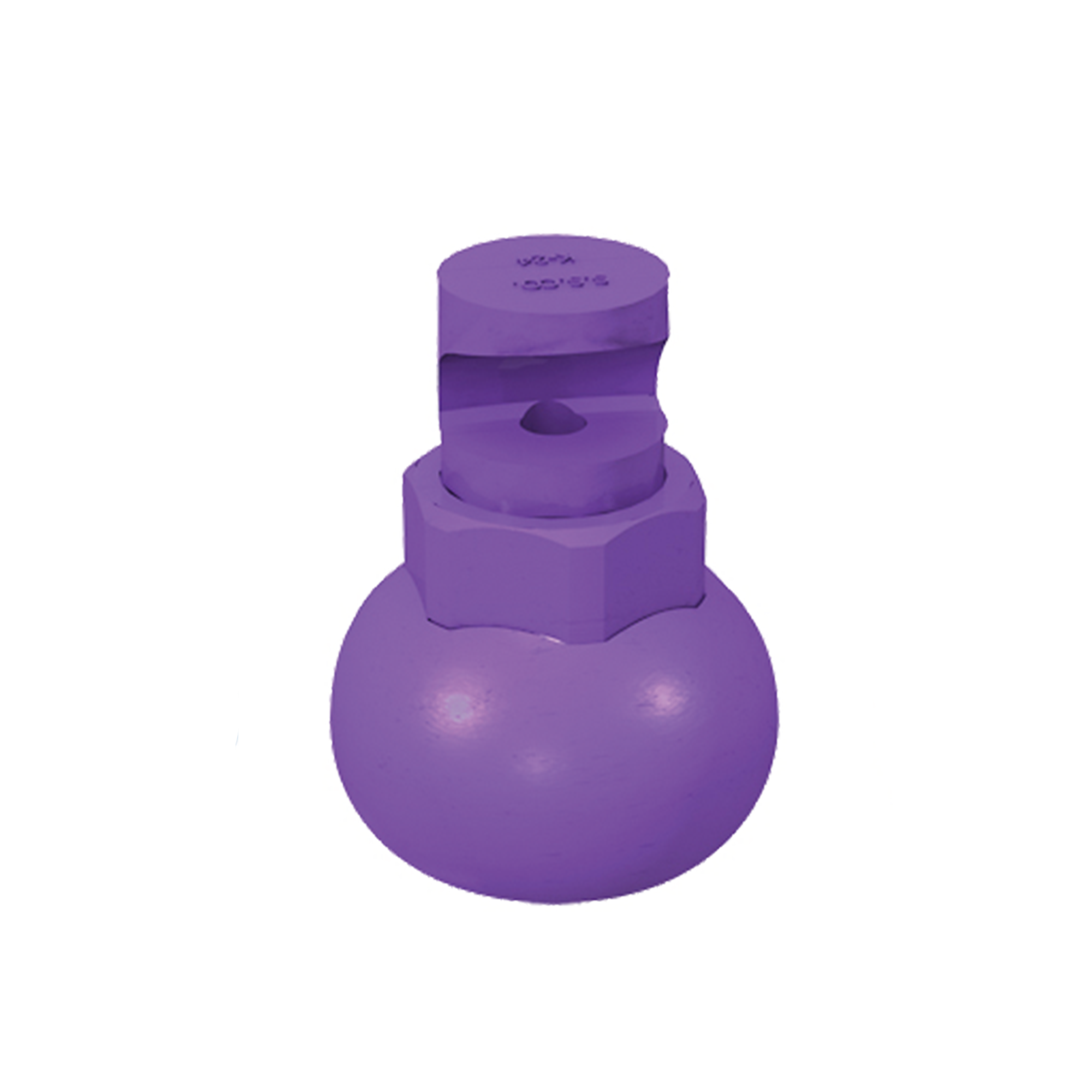

Clip-Eyelet® Extra Wide Angle Spray Tip, CK24

Model:

General Information

Description

  • Deflected, flooding tips provide extra wide angle flat sprays for Clip-Eyelet® nozzle assemblies
  • Ball-type spray tips allow the spray pattern to be directed precisely at the surfaces being sprayed
  • No tools required for spray tip installation or replacement
  • Chemically-resistant polypropylene material
  • Color-coded spray capacities range from .35 to 15.5 gpm (1.2 to 58 l/min)
  • Spray angles from 124° to 178°

Specification Summary

Product Type
Tip

Product Downloads

Documents

Product Performance

Liquid Flow Rate

Spray Angle

Specifications

Configuration

Capacity Size
24
Liquid Flow Rate at Rated Pressure
18.2 l/min
Product Type
Tip

Performance

Spray Angle
136° @ 0.48 bar, 147° @ 1.38 bar, 156° @ 4.14 bar

Product Category

Spray Angle Catalog Code
Wide

Standard Feature

Color
Purple
Equivalent Orifice Diameter
4.11 mm
Rated Pressure
2.76 bar
Spray Pattern
Flat Spray
