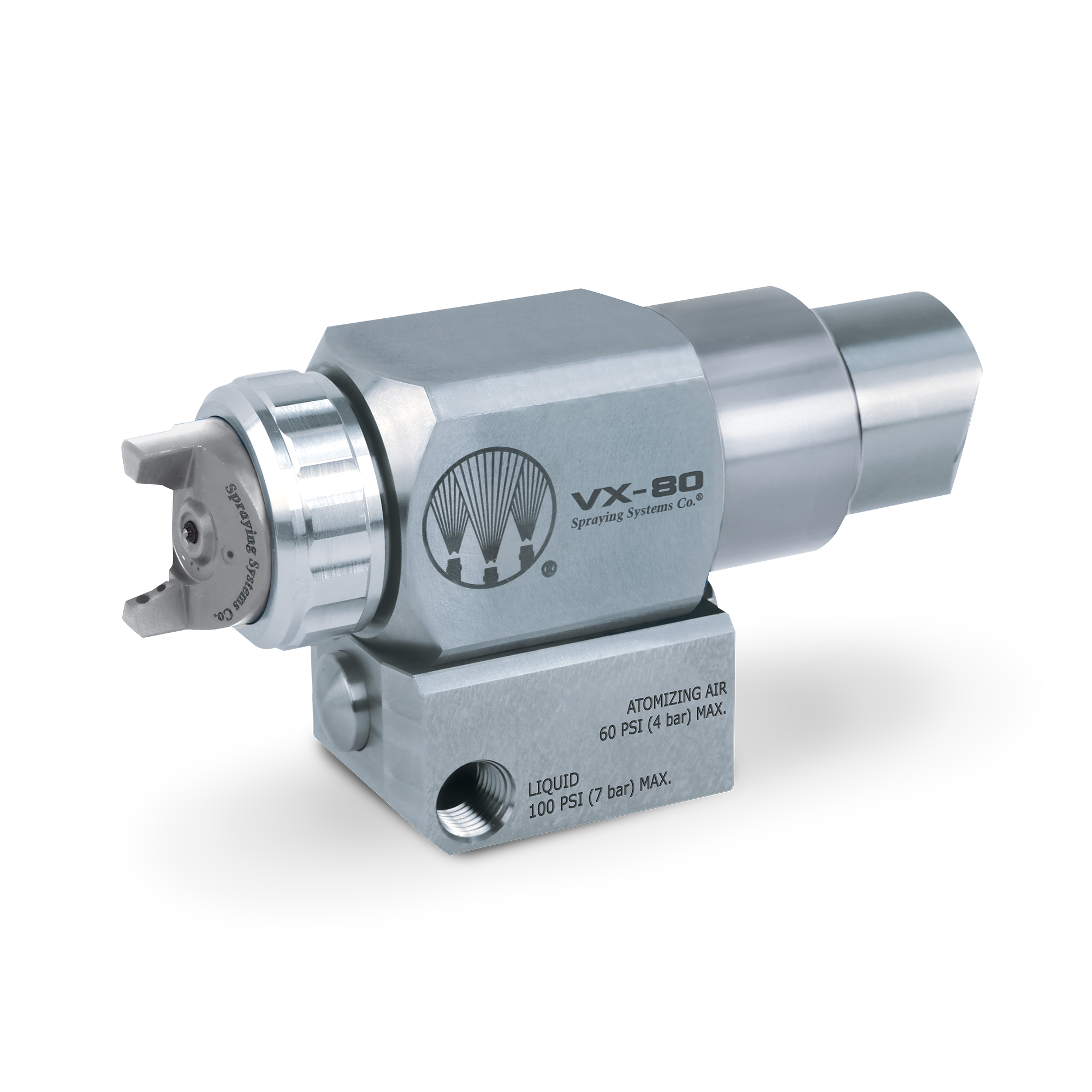

Automatic Air-Actuated Air Atomizing Nozzle, Brass, VX80

Model:

Images are representative.

General Information

Description

  • Manual metering knob for liquid control (optional fixed end cap if not desired)
  • Automatic air atomizing and fan air shut-off
  • Threaded exhaust port and filter/vent
  • Liquid recirculation
  • Quick-release mounting block
  • Large, easy-to-clean internal passages
  • Material hardened 17-4PH fluid nozzles
  • 316 stainless steel sanitary nozzle bodies; components in compliance with FDA and EU regulations

Specification Summary

Inlet Connection Gender
Female
Material Composition
316 Stainless Steel sanitary nozzle bodies with components in compliance with FDA and EU regulations
Maximum Flow
4.9 l/min
Maximum Operating Speed
250 cpm
Maximum Pressure
6.9 bar
Maximum Temperature
82 °C
Product Type
Nozzle
Inlet Connection Size
1/4 in @ Air Line, 1/4 in @ Liquid Line
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line

Product Downloads

Documents

B750A VX-Series Automatic Air Atomizing Nozzles
Catalog DetailB750A VX-Series Automatic Air Atomizing Nozzles

Other

Specifications

Configuration

Inlet Connection Gender
Female
Material Composition
316 Stainless Steel sanitary nozzle bodies with components in compliance with FDA and EU regulations
Model
VX80
Product Type
Nozzle
Design Feature
Has shutoff needle, Is recirculating
Inlet Connection Size
1/4 in @ Air Line, 1/4 in @ Liquid Line
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line

Standard Feature

Height
74.7 mm
Length
141.7 mm
Maximum Air Pressure
3.1 bar
Maximum Flow
4.9 l/min
Maximum Operating Speed
250 cpm
Maximum Pressure
6.9 bar
Maximum Temperature
82 °C
Spray Tips
Contact Spraying Systems Co.
Width
44.5 mm
