SprayFinder®
Operating Conditions
Liquid Flow Rate
≈
l/min
Liquid Pressure
=
bar
Specific Gravity
Spray Angle
Model
Materials
Inlet Connection Type
Inlet Connection Size
Design Feature
Capacity Size
Relative Drop Size Group
Estimated Ready to Ship
Spray Angle at Rated Pressure
Square/Oval Spray Full Cone Nozzles
Full cone nozzles with both standard and wide angle spray patterns are available with square and oval impact areas. These nozzles are used for a broad range of applications including low pressure rinsing and washing where a square or oval impact area is preferred.
Based on your current criteria, all products belong to this model

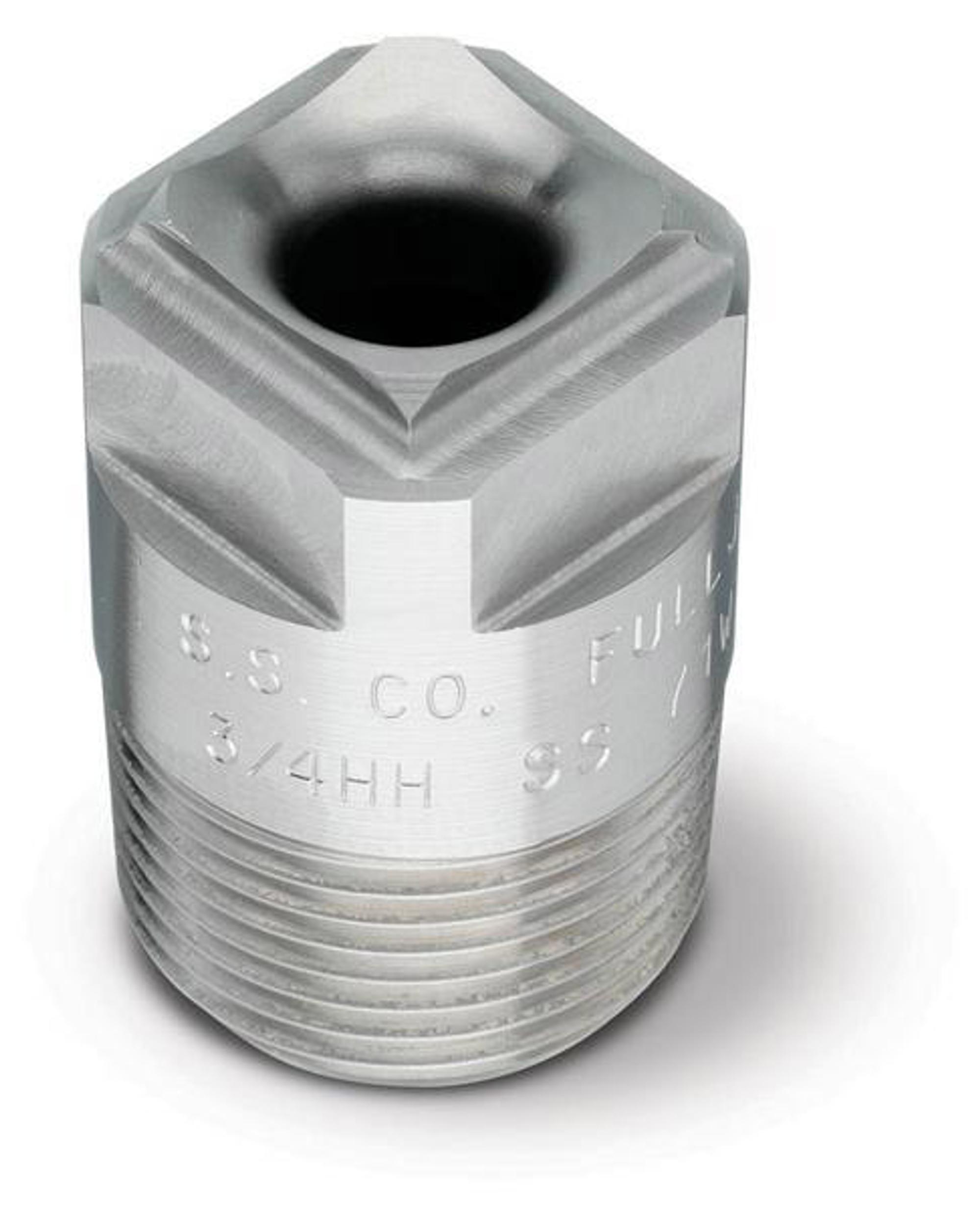

Model
H-WSQ, HH-WSQ
FullJet® Full Cone Nozzles - Wide Angle Square Spray
General information
- Cone-shaped spray pattern with square-like impact area for coverage of rectangular areas or spray zones
- Unique vane design and large flow passages provide superior spray pattern control
- Uniform spray distribution from .26 to 1977 gpm (1.1 to 7371 lpm)
- Operating pressures up to 150 psi (10 bar)
- Spray angles: Standard – 43° to 94°, Wide – 112° to 120°
1/4HH-14WSQFullJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/4 in|Has Guide Vane|14WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|101°
1/4HH-SS14WSQFullJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|Has Guide Vane|14WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|101°
1/2HH-SS35WSQFullJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/2 in|Has Guide Vane|35WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|110°
1/2HH-35WSQFullJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/2 in|Has Guide Vane|35WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|110°
1/2HH-50WSQFullJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/2 in|Has Guide Vane|50WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|110°
3/4HH-71WSQFullJet® Nozzle, Brass
Brass|Threaded (Male NPT)|3/4 in|Has Guide Vane|71WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|110°
1HH-130WSQFullJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1 in|Has Guide Vane|130WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|110°
1/2HH-30WSQFullJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/2 in|Has Guide Vane|30WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|110°
1/4HH-316SS14WSQFullJet® Nozzle, 316 Stainless Steel
316 Stainless Steel|Threaded (Male NPT)|1/4 in|Has Guide Vane|14WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|More than 14 days|101°
1/2HH-SS50WSQFullJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/2 in|Has Guide Vane|50WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|Between 7 and 14 days|110°
