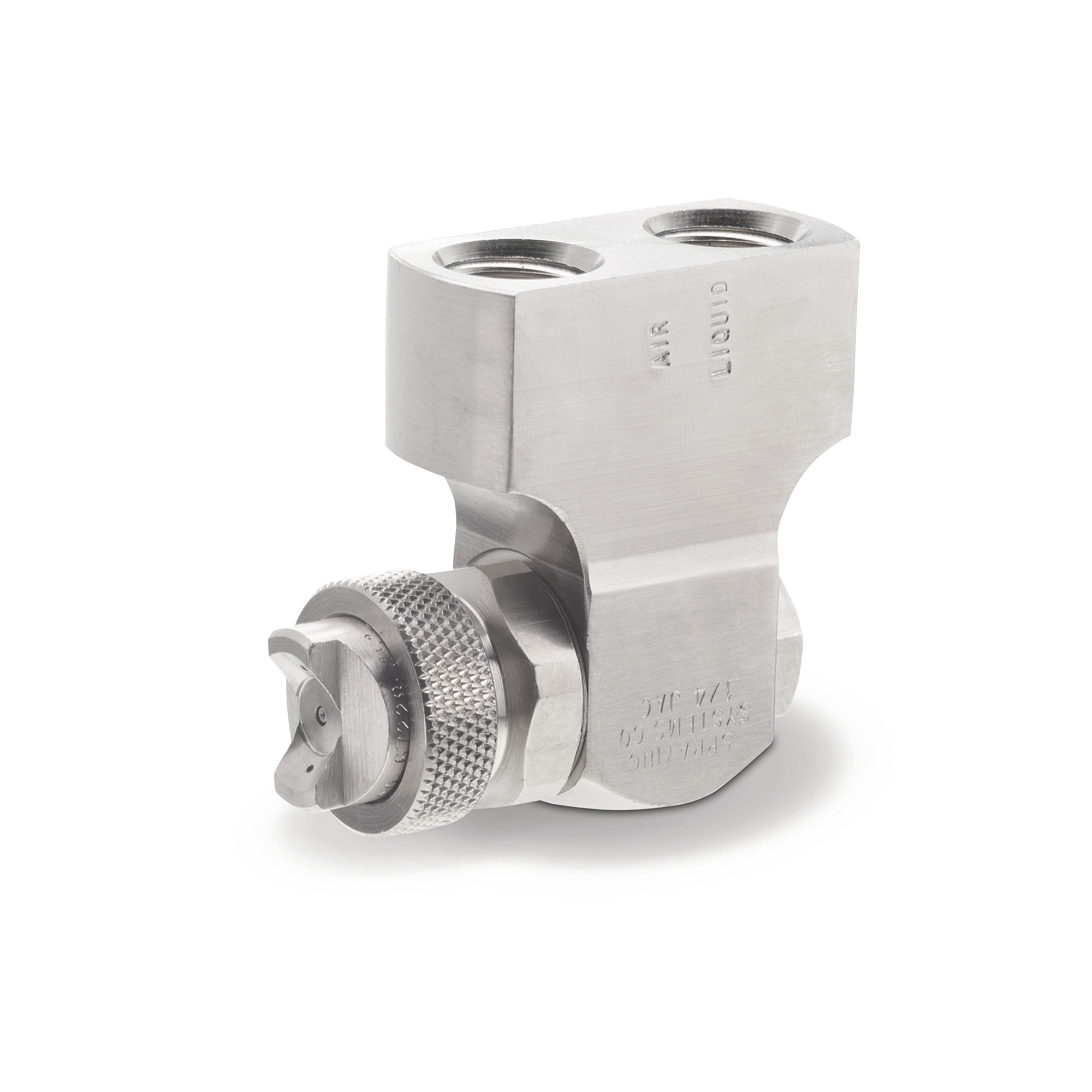

Air Atomizing Assembly, 1/4JAC+SUE45A

Model:

Images are representative.

Product Configuration

Inlet Connection Thread Type:NPT
Material Composition:Brass

General Information

Description

Air Atomizing Assembly

Specification Summary

Inlet Connection Gender
Female
Inlet Connection Size
1/4 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Female NPT)
Liquid Flow Rate Range
65.87 - 169.21 l/h
Material Composition
Brass
Maximum Temperature
71 °C
Spray Pattern
Flat Spray
Product Type
Nozzle Assembly

Product Downloads

Documents

C76B-AA-AUTO Metric 1-4J Series Nozzles
Catalog DetailC76B-AA-AUTO Metric 1-4J Series Nozzles
CC76B-AA-AUTO Metric Set-Ups SUE15B SUE18B SUE15A SUE18A SUE15 SUE18 SUE25B SUE28B SUE25A SUE28A SUE28 SUE25 SUE45B SUE45A SUE45
Catalog DetailCC76B-AA-AUTO Metric Set-Ups SUE15B SUE18B SUE15A SUE18A SUE15 SUE18 SUE25B SUE28B SUE25A SUE28A SUE28 SUE25 SUE45B SUE45A SUE45

Product Performance

Liquid Flow Rate

for 0.21 bar (Liquid Pressure)
for 0.35 bar (Liquid Pressure)
for 0.7 bar (Liquid Pressure)
for 1.4 bar (Liquid Pressure)

Air Flow Rate

for 0.21 bar (Liquid Pressure)
for 0.35 bar (Liquid Pressure)
for 0.7 bar (Liquid Pressure)
for 1.4 bar (Liquid Pressure)

Specifications

Configuration

Body Type
J
Inlet Connection Gender
Female
Inlet Connection Size
1/4 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Female NPT)
Material Composition
Brass
Model
1/4J Air Atomizing Assemblies
Setup Mix Type
External Mix
Setup Type
Pressure Spray Product
Product Type
Nozzle Assembly

Sales Part Numbers

Body Sales Part Number
1/4JAC
Set-up Sales Part Number
SUE45A

Standard Feature

Liquid Flow Rate Range
65.87 - 169.21 l/h
Maximum Temperature
71 °C
Number Of Set-ups
1
Spray Pattern
Flat Spray
