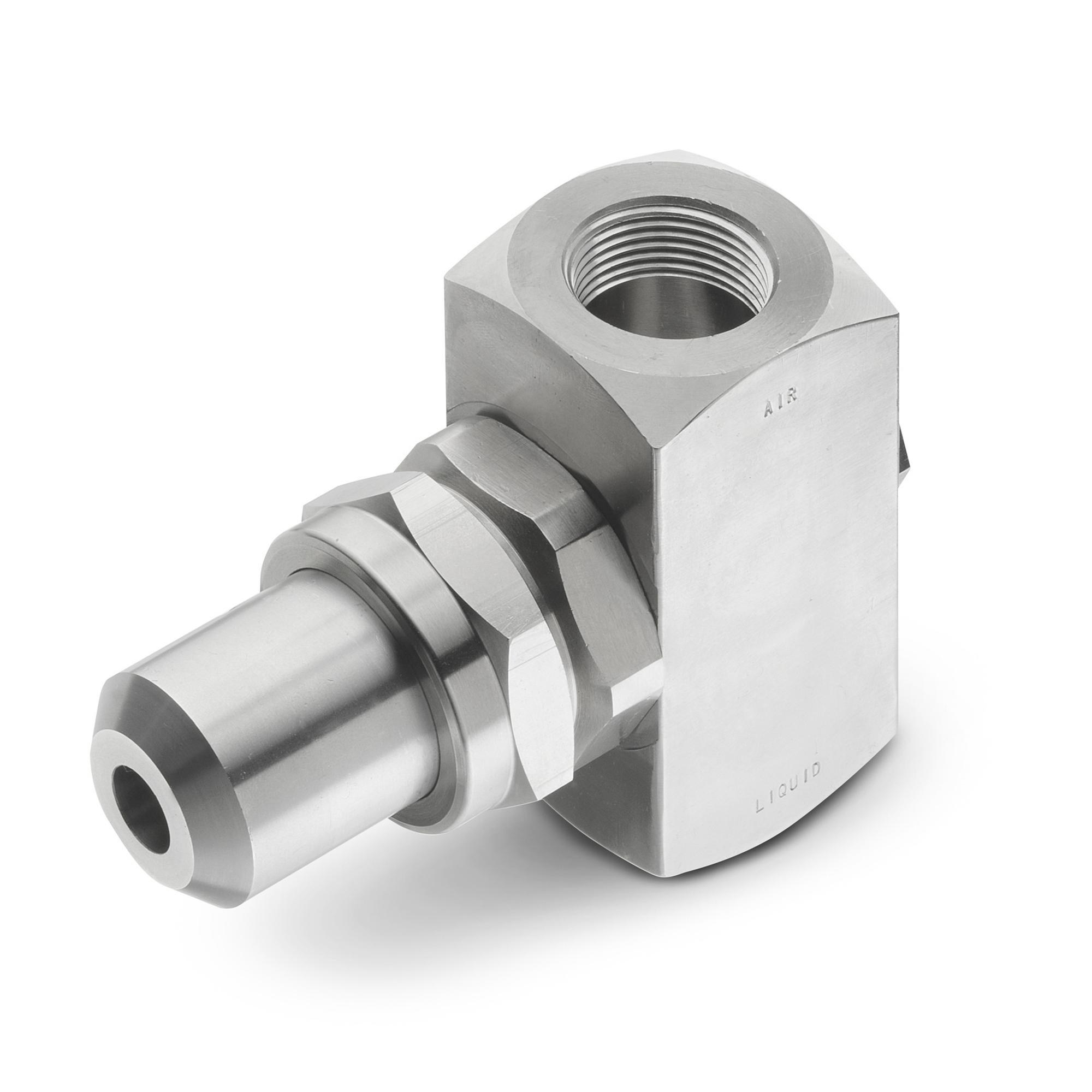

Air Atomizing Assembly, 1J-SS+SU159-SS

Product Configuration

Inlet Connection Thread Type:NPT
Material Composition:303 Stainless Steel

General Information

Description

Air Atomizing Assembly

Specification Summary

Inlet Connection Gender
Female
Inlet Connection Size
1 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Female NPT)
Liquid Flow Rate Range
363.4 - 2,407.52 l/h
Material Composition
303 Stainless Steel
Maximum Temperature
71 °C
Spray Pattern
Wide Angle Round Spray
Product Type
Nozzle Assembly

Product Downloads

Documents

Product Performance

Liquid Flow Rate

for 0.7 bar (Liquid Pressure)
for 1.4 bar (Liquid Pressure)
for 2.1 bar (Liquid Pressure)
for 2.8 bar (Liquid Pressure)
for 4.2 bar (Liquid Pressure)

Specifications

Configuration

Body Type
J
Inlet Connection Gender
Female
Inlet Connection Size
1 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Female NPT)
Material Composition
303 Stainless Steel
Model
1J Air Atomizing Assemblies
Setup Mix Type
External Mix
Setup Type
Siphon/Gravity Spray Product
Product Type
Nozzle Assembly

Sales Part Numbers

Body Sales Part Number
1J-SS
Set-up Sales Part Number
SU159-SS

Standard Feature

Liquid Flow Rate Range
363.4 - 2,407.52 l/h
Maximum Temperature
71 °C
Number Of Set-ups
1
Spray Pattern
Wide Angle Round Spray
