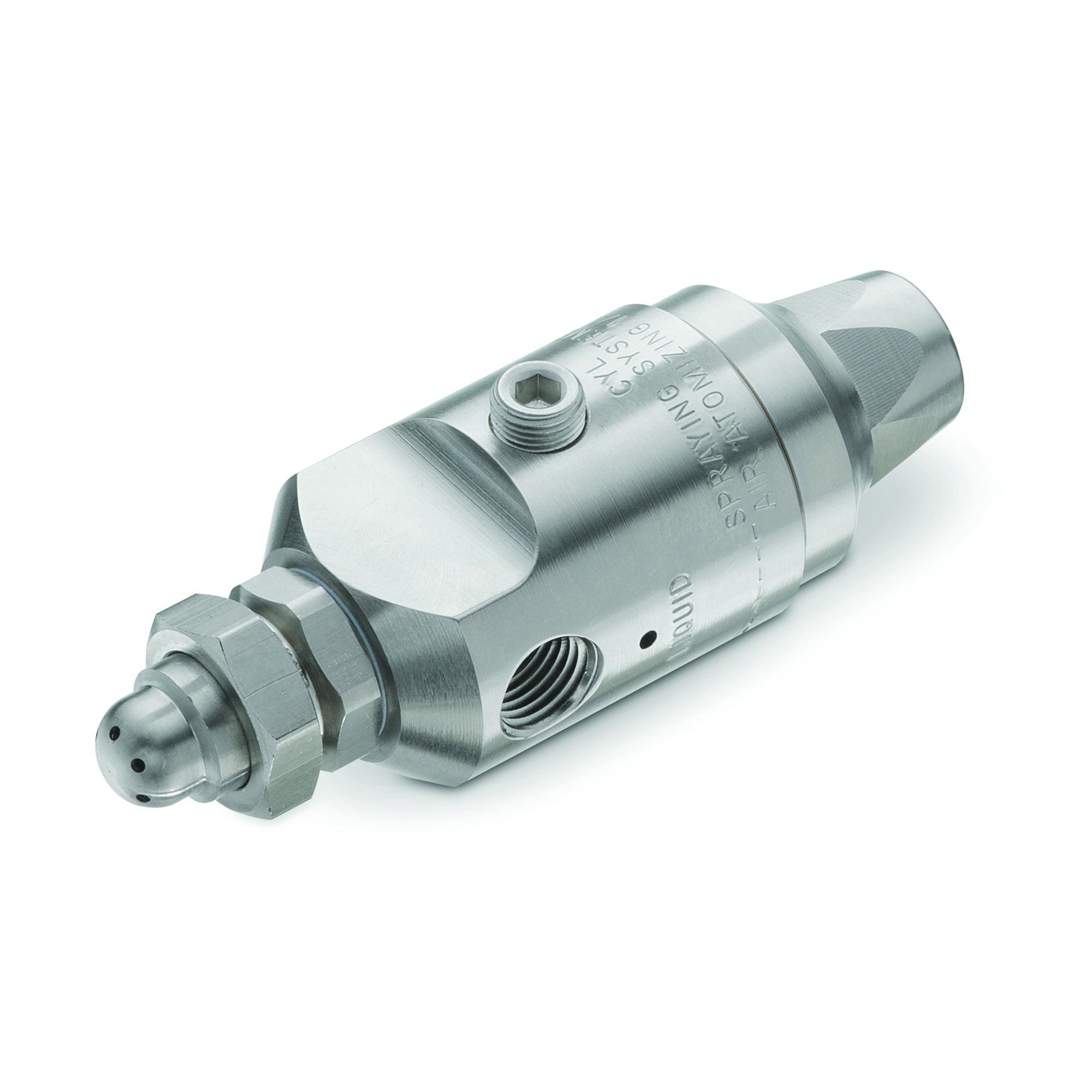

Air-Actuated Air Atomizing Nozzle with 1/4" Inlet and Single Air Inlet for Cylinder and Atomizing Air, for Large Fluid Caps, 13242-1/4JAU

Images are representative.

General Information

Description

Flow rates up to 1.2 gpm (4.5 lpm)
Drip Free™ set-ups provide complete shut-off
Nickel-plated brass or stainless steel construction
Knurled Single air inlet for cylinder and atomizing air. Used specifically for large fluid caps (PF80_and PF100_ )

Specification Summary

Inlet Connection Gender

Female

Maximum Flow

1.2 gpm

Maximum Operating Speed

180 cpm
