FogJet® Fine Spray Nozzles - Narrow Angle, FF

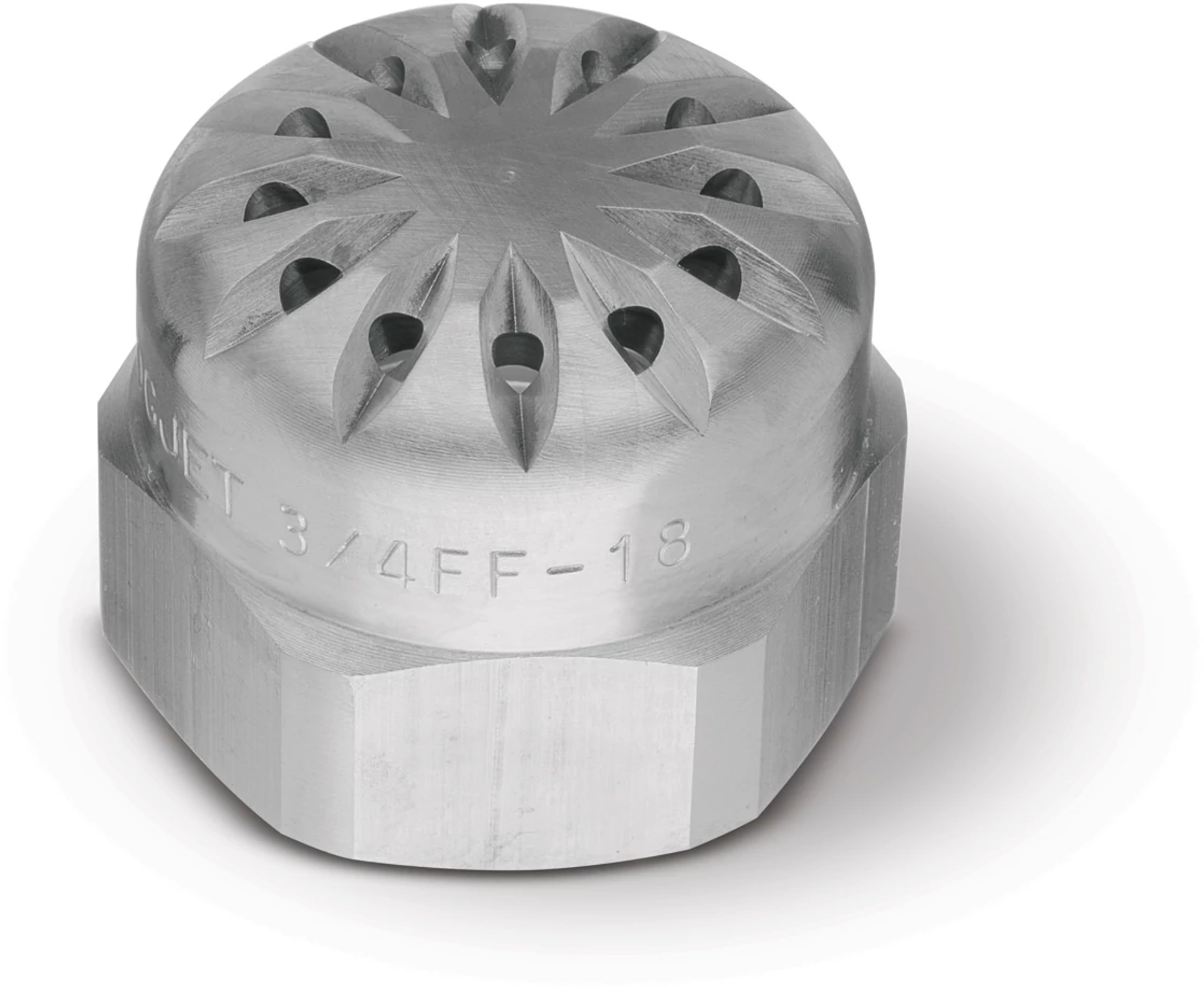

Images are representative.
Images are representative. Products may differ in material or configuration.
General Information
Description
- Finely atomized sprays without use of compressed air; ideal for fogging a larger area with a single nozzle
- 7N and 7G nozzles produce a shower-like full cone wide angle spray pattern
- FF nozzles produce a dense, narrow, hollow cone spray pattern
- 7N and 7G assemblies include a nozzle body and seven removable caps. Each cap has an internal core or vane which is easily removed for cleaning
- Widely used in fire protection, dust control and rain simulation applications
- Uniform spray distribution from .11 to 136 gpm (.42 to 505 lpm)
- Operating pressures from 20 to 150 psi (1.5 to 10 bar)
Specification Summary
Inlet Connection Gender
Female
Female
Liquid Pressure Range
20 - 150 psi
1 - 10 bar
Relative Drop Size Range
100 - 1,000 µm
100 - 1,000 µm
Spray Pattern
Fine Spray
Fine Spray
Product Type
Nozzle
Nozzle
