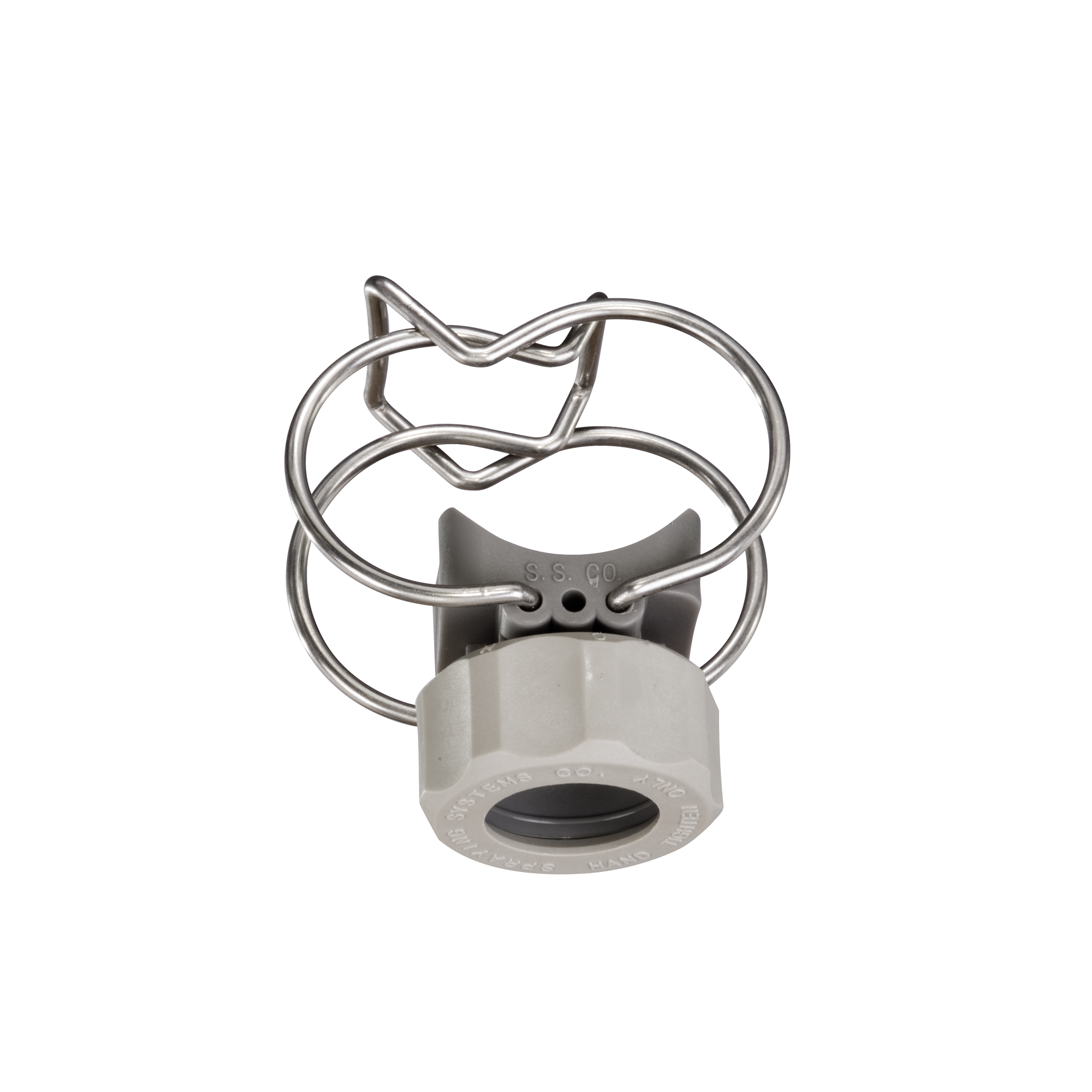

Clip-Eyelet® Nozzle Body, Polypropylene Block Copolymer, 20570D-1-1/2-PPB
Images are representative.
Images are representative. Products may differ in material or configuration.
General Information
Description
- Snap-on pipe connection for use on 1-1/2" pipe
- Spring-grade stainless steel single- and double-clamp versions
- Chemical- and corrosion-resistant materials withstand high temperatures
- Inlet sizes for 9/16" (14.5 mm) or 21/32" (17 mm) dia. drill holes, retrofit seals are available for 27/32" (21 mm) dia. drill holes
- For use with Clip-Eyelet ball-type spray tips, optional threaded ball allows for use with conventional nozzles, blank spray tip available to prevent liquid flow
- Ball-type tips allow quick adjustment of spray direction without disturbing pipe connection
- Ideal for cleaning, coating and rinsing applications
Specification Summary
Inlet Connection Size
21/32 in
21/32 in
Material Composition
Polypropylene Block Copolymer
Polypropylene Block Copolymer
Product Type
Body
Body
Product Downloads
Specifications
Configuration
Inlet Connection Size
21/32 in
21/32 in
Material Code
PPB
PPB
Material Composition
Polypropylene Block Copolymer
Polypropylene Block Copolymer
Product Type
Body
Body
Standard Feature
A Dimension
2 in
51 mm
B Dimension
3.375 in
86 mm
C Dimension
1.875 in
48 mm
Clamp Design
Double
Double
Color
Black
Black
Inner Clamp Sales Part Number
CP20575-l-1-1/2-304SSPV
CP20575-l-1-1/2-304SSPV
Outer Clamp Sales Part Number
CP20575-1-1/2-304SSPV
CP20575-1-1/2-304SSPV
Pipe Size
1-1/2 in
1-1/2 in
