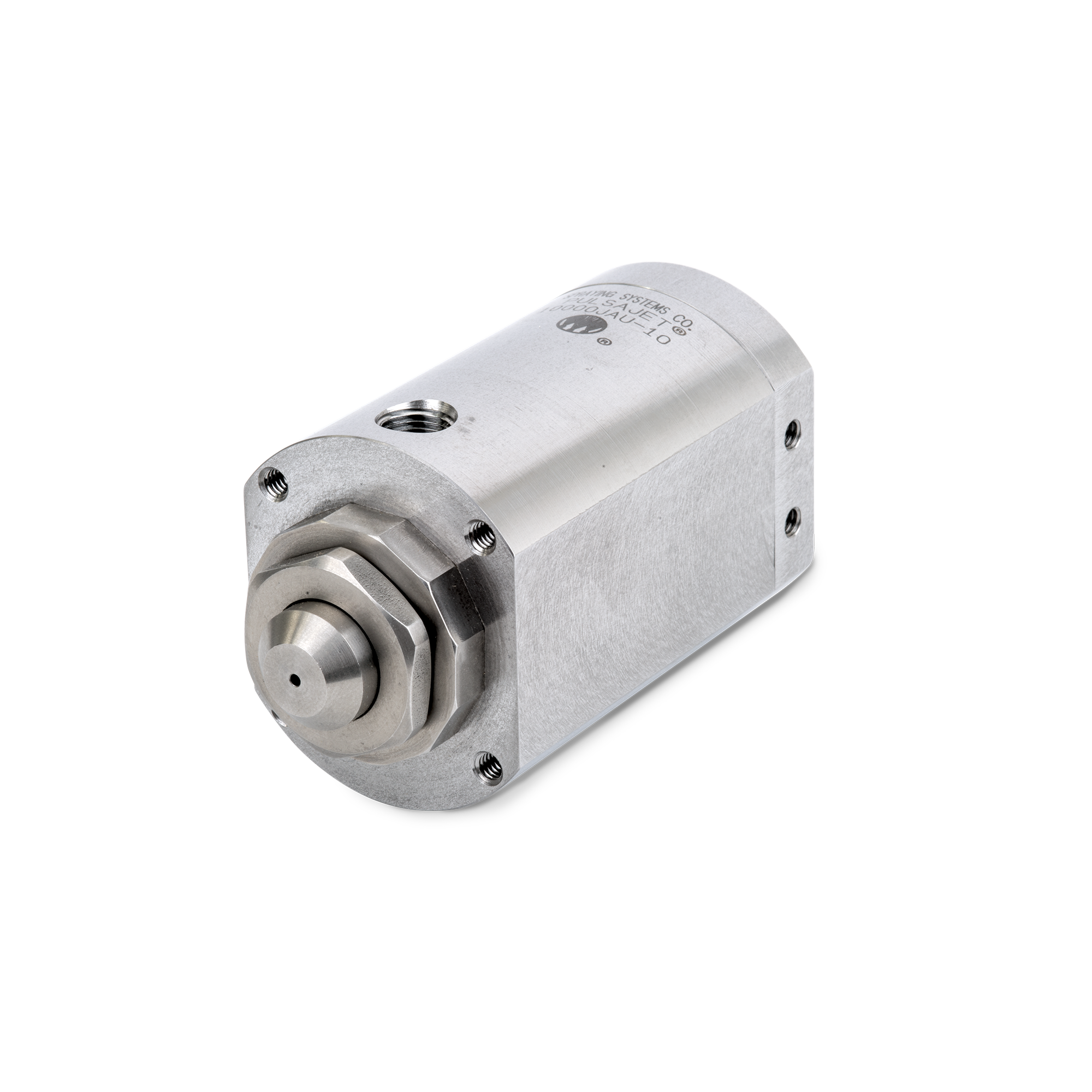

Automatic Electrically-Actuated Air Atomizing Nozzle, AA10000JAU-10

Model:

Images are representative.
+ 9

Product Configuration

Inlet Connection Thread Type:NPT

General Information

Description

  • Rear liquid inlet; side air inlet Flow rates up to 0.75 gpm (2.84 lpm)
  • Stainless steel, PPS and PEEK construction with Viton or EPDM seals
  • All wear parts accessible from the front of the nozzle without disturbing mounting and air/liquid/ electrical connections
  • For use with standard 1/4J air caps and threadless 1/4J fluid caps (maximum size 80100)

Specification Summary

Inlet Connection Gender
Female
Inlet Connection Thread Type
NPT
Material Composition
Stainless Steel, Viton® or EPDM seals, PPS and PEEK
Maximum Flow
0.75 gpm
Maximum Operating Speed
5,000 cpm
Maximum Pressure
100 psi
Maximum Temperature
200 °F
Product Type
Nozzle
Voltage
24 V
Inlet Connection Size
1/4 in @ Air Line, 1/4 in @ Liquid Line
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line

Product Downloads

Documents

C76B-AA-AUTO US Automatic Nozzles Electrically-Actuated Air-Atomizing
Catalog DetailC76B-AA-AUTO US Automatic Nozzles Electrically-Actuated Air-Atomizing
B632E PanelSpray Systems
Product BulletinB632E PanelSpray Systems
B712C Industrial PulsaJet Nozzles
Product BulletinB712C Industrial PulsaJet Nozzles
CS212 Bakery Saves with Auto Spray-System
Case StudyCS212 Bakery Saves with Auto Spray-System
CS283 Wire Dramatically Reduces Lubricant Use with Automated Spray System System
Case StudyCS283 Wire Dramatically Reduces Lubricant Use with Automated Spray System System
CS190 Steel-Mill-Reduces-Oil-Costs
Case StudyCS190 Steel-Mill-Reduces-Oil-Costs

Other

Specifications

Configuration

Inlet Connection Gender
Female
Inlet Connection Thread Type
NPT
Material Composition
Stainless Steel, Viton® or EPDM seals, PPS and PEEK
Model
AA10000JAU-10
Product Type
Nozzle
Inlet Connection Size
1/4 in @ Air Line, 1/4 in @ Liquid Line
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line

Standard Feature

Amperage
1.05 A
Cap Hex Size
1 in
Height
1.98 in
Length
3.61 in
Maximum Air Pressure
100 psi
Maximum Flow
0.75 gpm
Maximum Operating Speed
5,000 cpm
Maximum Pressure
100 psi
Maximum Temperature
200 °F
Spray Tips
Contact Spraying Systems Co.
Voltage
24 V
Width
1.63 in
