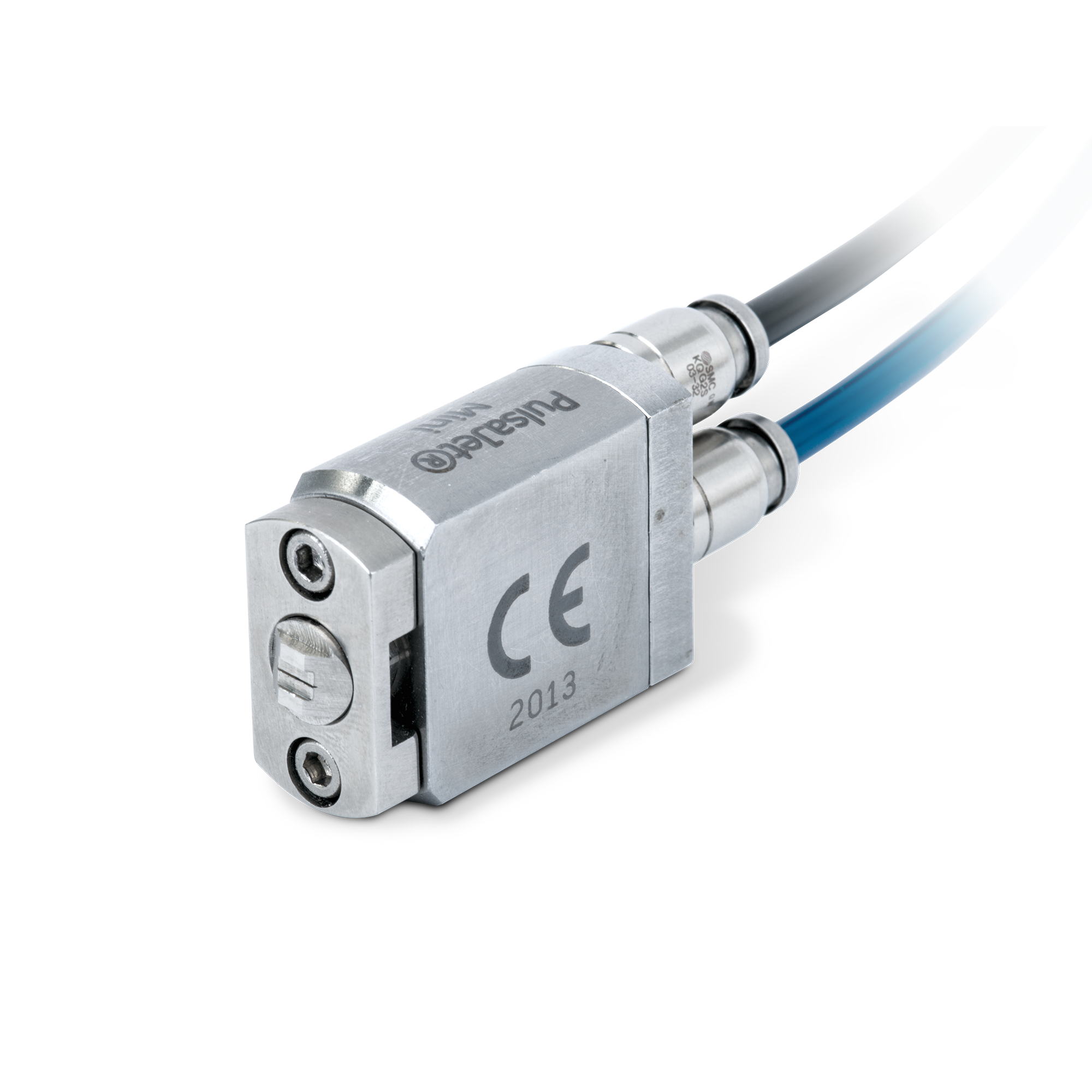

PulsaJet® Mini Electrically-Actuated Hydraulic Nozzle, Compact Design, AA10000AUH-0050
Model
AA10000AUH-0050
PulsaJet® Mini Electrically-Actuated Hydraulic Nozzle, Compact Design
Model Specifications
Material CompositionStainless Steel, Viton® or EPDM seals, PPS and PEEK
Maximum Pressure14 bar
Voltage48 V
Maximum Operating Speed25,000 cpm
Product TypeNozzle
Maximum Flow0.3 l/min
General Information
Description
- Miniature design for applications with limited space
- Typical flow range: 0.0009 - 0.08 gpm (0.003 - 0.30 lpm)
- Construction: Stainless steel, Viton or EPDM seals, PPS and PEEK
- Available only as a part of the PulsaJet® Mini Low Flow Spray System (with AutoJet® spray controller
Specification Summary
Material Composition
Stainless Steel, Viton® or EPDM seals, PPS and PEEK
Maximum Flow
0.3 l/min
Maximum Operating Speed
25,000 cpm
Maximum Pressure
14 bar
Product Type
Nozzle
Voltage
48 V
