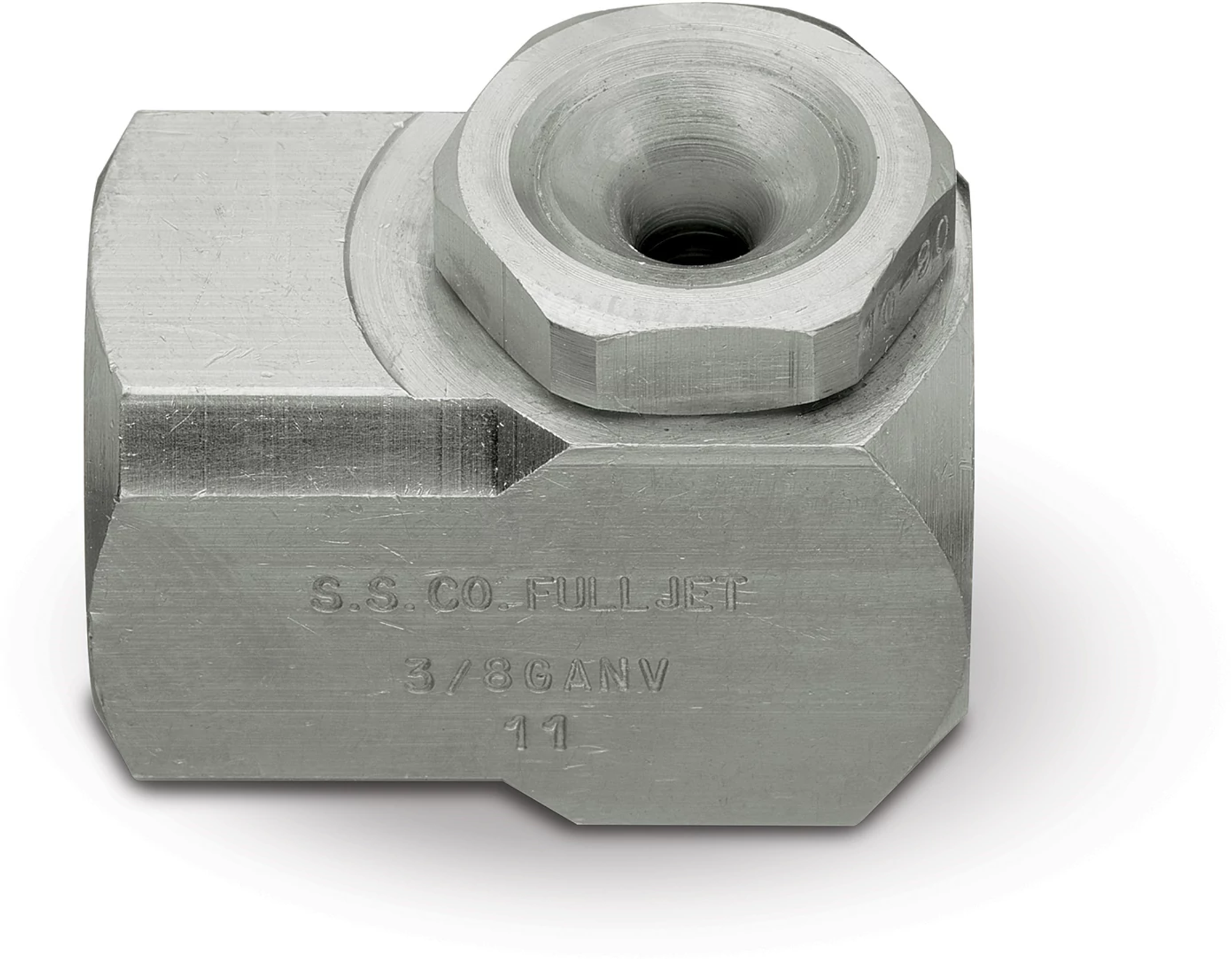

FullJet® Full Cone Nozzles - Right Angle Type - Vaneless design, GANV, GGANV

Images are representative.
+ 2

General Information

Description

  • Solid cone-shaped spray pattern with round impact area
  • Uniform spray distribution from .35 to 23 gpm (1.4 to 87 lpm)
  • Operating pressures up to 100 psi (7 bar)
  • No vane for unrestricted flow – coarse spray is projected at 90° from axis at the inlet
  • Spray angles: Standard – 43° to 94°

Specification Summary

Liquid Pressure Range
0.4 - 6 bar
Spray Pattern
Full Cone
Product Type
Nozzle

Alternative Models

Model
R, RR, RF
R, RR, RFDistriboJet® Full Cone Nozzles - Extra Large Free Passage
Model
HMFP, HHMFP

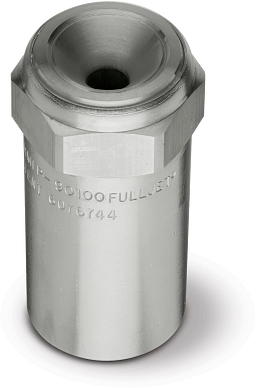

HMFP, HHMFPFullJet® Full Cone Nozzles - Maximum Free Passage
Model
HHSJX

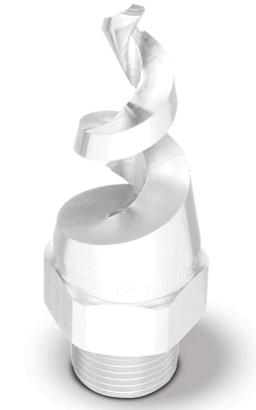

HHSJXSpiralJet® Full Cone Spiral Nozzles - Extra Large Free Passage
Model
HHSJ

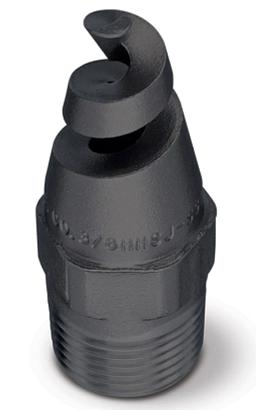

HHSJSpiralJet® Full Cone Spiral Nozzles - Large Free Passage
