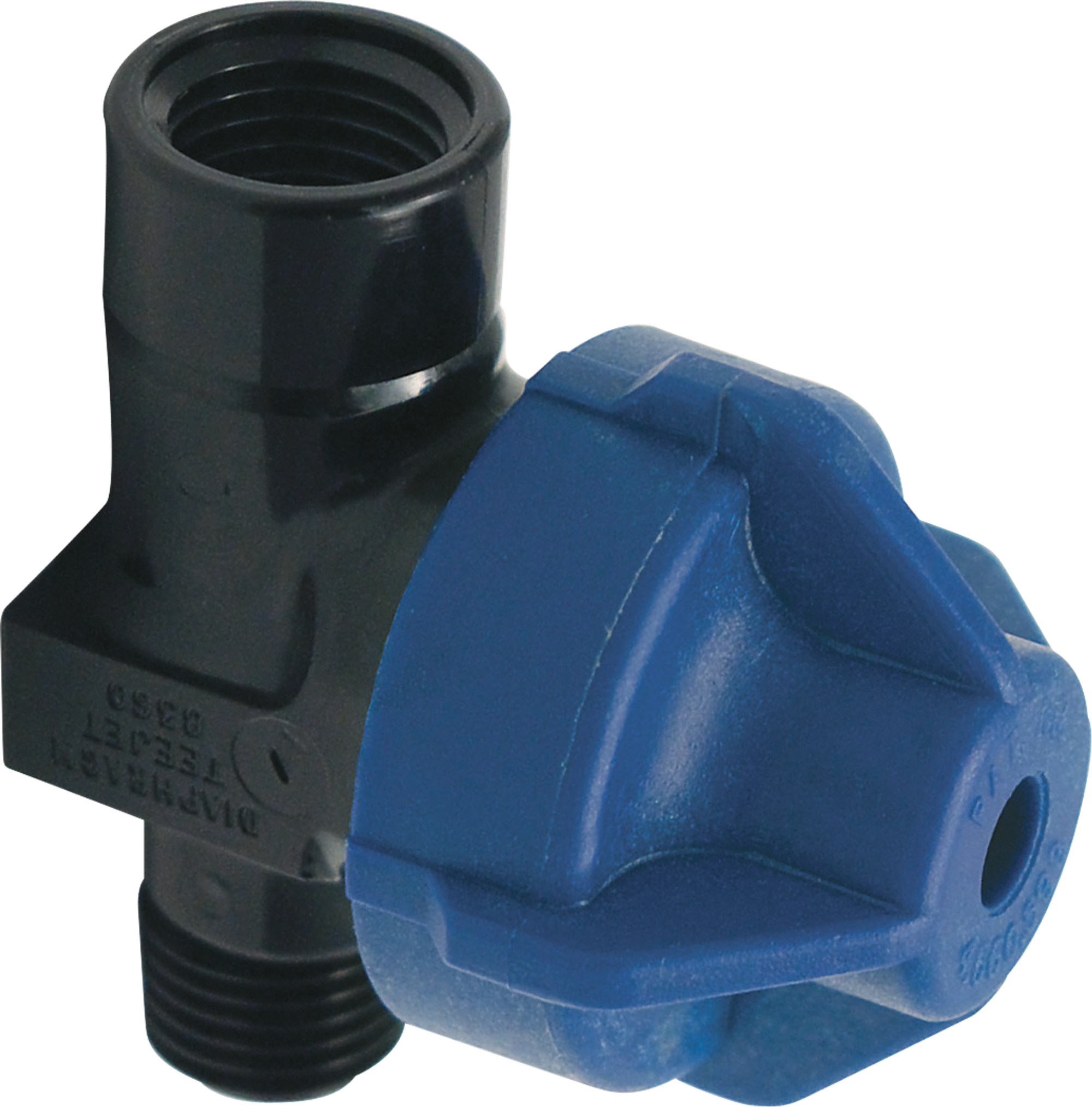

UniJet® Diaphragm Check Valve Nozzle Body, 8360-NY-BL-2
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Opening Pressure:0.14 bar
General Information
Description
- Diaphragm design minimizes pressure loss through check valve
- Stainless steel valve seat
- For use with UniJet spray tips and caps
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Material Composition
Nylon
Nylon
Maximum Flow
7.57 l/min
2 gpm
Outlet Connection Gender
Male
Male
Outlet Connection Size
11/16-16 in
11/16-16 in
Outlet Connection Type
UniJet
UniJet
Product Type
Body
Body
Product Downloads
Specifications
Configuration
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Material Composition
Nylon
Nylon
Outlet Connection Gender
Male
Male
Outlet Connection Size
11/16-16 in
11/16-16 in
Outlet Connection Type
UniJet
UniJet
Product Type
Body
Body
Product Category
Brand
TeeJet®
TeeJet®
Standard Feature
A Dimension
3.61 cm
1.42 in
B Dimension
2.59 cm
1.02 in
Check Valve Type
Diaphragm
Diaphragm
Length
5.21 cm
2.05 in
Maximum Flow
7.57 l/min
2 gpm
Opening Pressure
0.14 bar
2 psi
Weight
25 g
0.88 oz
Width
4.47 cm
1.76 in
