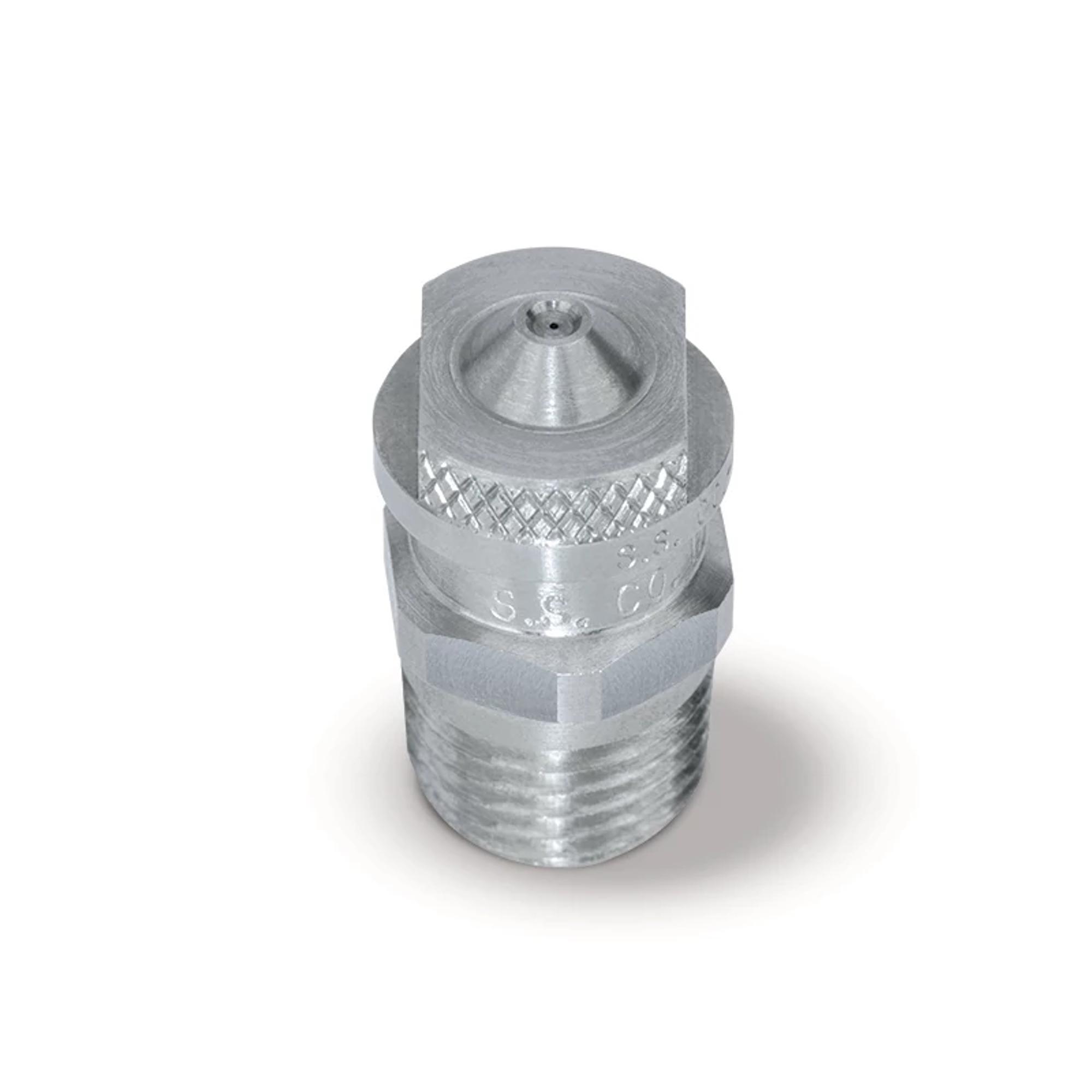

QuickVeeJet® Nozzle, 303 Stainless Steel, B1/4QJJS-SS+QSVV-SS000021
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Inlet Connection Size:1/4 in
Inlet Connection Thread Type:BSPT
Inlet Connection Type:Threaded (Male BSPT) + Quick-Connect
Material Composition:303 Stainless Steel
General Information
Description
- Ideal for high-maintenance operations – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips in seconds
- Automatic alignment feature saves time
- Miniature versions are ideal when smaller physical size and lower weight are important
- Flat fan type, tapered edge spray pattern
- Spray angles from 0° to 110°
- Uniform spray distribution with flow rates from .035 to 68 gpm (.14 to 255 lpm)
- Operating pressures up to 300 psi (20 bar)
- Choice of metal or ProMax. ProMax features:
- ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 150 psi (10 bar)
- Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
- Optional external O-ring protects nozzle from contaminants
- Tips are color-coded for easy flow rate identification
Specification Summary
Inlet Connection Gender
Male
Inlet Connection Size
1/4 in
Inlet Connection Thread Type
BSPT
Inlet Connection Type
Threaded (Male BSPT) + Quick-Connect
Liquid Flow Rate Range
0.026 - 0.197 l/min
Liquid Pressure Range
0.4 - 20 bar
Material Composition
303 Stainless Steel
Relative Drop Size Range
100 - 500 µm
Spray Pattern
Solid Stream
Product Type
Nozzle Assembly
Product Downloads
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Configuration
Body Type
QJJS
Capacity Size
0021
Inlet Connection Gender
Male
Inlet Connection Size
1/4 in
Inlet Connection Thread Type
BSPT
Inlet Connection Type
Threaded (Male BSPT) + Quick-Connect
Liquid Flow Rate at Rated Pressure
0.087 l/min
Material Code
SS
Material Composition
303 Stainless Steel
Model
QSVV
Spray Angle at Rated Pressure
0°
Tip Type
QSVV
Product Type
Nozzle Assembly
Drop Sizes
Relative Drop Size Group
100 - 500 µm (Light Rain)
Performance
Spray Angle Range
0 - 0°
Spray Angle
0° @ 2.758 bar, 0° @ 1.5 bar
Product Category
Brand
Quick VeeJet®
Spray Angle Catalog Code
Standard
Sales Part Numbers
Body Sales Part Number
B1/4QJJS-SS
Tip Sales Part Number
QSVV-SS000021
Standard Feature
Equivalent Orifice Diameter
0.33 mm
Liquid Flow Rate Range
0.026 - 0.197 l/min
Liquid Pressure Range
0.4 - 20 bar
Rated Pressure
2.76 bar
Relative Drop Size Range
100 - 500 µm
Spray Pattern
Solid Stream
Weight
0.03 kg
