VeeJet, HB1/4VV-CKY6505
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Capacity Size:5
Spray Angle at Rated Pressure:65°
General Information
Description
- Color-coded for ease of spray angle identification
- Constructed of PVDF for excellent chemical resistance
- Nozzle body is standard 7/16" hex size and has a flange for easy installation and removal using a socket wrench
- Flats facilitate proper alignment of spray pattern
- Optional removable strainer
- Use with 12687 strainer
Specification Summary
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
BSPT
BSPT
Material Composition
PVDF
PVDF
Product Type
Nozzle
Nozzle
Spray Pattern
Flat Spray
Flat Spray

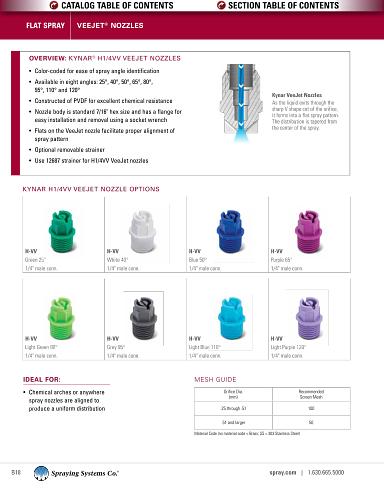

Product Downloads
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Configuration
Capacity Size
5
5
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
BSPT
BSPT
Liquid Flow Rate at Rated Pressure
1.89 l/min
0.5 gpm
Material Composition
PVDF
PVDF
Product Type
Nozzle
Nozzle
Spray Angle at Rated Pressure
65°
65°
Performance
Spray Angle
53° @ 1.38 bar, 65° @ 2.76 bar, 72° @ 5.52 bar, 76° @ 13.79 bar
53° @ 20 psi, 65° @ 40 psi, 72° @ 80 psi, 76° @ 200 psi
Product Category
Brand
VeeJet®
VeeJet®
Standard Feature
Equivalent Orifice Diameter
1.42 mm
0.056 in
Rated Pressure
2.76 bar
40 psi
Spray Pattern
Flat Spray
Flat Spray
