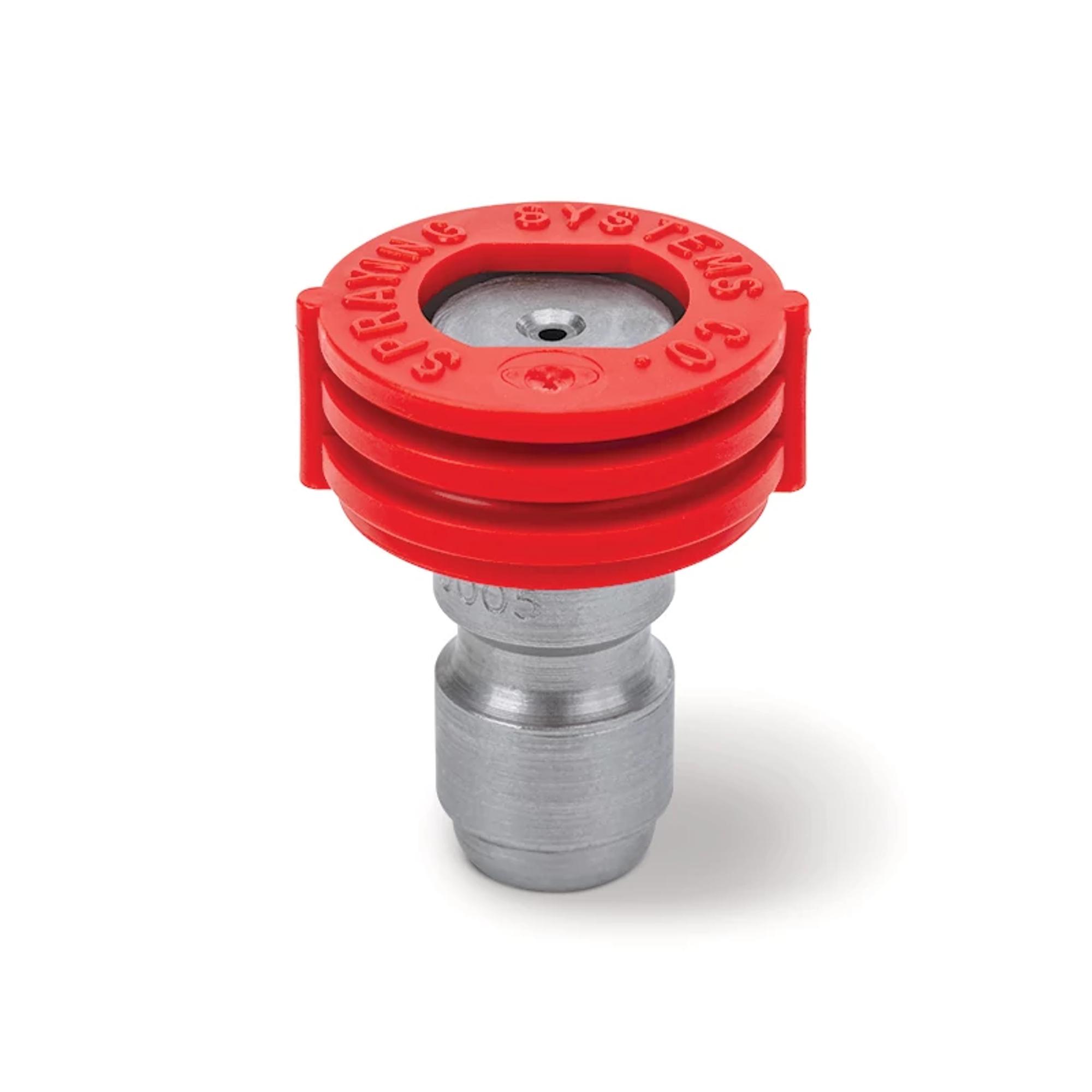

Quick-Connect WashJet® Nozzle, Hardened Stainless Steel, QCMEG-0005
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Has Guide Vane:Yes
General Information
Description
- QCMEG and QCIMEG fit in Parker® ST fitting or equivalent
- Color-coded nozzle guards for easy spray angle identification
- Locating ribs on nozzle guards for fast alignment and easy spray pattern direction
- High impact sprays and high pressure operation ensure effective cleaning
- Long wear life – 400 series stainless steel material
- Uniform spray distribution from .55 to 15 gpm (2.0 to 57 lpm) by using optional internal guide vane to stabilize liquid turbulence
- Spray angles from 0° (solid stream) to 40°
- QCIMEG versions are ideal for critical, demanding operations. Features:
- Patented design that optimizes fluid dynamics by minimizing turbulence
- Higher impact per unit area than QCMEG nozzles
Flow
As the liquid exits through the rounded U shape of the orifice, it forms into a flat spray pattern. The distribution is even at pressures above 300 psi (20 bar).
Specification Summary
Impact Group
High Impact
High Impact
Inlet Connection Type
Quick-connect
Quick-connect
Liquid Flow Rate Range
2 - 18.9 l/min
0.5 - 5 gpm
Liquid Pressure Range
2 - 275 bar
40 - 4,000 psi
Material Composition
Hardened Stainless Steel
Hardened Stainless Steel
Relative Drop Size Range
500 - 5,000 µm
500 - 5,000 µm
Spray Pattern
Solid Stream
Solid Stream
Product Type
Nozzle
Nozzle
Product Downloads
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Product Performance
Liquid Flow Rate
Specifications
Configuration
Capacity Size
05
05
Inlet Connection Type
Quick-connect
Quick-connect
Liquid Flow Rate at Rated Pressure
1.89 l/min
0.5 gpm
Material Composition
Hardened Stainless Steel
Hardened Stainless Steel
Model
QCMEG
QCMEG
Spray Angle at Rated Pressure
0°
0°
Tip Type
QCMEG
QCMEG
Design Feature
Has guide vane
Has guide vane
Product Type
Nozzle
Nozzle
Drop Sizes
Relative Drop Size Group
500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
Performance
Spray Angle
0° @ 3 bar
0° @ 40 psi
Spray Angle Range
0 - 0°
0 - 0°
Product Category
Brand
WashJet®
WashJet®
Impact Group
High Impact
High Impact
Spray Angle Catalog Code
Standard
Standard
Standard Feature
Diameter
2.461 cm
0.969 in
Length
3.096 cm
1.219 in
Liquid Flow Rate Range
2 - 18.9 l/min
0.5 - 5 gpm
Liquid Pressure Range
2 - 275 bar
40 - 4,000 psi
Rated Pressure
2.76 bar
40 psi
Relative Drop Size Range
500 - 5,000 µm
500 - 5,000 µm
Spray Pattern
Solid Stream
Solid Stream
Weight
0.02 kg
0.8 oz
