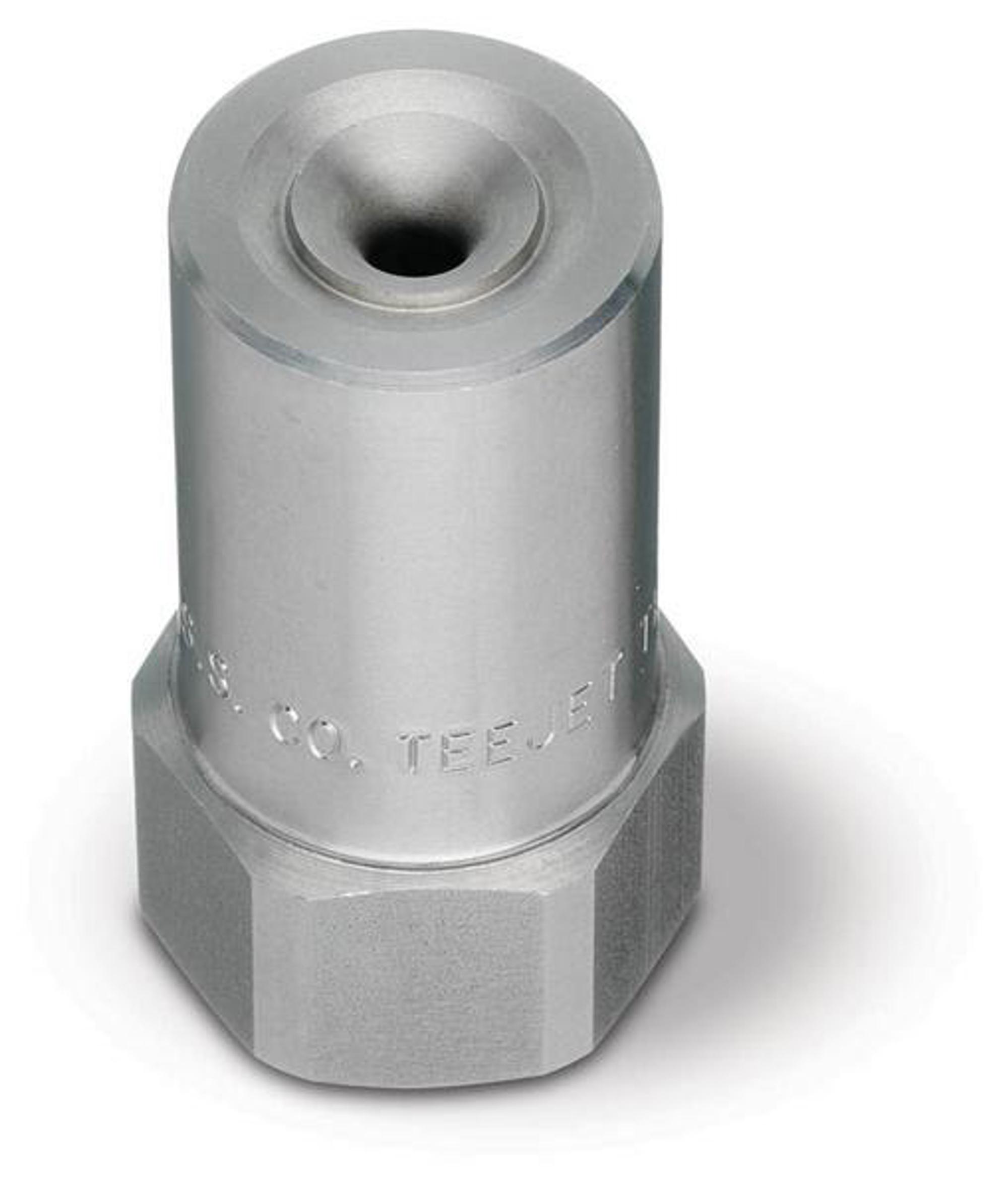

UniJet® Full Cone Nozzle Systems - Wide Angle Spray - One-piece Tip/Retainer, TH-W
Images are representative.
Images are representative. Products may differ in material or configuration.
General Information
Description
- Quick-connect nozzles reduce maintenance time –bodies remain on pipe/header
- Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced; tips fit on male or female bodies
- Solid cone-shaped spray pattern with round impact area or cone-shaped spray pattern with square-like impact area for coverage of rectangular areas or spray zones
- Spray angles: Standard – 43° to 91°, Wide – 112° to 120°
- Uniform spray distribution from .08 to 7.4 gpm (.3 to 28 lpm)
- Operating pressures up to 300 psi (20 bar)
Specification Summary
Relative Drop Size Range
100 - 1,000 µm
100 - 1,000 µm
Spray Pattern
Full Cone
Full Cone
