FloodJet®
FloodJet® nozzles produce a very wide angle flat spray pattern. As liquid passes through the nozzle, it hits the deflector surface and spreads out to form a flat spray pattern. The FloodJet orifice is protected from damage and minimizes clogging.
Based on your current criteria, all products belong to this model
Model
TEK

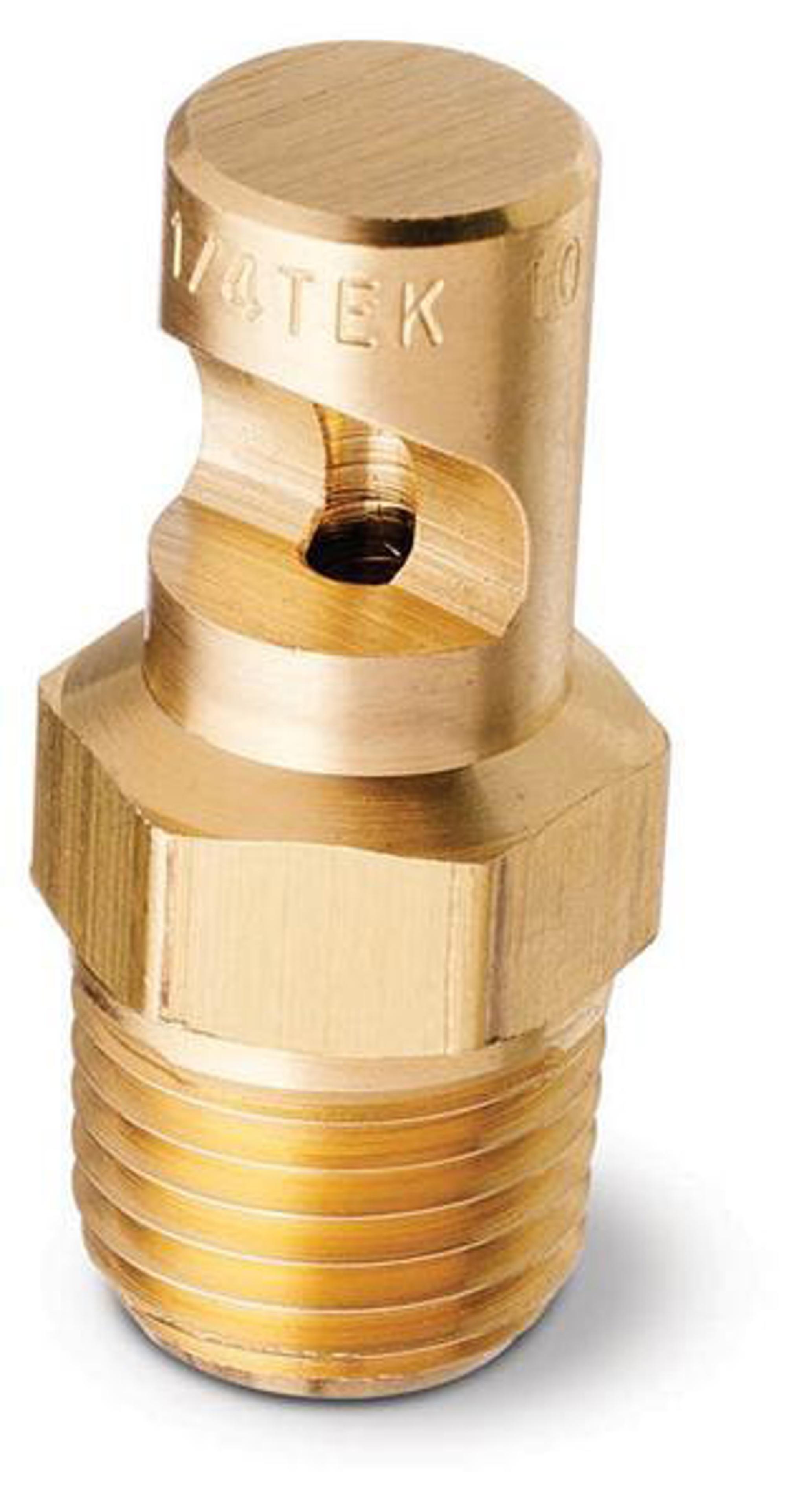

FloodJet® Deflected Flat Spray Nozzle Systems - Wide Angle Spray - Tapered Edge
General information
- Ideal for operations requiring wide coverage
- Wide angle, deflected type flat fan spray pattern
- Use when nozzles can be mounted horizontally
- Orifice is protected from damage and is designed to minimize clogging
- Spray angles from 73° to 153°
- Uniform spray distribution from .04 to 110 gpm
- Operating pressures up to 60 psi
- TEK provides a tapered edge spray pattern to eliminate heavy edges while maintaining the wide spray pattern
1/4TEK-SS2FloodJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|2|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4TEK-SS15FloodJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|15|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4TEK-SS10FloodJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|10|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4TEK-SS5FloodJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|5|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/8TEK-2FloodJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/8 in|2|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4TEK-SS20FloodJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/4 in|20|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/8TEK-3FloodJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/8 in|3|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/8TEK-SS2FloodJet® Nozzle, 303 Stainless Steel
303 Stainless Steel|Threaded (Male NPT)|1/8 in|2|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4TEK-5FloodJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/4 in|5|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
1/4TEK-10FloodJet® Nozzle, Brass
Brass|Threaded (Male NPT)|1/4 in|10|100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
