Hydraulic Nozzles
Hydraulic spray nozzles are precision components designed to yield very specific performance under specific conditions. They are available with specific spray patterns and they’re used for industrial operations such as cooling, coating, cleaning, lubricating, dust control and fire protection.
Based on your current criteria, all products belong to this model
Model

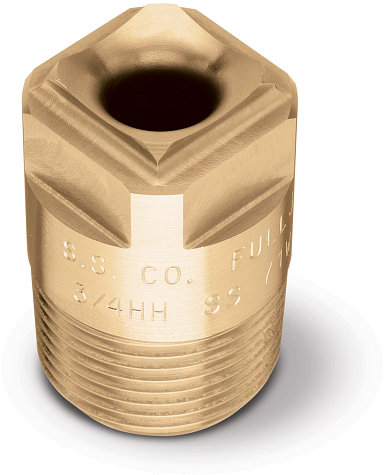

H-WSQ, HH-WSQ
FullJet® Full Cone Nozzles - Wide Angle Square Spray
General information
- Cone-shaped spray pattern with square-like impact area for coverage of rectangular areas or spray zones
- Unique vane design and large flow passages provide superior spray pattern control
- Uniform spray distribution from .26 to 1977 gpm (1.1 to 7371 lpm)
- Operating pressures up to 150 psi (10 bar)
- Spray angles: Standard – 43° to 94°, Wide – 112° to 120°
1/4HH-14WSQ
FullJet® Nozzle, BrassBrass|Threaded (Male NPT)|1/4 in|Has Guide Vane|14WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|101°
1/4HH-SS14WSQ
FullJet® Nozzle, 303 Stainless Steel303 Stainless Steel|Threaded (Male NPT)|1/4 in|Has Guide Vane|14WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|101°
1/2HH-SS35WSQ
FullJet® Nozzle, 303 Stainless Steel303 Stainless Steel|Threaded (Male NPT)|1/2 in|Has Guide Vane|35WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|110°
1/2HH-35WSQ
FullJet® Nozzle, BrassBrass|Threaded (Male NPT)|1/2 in|Has Guide Vane|35WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|110°
1/2HH-50WSQ
FullJet® Nozzle, BrassBrass|Threaded (Male NPT)|1/2 in|Has Guide Vane|50WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|110°
3/4HH-71WSQ
FullJet® Nozzle, BrassBrass|Threaded (Male NPT)|3/4 in|Has Guide Vane|71WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|110°
1HH-130WSQ
FullJet® Nozzle, BrassBrass|Threaded (Male NPT)|1 in|Has Guide Vane|130WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|110°
1/2HH-30WSQ
FullJet® Nozzle, BrassBrass|Threaded (Male NPT)|1/2 in|Has Guide Vane|30WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|110°
1/4HH-316SS14WSQ
FullJet® Nozzle, 316 Stainless Steel316 Stainless Steel|Threaded (Male NPT)|1/4 in|Has Guide Vane|14WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|101°
1/2HH-SS50WSQ
FullJet® Nozzle, 303 Stainless Steel303 Stainless Steel|Threaded (Male NPT)|1/2 in|Has Guide Vane|50WSQ|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|110°
