Model
HHSJ

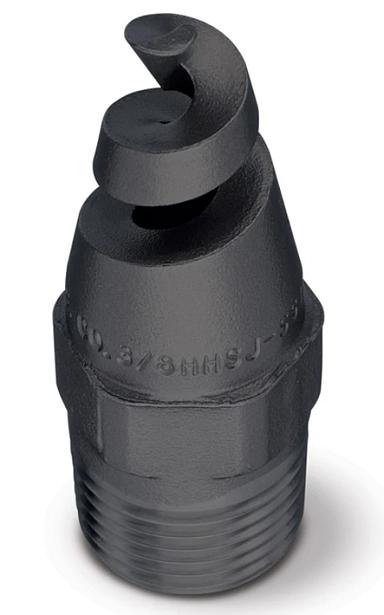

SpiralJet® Full Cone Spiral Nozzles - Large Free Passage
General information
- Spiral nozzles (also referred to as helix nozzles, corkscrew nozzles and pigtail nozzles) produce solid cone spray patterns with a circular impact area
- Open passages ideal for use with fluids with particulates
- Maximum liquid throughput for a given pipe size
- Spray angles from 60° to 170°
- Uniform spray distribution from .7 to 3320 gpm
- Operating pressures up to 400 psi
- Compact size enables easy installation or retrofit on most pipe systems
- Certain nozzles available with UL listing for fire protection applications
1/4HHSJ-PVC12007SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|1/4 in|07|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/4HHSJ-PVC12013SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|1/4 in|13|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
3/8HHSJ-PVC12030SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|3/8 in|30|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/2HHSJ-PVC120120SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|1/2 in|120|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/2HHSJ-PVC120164SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|1/2 in|164|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
3/8HHSJ-PVC12082SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|3/8 in|82|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1HHSJ-PVC120340SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|1 in|340|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
3/8HHSJ-PVC12040SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|3/8 in|40|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|120°
1/4HHSJ-PVC17013SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|1/4 in|13|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|170°
1/4HHSJ-PVC9020SpiralJet® Spiral Nozzle, Polyvinyl Chloride
Threaded (Male NPT)|1/4 in|20|500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)|90°
