UniJet®

UniJet® spray nozzles provide performance flexibility and reduce downtime. Interchangeable spray tips offer a convenient way to maintain spray systems and change spray performance when necessary. Nozzle bodies remain in place while spray tips are changed by simply unscrewing the retainer cap. Full cone, hollow cone and flat spray patterns are available with a wide range of flow rates.

Based on your current criteria, all products belong to this model

Model

TG-W

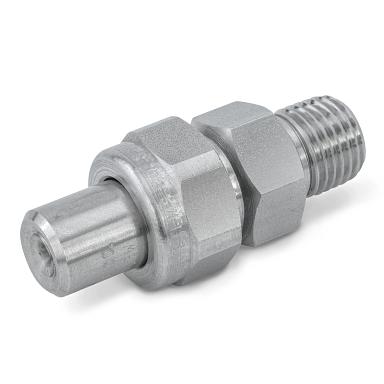

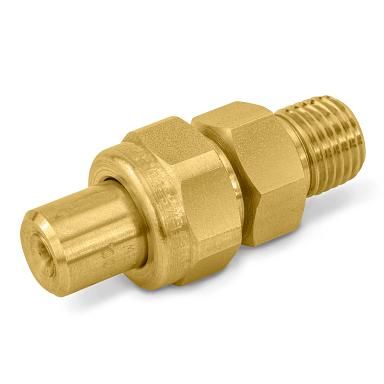

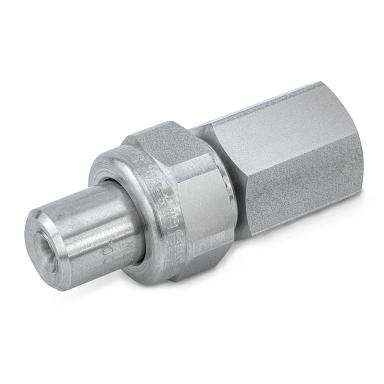

UniJet® Full Cone Nozzle Systems - Wide Angle Spray

General information

Quick-connect nozzles reduce maintenance time –bodies remain on pipe/header
Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced; tips fit on male or female bodies
Solid cone-shaped spray pattern with round impact area or cone-shaped spray pattern with square-like impact area for coverage of rectangular areas or spray zones
Spray angles: Standard – 43° to 91°, Wide – 112° to 120°
Uniform spray distribution from .08 to 7.4 gpm (.3 to 28 lpm)
Operating pressures up to 300 psi (20 bar)

Configure this model

SprayFinder®

Product Type

Model

Materials

Inlet Connection Type

Inlet Connection Size

Capacity Size

UniJet®
