WhirlJet®

WhirlJet hollow cone spray nozzles and are ideal for cooling, gas scrubbing, dust control, sulfur burning and water aerating. They create a circular impact area with standard, wide-angle and extra-wide-angle spray angles. WhirlJet nozzles are ideal for operations requiring atomizing liquids at lower pressures, quick heat transfer or effective airborne drop impingement.

Based on your current criteria, all products belong to this model

Model

WhirlJet® Hollow Cone Nozzles - Cast - One-piece - Slope-bottom

General information

Hollow cone spray pattern with a circular impact area
Large, unobstructed flow passages minimize clogging
Good atomization of liquids at lower pressures – ideal for fluid cooling applications
Removable caps for easy inspection and cleaning on some models
Slope-bottom design models reduce the drilling effect of the fluid vortex in the fluid chamber and premature wear
AX and BX nozzles form smaller drops; ideal for use in air washers and dust suppression applications

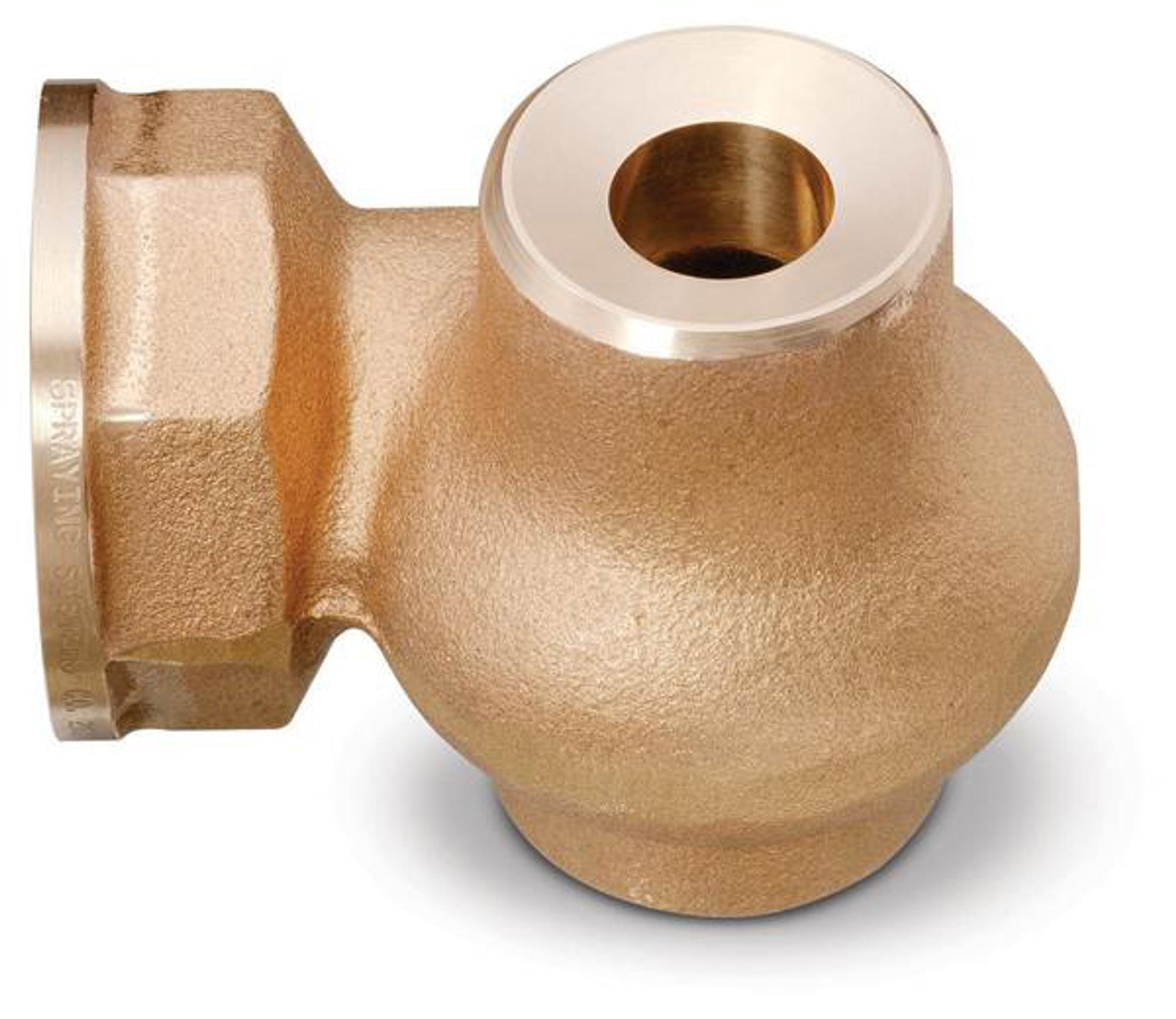

CX, CF, CRC and D nozzles feature higher flow rates; ideal for use in larger, evaporative cooling spray ponds
AP, LAP and LBP nozzles are constructed of polypropylene and feature excellent corrosion resistance at temperatures up to 160°F (71°C); patented center post design provides extended wear life of the nozzle
Standard, wide and extra wide spray angles

Configure this model

SprayFinder®

Model

Materials

Inlet Connection Type

Inlet Connection Size

Design Feature

Capacity Size

Spray Angle at Rated Pressure
