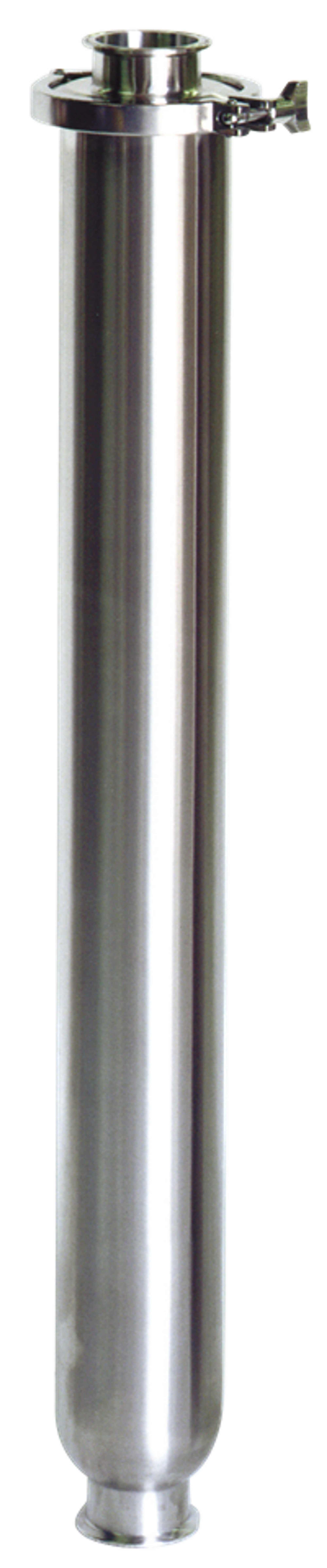

* Model 11200 sanitary strainers can be easily converted to allow flow in either direction* Constructed of type 316L stainless steel* EPDM gasket* PTFE-encapsulated o-ring* Strainer housing maximum pressure: 250 psi @ 70°F (17 bar @ 21°C)* Strainer housing maximum pressure: 150 psi @ 225°F (10 bar @ 107°C)* Two Model 11200 strainers can be mounted in a convenient stand* Optional pressure gauge and valve kit for tandem operation

Sanitary Strainer

Tank Cleaning Accessories

Sanitary Strainer, 11200

Model Specifications

What is the required inlet connection size?

General Information

Description

Specification Summary

Alternative Models
